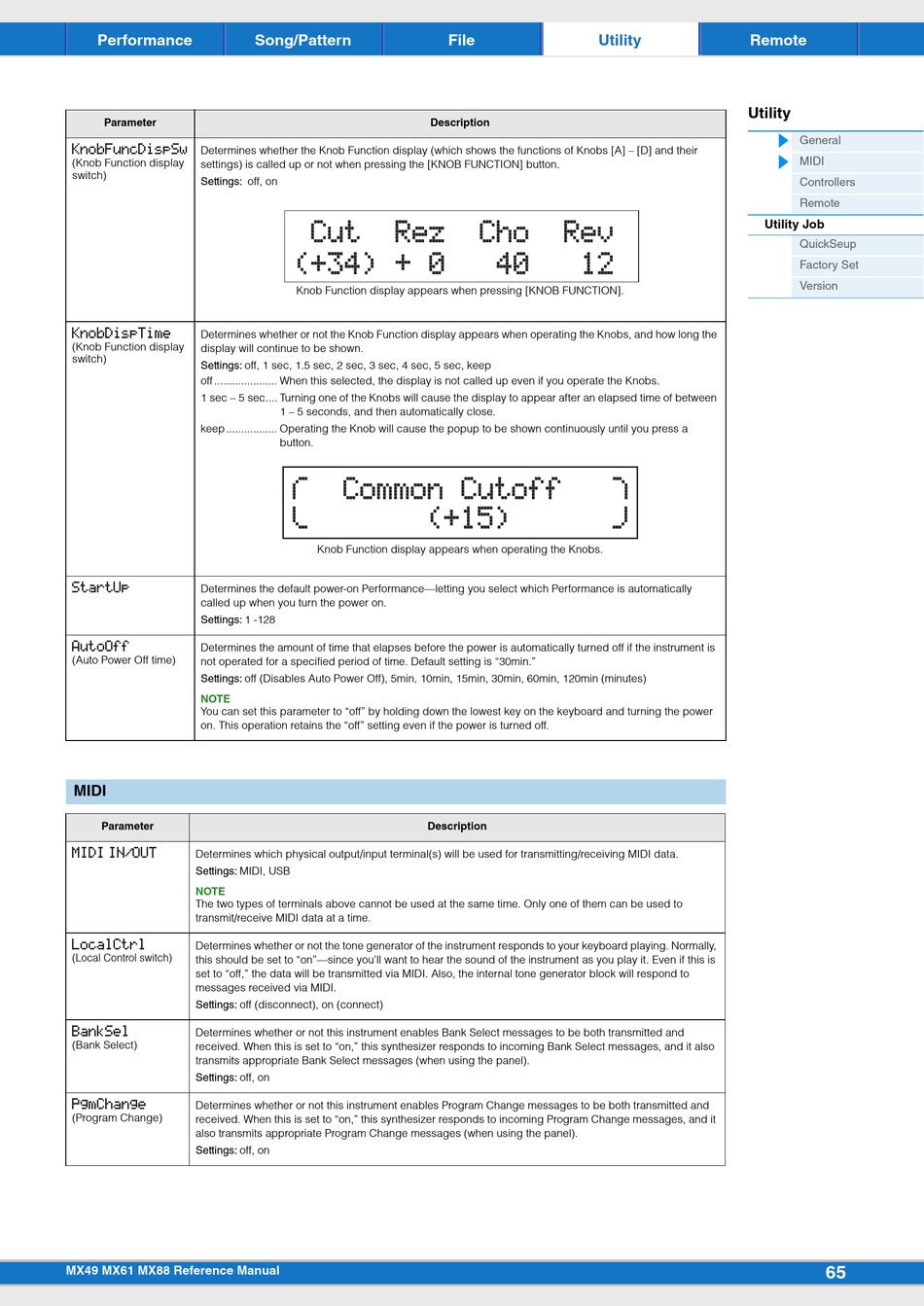

Yamaha MX88 Reference Manual page 65

Performance
Parameter
KnobFuncDispSw
Determines whether the Knob Function display (which shows the functions of Knobs [A] – [D] and their
(Knob Function display
settings) is called up or not when pressing the [KNOB FUNCTION] button.
switch)
Settings: off, on
KnobDispTime
Determines whether or not the Knob Function display appears when operating the Knobs, and how long the
(Knob Function display
display will continue to be shown.
switch)
Settings: off, 1 sec, 1.5 sec, 2 sec, 3 sec, 4 sec, 5 sec, keep
off ..................... When this selected, the display is not called up even if you operate the Knobs.
1 sec – 5 sec.... Turning one of the Knobs will cause the display to appear after an elapsed time of between
keep ................. Operating the Knob will cause the popup to be shown continuously until you press a
StartUp
Determines the default power-on Performance—letting you select which Performance is automatically
called up when you turn the power on.
Settings: 1 -128
AutoOff
Determines the amount of time that elapses before the power is automatically turned off if the instrument is
(Auto Power Off time)
not operated for a specified period of time. Default setting is "30min."
Settings: off (Disables Auto Power Off), 5min, 10min, 15min, 30min, 60min, 120min (minutes)
NOTE
You can set this parameter to "off" by holding down the lowest key on the keyboard and turning the power
on. This operation retains the "off" setting even if the power is turned off.
MIDI
Parameter
MIDI IN/OUT
Determines which physical output/input terminal(s) will be used for transmitting/receiving MIDI data.
Settings: MIDI, USB
NOTE
The two types of terminals above cannot be used at the same time. Only one of them can be used to
transmit/receive MIDI data at a time.
LocalCtrl
Determines whether or not the tone generator of the instrument responds to your keyboard playing. Normally,
(Local Control switch)
this should be set to "on"—since you'll want to hear the sound of the instrument as you play it. Even if this is
set to "off," the data will be transmitted via MIDI. Also, the internal tone generator block will respond to
messages received via MIDI.
Settings: off (disconnect), on (connect)
BankSel
Determines whether or not this instrument enables Bank Select messages to be both transmitted and
(Bank Select)
received. When this is set to "on," this synthesizer responds to incoming Bank Select messages, and it also
transmits appropriate Bank Select messages (when using the panel).
Settings: off, on
PgmChange
Determines whether or not this instrument enables Program Change messages to be both transmitted and
(Program Change)
received. When this is set to "on," this synthesizer responds to incoming Program Change messages, and it
also transmits appropriate Program Change messages (when using the panel).
Settings: off, on
MX49 MX61 MX88 Reference Manual
Son /Pattern
*Cut**Rez**Cho**Rev
+
(+34)*:00***40***12
Knob Function display appears when pressing [KNOB FUNCTION].
1 – 5 seconds, and then automatically close.
button.
q **Common*Cutoff***
e*******(+15)******r
Knob Function display appears when operating the Knobs.
Description
File Utility
Description
Remote
Utility
Utility Job
w
General
MIDI
Controllers
Remote
QuickSeup
Factory Set
Version
65
