Clarion PP-2778L Service Manual

SPECIFICATIONS
Radio section
Tuning system: PLL frequency synthesizer system
Receive range: AM
FM
Intermediate frequency:
AM
FM
Quieting sensitivity: AM
FM
Separation: FM
S/N ratio: AM
FM
Auto tuning stop sensitivity:
AM
FM
CD section
Mechanism: 6-disc CD autochanger
Disc: 12cm disc
Format: CD-DA,MP3,WMA
Separation: More than 60dB
(1kHz,20kHz L.P.F.)
S/N ratio: More than 80dB(1kHz JIS-A)
Distortion: Less than 0.1%(20kHz L.P.F.)
MP3/WMA operations: MP3 ; Sampling rate 8kHz - 48kHz
Bit rate : 8kbps - 320kbps / VBR
WMA;Bit rate;48kbps - 192kbps/VBR
Logical format(File system);
ISO9660 level 1, 2 or JOLIET or Romeo
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
530kHz to 1,710kHz
(10kHz STEP)
87.75MHz(Display:87.7MHz)
to 107.9MHz
(200kHz STEP)
450kHz
10.7MHz
Less than 38dBu
Less than 15dBu
22+5/-7dB(1kHz)
More than 45dB
More than 50dB
42+/-6dBu(600kHz)
39+/-6dBu(1,000/1,400kHz)
32+/-6dBu
- 1 -
Service Manual
NISSAN MOTOR Genuine
6-disc CD/MP3/WMA Autochanger
AM/FM Radio Stereo

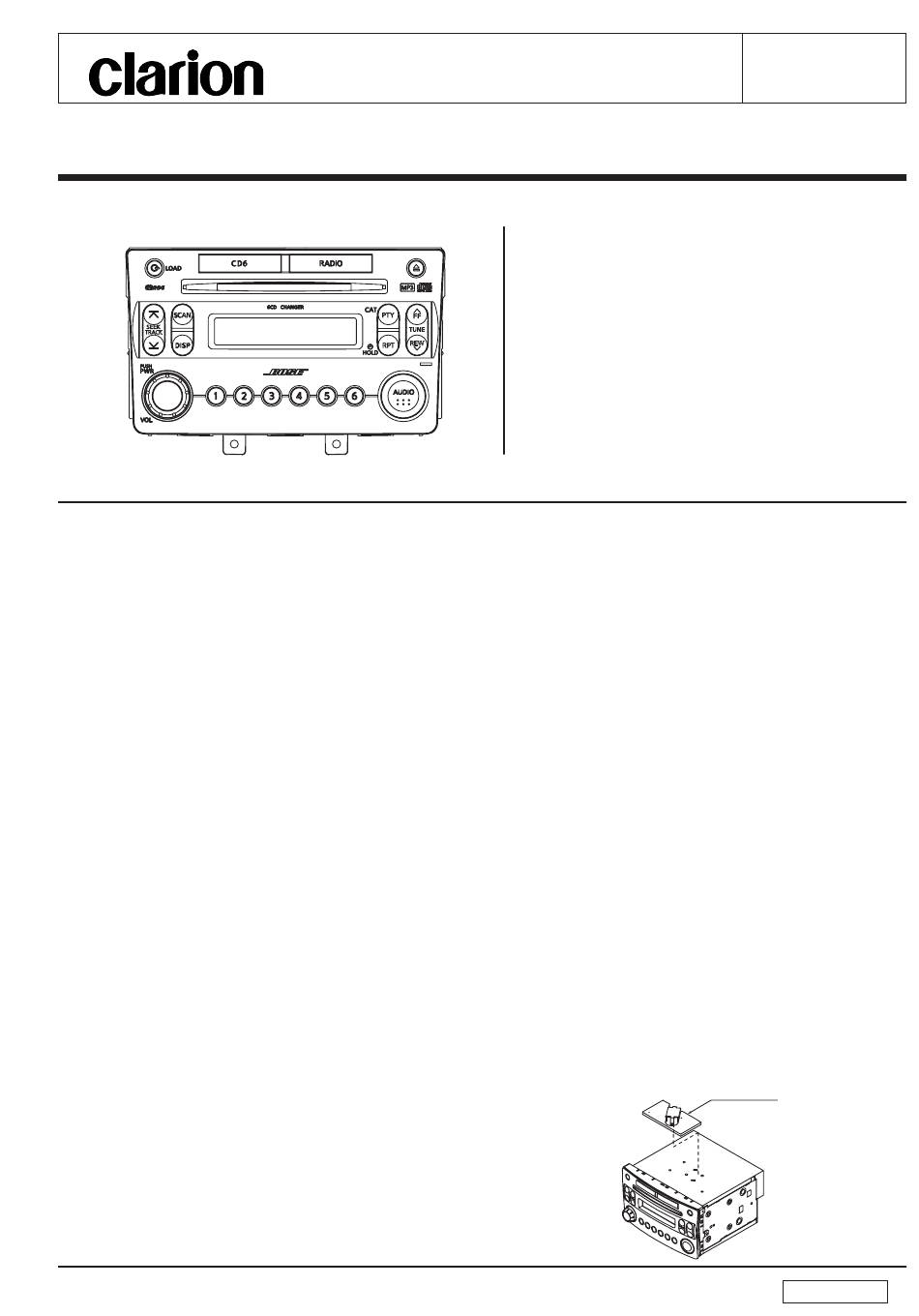

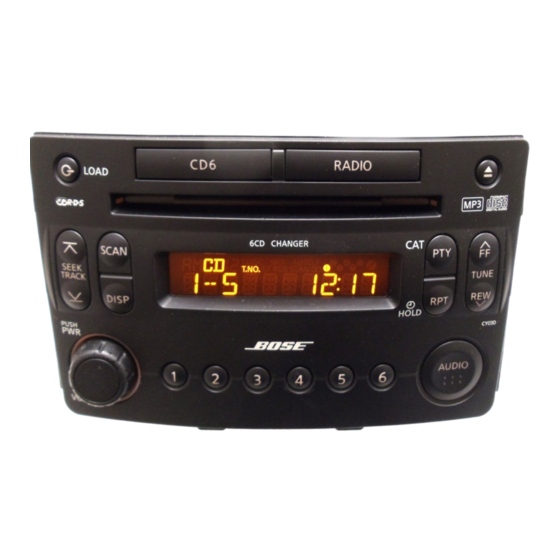

PP-2778L
Model
(Genuine No. 28185 CF50A)
(ID No. CY18B)
General
Load impedance:
Power output:
Power supply voltage: DC13.2V(10.8V to 15.6V)
Back-up consumption: Less than 1mA
Dimensions(mm):
Weight:
COMPONENT
PP-2778L-A
1. Main unit
NOTES
* Specifications and design are subject to change without
notice for further improvement.
* We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair it
by component parts base. Parts which are not mentioned
in service manual are not supplied.
* This product includes technology owned by Microsoft
Corporation and cannot be used or distributed without a
license from MSLGP.
* In case that the main unit or the CD changer mechanism
is transported for repair, the lock pin(966-0653-21) must
be set to fix the mechanism assy.
Published by Service Dept.
298-6307-00 Nov.2005
Printed in Japan
300 ohm/4ch
6V x4
Negative ground
180(W) x106.4(H) x167(D)
Approx. 2.55kg
-----------
Lock pin
966-0653-21
PP-2778L
1
