Summary of Contents for Clarion CLA-SCI

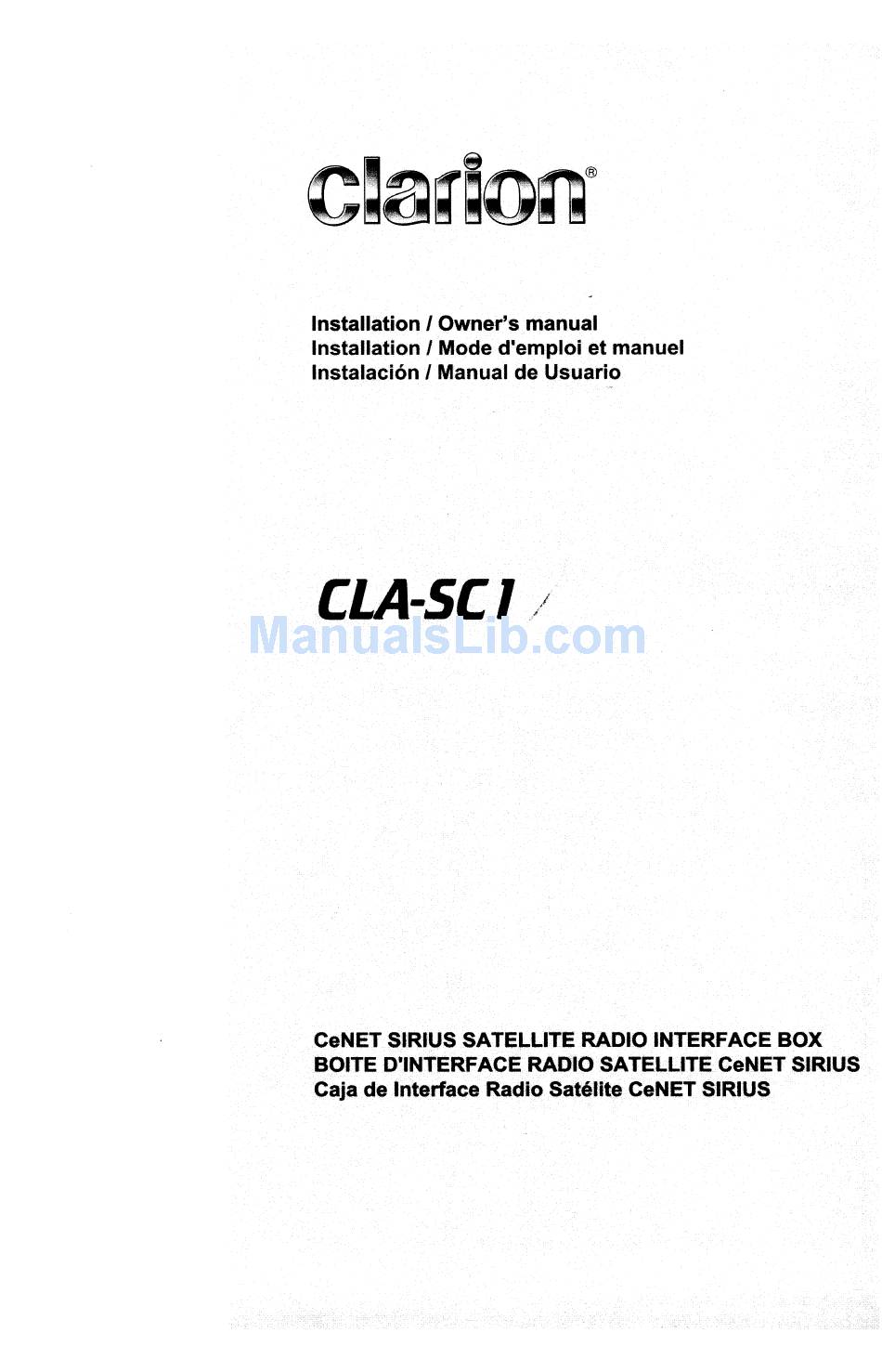

- Page 1 Installation I Owner's manual Installation I Mode d'emploiet manuel Instalaci6n I Manual de .Usuario CLA-SCI,I CeNET SIRIUS SATELLITE RADIO INTERFACE BOX BOlTE D'INTERFACE RADIO SATELLITE CeNET SIRIUS Caja de Interface Radio Satelite CeNET SIRIUS...
-
Page 2: Table Of Contents
English Contents 1. What is included in this package? 2. Introduction 3. System 4. Installation 5. Compatible Models 6. Specifications Clarion 2007 Limited Warranty ~NET SIRIUS" r-rJ-J... - Page 3 • Do not drop, throw, or try to bend the product as rough treatment could damage it. • Do not use accessories other than original Clarion products. Use of non-original accessories may result in loss of performance, damage to the product, fire, electric shock or injury.
- Page 4 English FCC Rules. These limits are designed to provide reasonable protection against harmful interference in vehicle installation . • This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 5: What Is Included In This Package
• CeNET Sirius Satellite Radio Interface Box • CeNET Extension Cable (2.5m) i=31---------0II3J • Mounting Screws x 4 Note! CeNET is an abbreviation of Clarion Entertainment Networks, an original bus system developed by Clarion, which enables high-speed data transfer and high quality sound transmission. -
Page 6: Introduction
English Introduction The Clarion CLA-SC1 is a CeNET SIRIUS SATELLITE Radio Interface that allows you to connect a SIRIUS SATELLITE Radio Tuner to your compatible Clarion radio. For compatible Clarion source units, please refer to Compatible Models on page 8 for further details. -
Page 8: Installation
English 4. Installation There are no moving parts in CLA-SC1. However, caution must be taken to ensure minimum damage to the unit. Do not press, puncture or drop the unit at anytime. Install the unit where there is no direct sunlight, away from vents or high moisture areas and away from other vehicle electronic components. -
Page 9: Compatible Models
DXZ275MP CMD5 M475 DXZ865MP DXZ765MP DXZ665MP DXZ465MP DXZ365MP DXZ265 DFZ675MC CMD4 M455 Refer to your Source Unit owners manual for operation with Satellite Radio. Please consult your Clarion dealer or visit www.clarion.com for more details and for older models' compatibility. -
Page 10: Specifications
English 6. Specifications Power Power Supply Provided by head unit through Clarion CeNET cable Operating Voltage 14.4V DC (10.8 -15.6V allowable) Power Consumption Less than 1 Amp Quiescent Current <4.0mA Physical Interface Tuner 8-pin DIN connector CeNET Connector Two Clarion CeNET compatible jacks... -
Page 11: Clarion 2007 Limited Warranty
5. The sole responsibility of Clarion under this Limited Warranty shall be limited to the repair of the products or replacement of the product, at the sole discretion of Clarion. - Page 12 (1) an compter de la date d'achat originelle. Les produits Clarion notes ci-dessous (**) sont garantis contre tous les defauts de materiaux et de mise en oeuvre pour une periode de deux (2) ans compter de la date d'achat originelle, lorsqu'achetes chez un revendeur Clarion autorise ET lorsque I'installation du produit est effectuee par Ie revendeur.
- Page 13 Co., Clarion Ltd. All Rights Reserved. Copyright © 2007: Clarion Co., Ltd. EE-2167A-A Printed in China Ilmprime en Chine...
