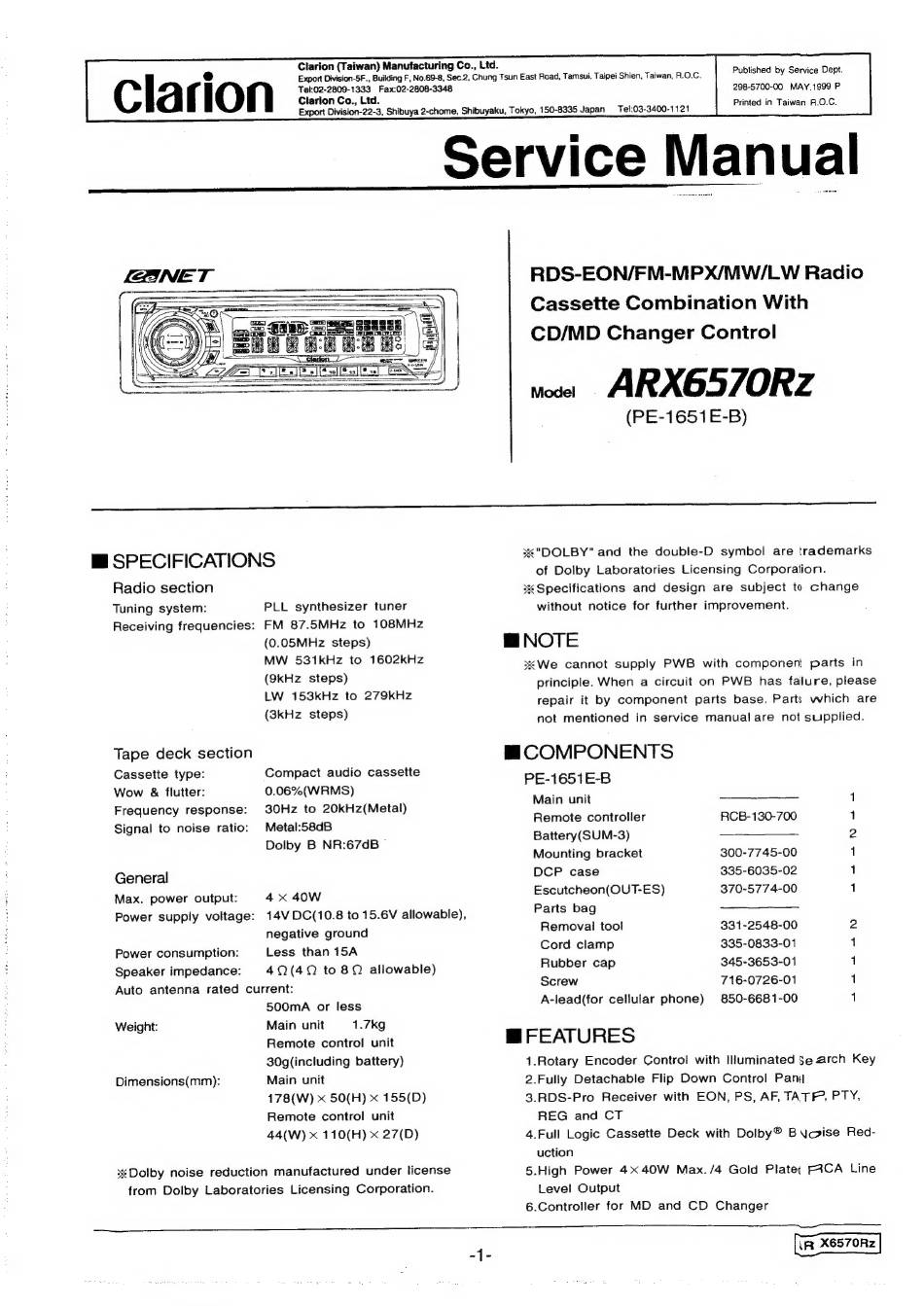

Clarion ARX6570Rz Service Manual

Tel:02-2809-1333 Fax:02-2808-3348
Clarion Co., Ltd.
Clarion
Clarion (Taiwan) Manufacturing Co., Ltd.
Export Division-5F., Building F, No.69-8, Sec.2, Chung Tsun East Road, Tamsui, Taipei Shien, Taiwan, R.O.C.
Published by Service Dept.
298-5700-00 MAY.1999 P
Printed in Taiwan A.O.C.
ual
Tel:03-3400-1121

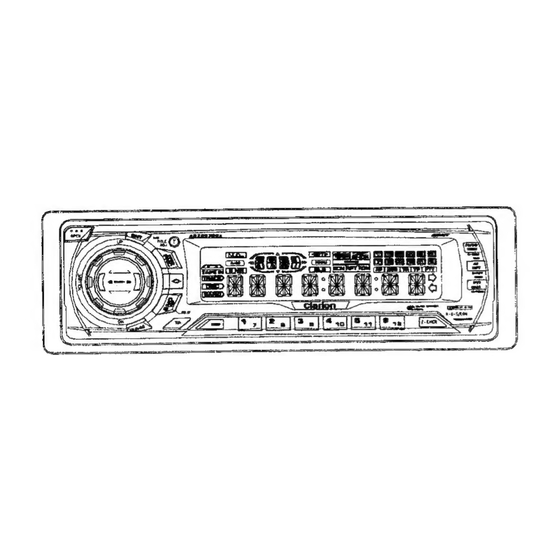

RDS-EON/FM-MPX/MW/LW Radio
Cassette Combination With
CD/MD Changer Control
ARX65/0Rz
(PE-1651E-B)
Model
SPECIFICATIONS
Radio section
Tuning system:
Receiving frequencies:
PLL synthesizer tuner
FM 87.5MHz to 108MHz
(0.05MHz steps)
MW 531kHz to 1602kHz
(9kHz steps)
LW 153kHz to 279kHz
(3kHz steps)
Tape deck section
Cassette type: Compact audio cassette
Wow & flutter: 0.06%(WRMS)
Frequency
response:
30Hz to 20kHz(Metal)
Signal to noise ratio: Metal:58dB
Dolby B NR:67dB —
General
Max. power output:
Power supply voltage:
4x 40W
14V DC(10.8 to 15.6V allowable),
negative ground
Power consumption: Less than 15A
Speaker impedance: 42(4Q to 8Q allowable)
Auto antenna rated current:
500mA or less
Main unit 1.7kg
Remote control unit
30g(including battery)
Main unit
178(W) x 50(H) x 155(D)
Remote control unit
44(W) x 110(H) x 27(D)
Weight:
Dimensions(mm):
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol are trademarks
of Dolby Laboratories Licensing Corporation.
%* Specifications and design are subject to change
without notice for further improvement.
M NOTE
We cannot supply PWB with component parts in
principle. When a circuit on PWB has failure, please
repair it by component parts base. Parts which are
not mentioned in service manual are not supplied.
@ COMPONENTS
PE-1651E-B
Main unit 1
Remote controller RCB-130-700 1
Battery(SUM-3) 2
Mounting bracket 300-7745-00 1
DCP case 335-6035-02 1
Escutcheon(OUT-ES) 370-5774-00 1
Parts bag
Removal tool 331-2548-00 2
Cord clamp 335-0833-01 1
Rubber cap 345-3653-01 1
Screw 716-0726-01 1
A-lead(for cellular phone) 850-6681-00 1
FEATURES
1.Rotary Encoder Control with Illuminated $e arch Key
2.Fully Detachable Flip Down Control Pani
3.RDS-Pro Receiver with EON, PS, AF, TATF, PTY,
REG and CT
6.Controller for MD and CD Changer
\R X6570Rz
