Clarion JC-215R-51 Service Manual

■ SPECIFICATIONS
General
Power supply voltage:13.8V DC
Ground: Negative
Consumption current: 2.0A or below
(at transmission)
Back-up consumption current:
1.0mA or below
Frequency range: 26.965MHz to 27.405MHz(40ch)
ch MHz
1 26.965
2 26.975
3 26.985
4 27.005
5 27.015
6 27.025
7 27.035
8 27.055
9 27.065
10 27.075
11 27.085
12 27.105
13 27.115
14 27.125
15 27.135
16 27.155
17 27.165
18 27.175
19 27.185
20 27.205
Clarion Co., Ltd.
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Service Dept.- 50 kamitoda,Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996
ch MHz
21 27.215
22 27.225
23 27.255
24 27.235
25 27.245
26 27.265
27 27.275
28 27.285
29 27.295
30 27.305
31 27.315
32 27.325
33 27.335
34 27.345
35 27.355
36 27.365
37 27.375
38 27.385
39
27.395
40 27.405
- 1 -
Tel: 03-3400-1121
Service Manual
YAMAHA Motorcycle Genuine
CB Radio
JC-215R-51
Model
(Genuine No. 4XY-88182-00)
Frequency tolerance: 0.005
Radio wave type:
Antenna impedace:
Dimensions(mm):
Weight:
Transmitter section
Power output:
Transmission S/N:
Modulation sensitivity:
Receiver section
Practical sensitivity:
S/N:
Distortion factor:
Squelch sensitivity:
Audio output level:
NOTE
■
※ We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please re-
pair it by component parts base. Parts which are not
mentioned in service manual are not supplied.
※ Specification and design are subject to change with-
out notice for further improvement.

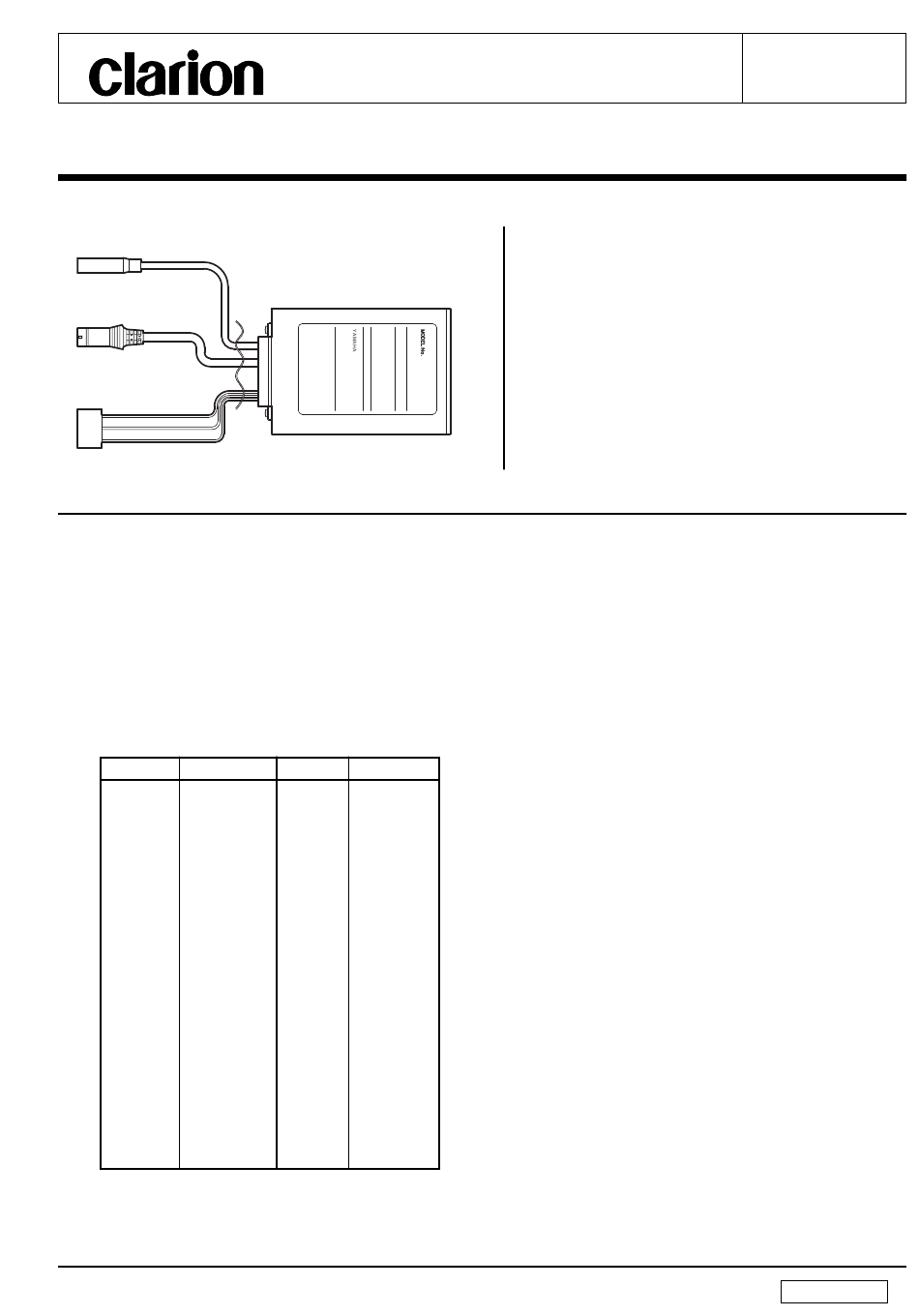

COMPONENT
■
JC-215R-51
Main unit
Published by Service Dept.
298-5713-00 Jan.1999 P
Printed in Japan
％ or less
A3E
50 Ω
105(W) × 35(H) × 150(D)
620g
4.0W
40dB or higher
− 40dBV ± 3dB
6dB μ V or below(S/N 10dB)
35dB or higher
8 or below
％
Thershold;8dB V or below
μ
Tight;25dB V or higher
μ
0.5V or higher
−−−−−
JC-215R-51
1
