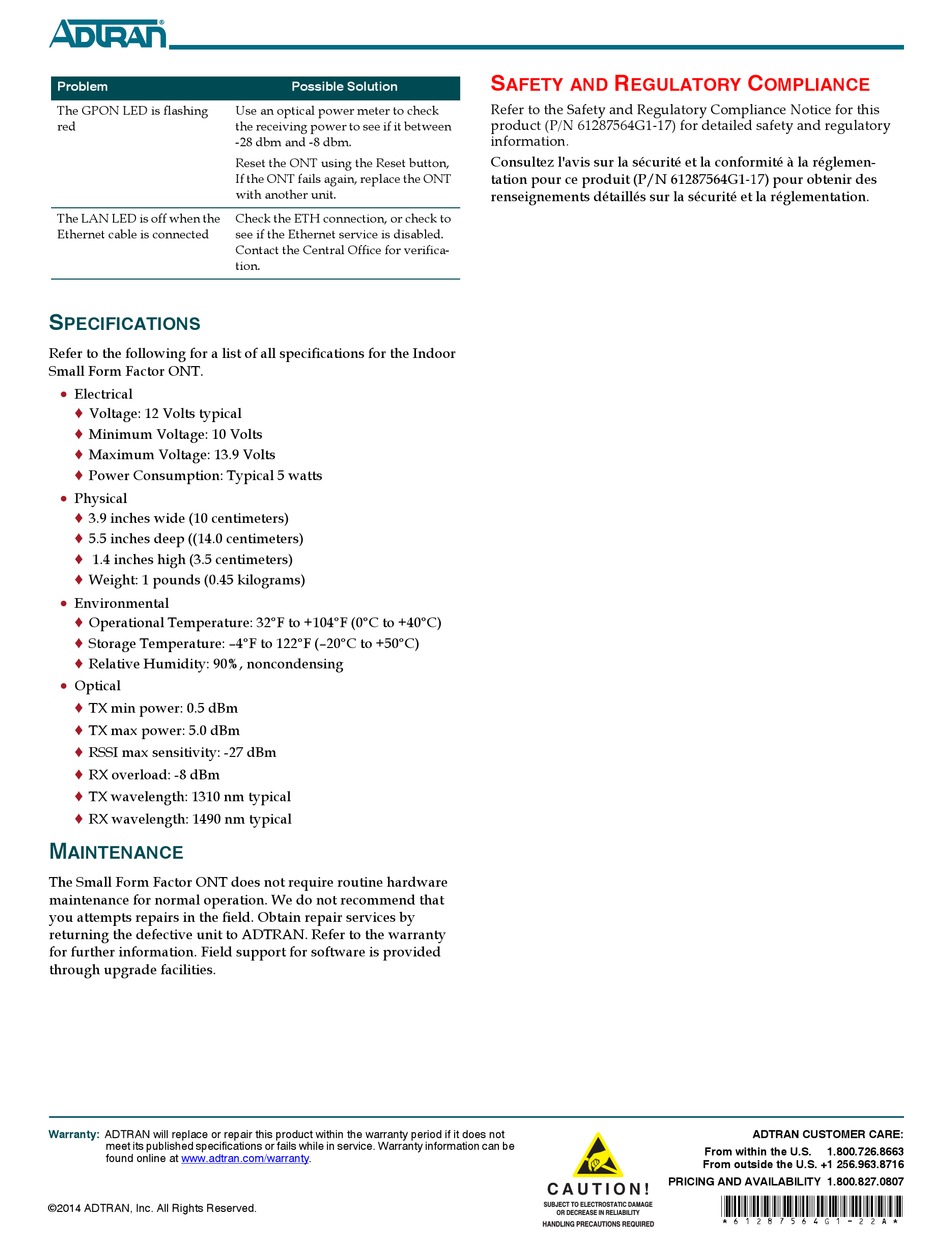

ADTRAN Total Access 301 Manual page 4

Problem
The GPON LED is flashing
red
The LAN LED is off when the
Ethernet cable is connected
S
PECIFICATIONS
Refer to the following for a list of all specifications for the Indoor
Small Form Factor ONT.

Electrical
o Voltage: 12 Volts typical
o
Minimum Voltage: 10 Volts
o Maximum Voltage: 13.9 Volts
o
Power Consumption: Typical 5 watts

Physical
o
3.9 inches wide (10 centimeters)
o 5.5 inches deep ((14.0 centimeters)
o
1.4 inches high (3.5 centimeters)
o Weight: 1 pounds (0.45 kilograms)

Environmental
o Operational Temperature: 32°F to +104°F (0°C to +40°C)
o
Storage Temperature: –4°F to 122°F (–20°C to +50°C)
o Relative Humidity: 90%, noncondensing

Optical
o
TX min power: 0.5 dBm
o
TX max power: 5.0 dBm
o RSSI max sensitivity: -27 dBm
o RX overload: -8 dBm
o TX wavelength: 1310 nm typical
o
RX wavelength: 1490 nm typical
M
AINTENANCE
The Small Form Factor ONT does not require routine hardware
maintenance for normal operation. We do not recommend that
you attempts repairs in the field. Obtain repair services by
returning the defective unit to ADTRAN. Refer to the warranty
for further information. Field support for software is provided
through upgrade facilities.
Warranty: ADTRAN will replace or repair this product within the warranty period if it does not
meet its published specifications or fails while in service. Warranty information can be
found online at www.adtran.com/warranty.
©2014 ADTRAN, Inc. All Rights Reserved.
Possible Solution
Use an optical power meter to check
the receiving power to see if it between
-28 dbm and -8 dbm.
Reset the ONT using the Reset button,
If the ONT fails again, replace the ONT
with another unit.
Check the ETH connection, or check to
see if the Ethernet service is disabled.
Contact the Central Office for verifica-
tion.
S R
AFETY AND EGULATORY
Refer to the Safety and Regulatory Compliance Notice for this
product (P/N 61287564G1‐17) for detailed safety and regulatory
information.
Consultez l'avis sur la sécurité et la conformité à la réglemen-
tation pour ce produit (P/N 61287564G1‐17) pour obtenir des
renseignements détaillés sur la sécurité et la réglementation.
PRICING AND AVAILABILITY 1.800.827.0807
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY
HANDLING PRECAUTIONS REQUIRED
C
OMPLIANCE
ADTRAN CUSTOMER CARE:
From within the U.S. 1.800.726.8663
From outside the U.S. +1 256.963.8716
*61287564G1-22A*
