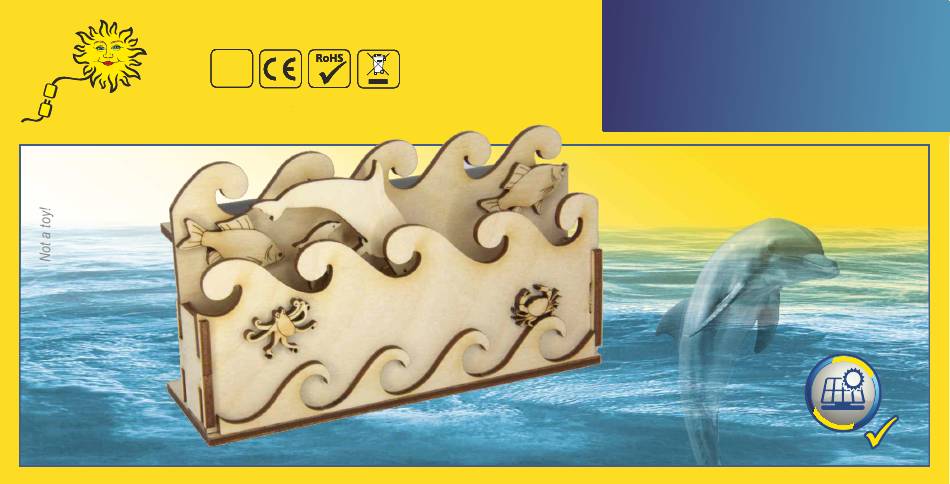

Item No.: 86300
This way you help the
environment: Please return
the parts to a suitably
certified supplier at the end
of their useful life!

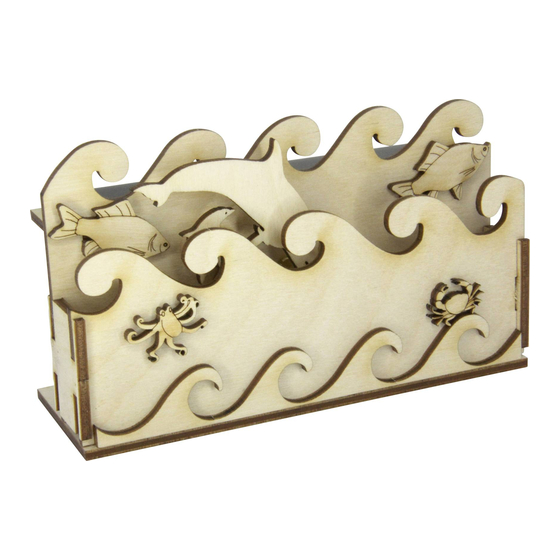

Solar dolphin
Wooden construction kit, with gearbox.
Dolphins "leap" when exposed to sunlight
SOLAR
Advertisement
Related Manuals for Sol-Expert Solar dolphin 86300
Summary of Contents for Sol-Expert Solar dolphin 86300
- Page 1 Solar dolphin This way you help the environment: Please return the parts to a suitably Wooden construction kit, with gearbox. certified supplier at the end Dolphins "leap" when exposed to sunlight SOL-EXPERT SOL-EXPERT group group group group of their useful life! Item No.: 86300...
- Page 2 ASSEMBLY INSTRUCTIONS Attention: Make sure the sides are correctly positioned! What you will need: Wave direction Wave direction ü Front Back M3 X 10 mm Push in the gearbox from the back of the wave panel and fasten the screws and nuts with a small screwdriver. Front Back Motor...
- Page 3 What you will need: ü M3 X 5 mm Correct direction of rotation Wrong direction of rotation Screw the dolphin wheel (position it as shown in the picture) to the gearbox axle A with the M3 x 5 mm screw using the screwdriver. Secure it in place with the wood spanner to prevent it from turning.
- Page 4 Apply some glue to the solar cell... Feed the motor cable through the solar cell support What you will need: and connect it to the solar cell. Press the button, push in the cable, release the button - job done. Red cable to "-", black cable to "+".
- Page 5 What you will need: Attention: Make sure the sides are correctly positioned! Wave direction Wave direction ü Stick on the fish with a little glue. Then apply the front panel with glue and glue it in place.
- Page 6 What you will need: Apply 4 x glue to the recesses..and then glue in the two side parts...
- Page 7 A solar module generates maximum What you will need: power when placed in direct sunlight. In the absence of direct sunlight, the power generated is only very low. It is therefore recom- mended that this model be placed in a sunny location. Apply adhesive ( ), turn the part over and glue it to the front panel.
- Page 8 Holzbausatz::1361.html?languag kit::1361.html?language=nl e=de Kits from SOL-EXPERT that have you wanting more: Detailed instructions, high accuracy component fit, high quality standard! SOL-EXPERT group, C.Repky Keep company address. Not suitable Mehlisstrasse 19 - D-88255 Baindt for children under 3 years! - Choking Tel.: +49 (0)7502 - 94115-0 - Fax: +49 (0)7502 - 94115-99...
