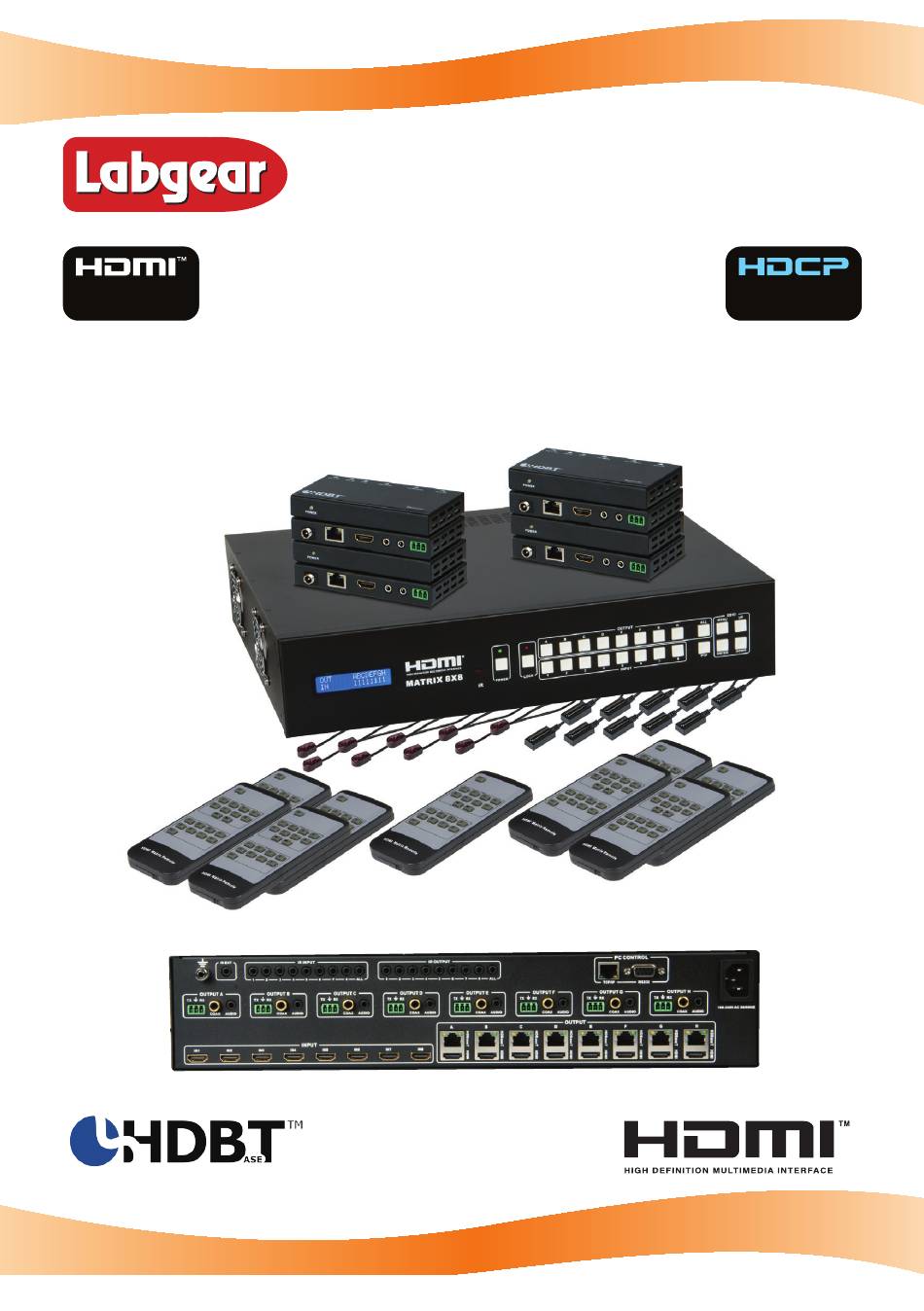

- Page 1 HD2-MX8X8-70K 4k HDMI 8 Way Matrix Kit with HDMI output & HDBaseT V2.2 V2.0 output over CAT5E/CAT6 User Guide...
-
Page 2: Table Of Contents
Contents General Safety ........................................2 Introduction ........................................2 Box contents ........................................3 Specifications ........................................3 Panel functions ......................................3-5 EDID ............................................4 Remote control functions....................................5 IR control system ......................................6 HDBT receiver ........................................7 Connection and operation....................................8 Bi-directional RS232 control function ...............................9 Global IR function ......................................10 General Safety •... -
Page 3: Box Contents
Box Contents HDBaseT 8 x 8 HDMI matrix AC power cord Matrix mounting kit 4k HDBaseT receivers 10x IR receivers and cable s IR emitters and cable s Receiver remote controls Matrix remote controls RS232 cable User guide Specifications Video Bandwidth 297MHz (10.2Gbps) Supported Video 480i, 576i, 480p, 576p, 720p, 1080i, 1080p 24/30/50/60, 4K x... -
Page 4: Edid
3. OUTPUT/INPUT: Press the OUTPUT and INPUT button to select the output corresponding input. For example: Press OUTPUT ALL>INPUT 1, The OUTPUT A/B/C/D/E/F/G/H will be set to INPUT 1. Press PTP (peer to peer) button, The OUTPUT A/B/C/D/E/F/G/H will correspond to INPUT 1/2/3/4/5/6/7/8. 4. -
Page 5: Remote Control Functions
Back Panel 1. GND: Connect to Earth the Housing. 2. IR Matrix, IR EXT: if the panel sensor is obstructed or the unit is installed in a closed area out of infrared line of sight, one of the IR RX receivers supplied can be inserted into the IR EXT port at the rear to extend the IR sensor range and enable local control of the matrix. -
Page 6: Ir Control System
IR Control system (IR Back channel to Matrix and Source Devices) As well as HD distribution you can also control the matrix and source devices from display locations using the IR back channel function. As the IR channels are two-way the displays can also be controlled from the matrix location. -
Page 7: Hdbt Receiver
HDBT Receiver Œ — ˜ ™ š › œ ” “ 1. POWER: LED indicates receiver is powered. 2. DC 24V: Alternative power supply socket should not be required as receiver is powered by PoE from the matrix. 3. HDBaseT IN: Standard HDBaseT signal input port. Connect HDBaseT transmitter with a UTP cable. 4. -
Page 8: Connection And Operation
Connection and operation 1. Connect up to 8 sources such as Blu-Ray Players, games consoles, Cable or Satellite Receivers, PVRs etc. to the HDMI inputs on the unit. Do not hotplug! Connect and disconnect cables carefully with the power switch off. Connecting and disconnecting while the unit is powered can result in damage to circuitry. -
Page 9: Bidirectional Rs232 Control Function
Bidirectional RS232 control function The matrix system provides 8 channels with RS232 pass through functions, which can be used to control attached equipment. In example 1 below, the PC or control system connected to the matrix unit sends RS-232 signals to control the projector via the HDBT receiver unit. -
Page 10: Global Ir Function
GLOBAL IR function IR All Input Port Using an IR receiver connected to the IR All Input Port and IR emitters connected to the HDBT receivers you can control all displays simultaneously as shown in the example below. IR All Output Port Using an IR emitter connected to the IR All Output Port and IR receivers connected to the HDBT receivers you can control a source device (e.g. - Page 11 If you experience problems setting up your matrix or have any other queries, please call the Labgear Customer Care Line: 08457 573 479 - (Local Rate UK only). Alternatively, please visit our website at www.labgear.co.uk Waste electrical and electronic products should not be disposed of with household waste.
- Page 12 © Labgear 2017. v1.1 www.labgear.co.uk...
