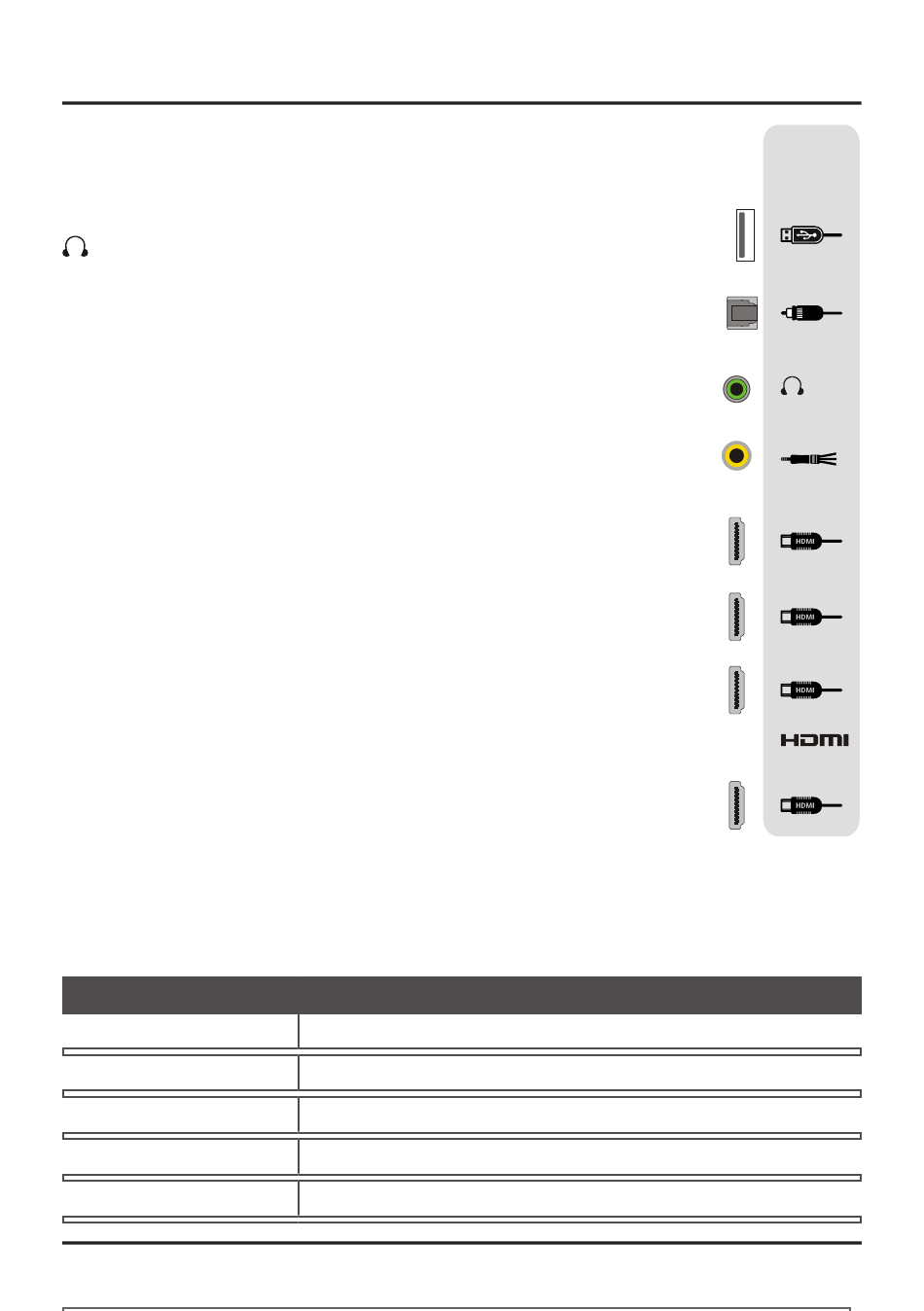

Choose Your Connections - TCL LE50FHDE5510C User Manual

USB
Allows you to connect a compatible mass storage device.
SPDIF(optical) - DIGITAL AUDIO OUT
Use a digital optical cable to connect your TV to a compatible audio receiver.
(HEADPHONE)
Allow you to connect headphones to listen to the sound coming from the TV.
AV 1 IN adapter
Lets you connect a component that has composite video jacks, such as a VCR or
DVD player. (Note that you must connect an Audio/Video adpter cable with three color
jacks to this adapter jack first, Yellow jack for VIDEO connection, red and white jacks
for R AUDIO and L AUDIO connection. For mono audio sources, be sure to use the
L AUDIO INPUT.)
HDMI 2 IN / HDMI 3 IN / HDMI 4 IN
Lets you connect a component, such as a digital cable box, with an HDMI output
for the best picture quality.
HDMI 1/DVI IN
(High-Definition Multimedia Interface/Digital Visual Interface) Provides an
uncompressed digital connection that carries both video and audio data by way
of an integrated mini-plug cable. Since HDMI technology is based on Digital
Visual Interface (DVI), the jack on the back of your TV is also compatible with DVI
components.
Note: If using a DVI component, remember to connect the audio cable because the
DVI cable carries only the picture signal, not the sound.

Choose Your Connections

There are several ways to connect components, such as BD player, DVD players and set-top boxes, to your
TV.
Note: No cables are supplied with this unit. Please purchase the necessary cables. A high-speed HDMI cable
is recommended for better compatibility.
Input
Antenna/Cable
Composite Video
Component Video
HDMI
PC
Signal Compatability
480i, 480p, 720p, 1080i (NTSC, ATSC, and QAM formats)
480i
480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz
480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz
VGA SVGA XGA
7
Connections and Setup
USB
SPDIF
(optical)
AV 1 IN
adapter
HDMI 1
/DVI IN
HDMI 2 IN
HDMI 3 IN
HDMI 4 IN
