For use with models : LE50UHDE5692G
visit our website at www.tclusa.com
or call 1-877-300-8837 (for mainland 48 States),
or 1-877-800-1269 (for AK, HI, and Puerto Rico).
Figures and illustrations in this User's Guide are
actual product appearance. Product design and
Need assistance?
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TCL LE50UHDE5692G
Summary of Contents for TCL LE50UHDE5692G

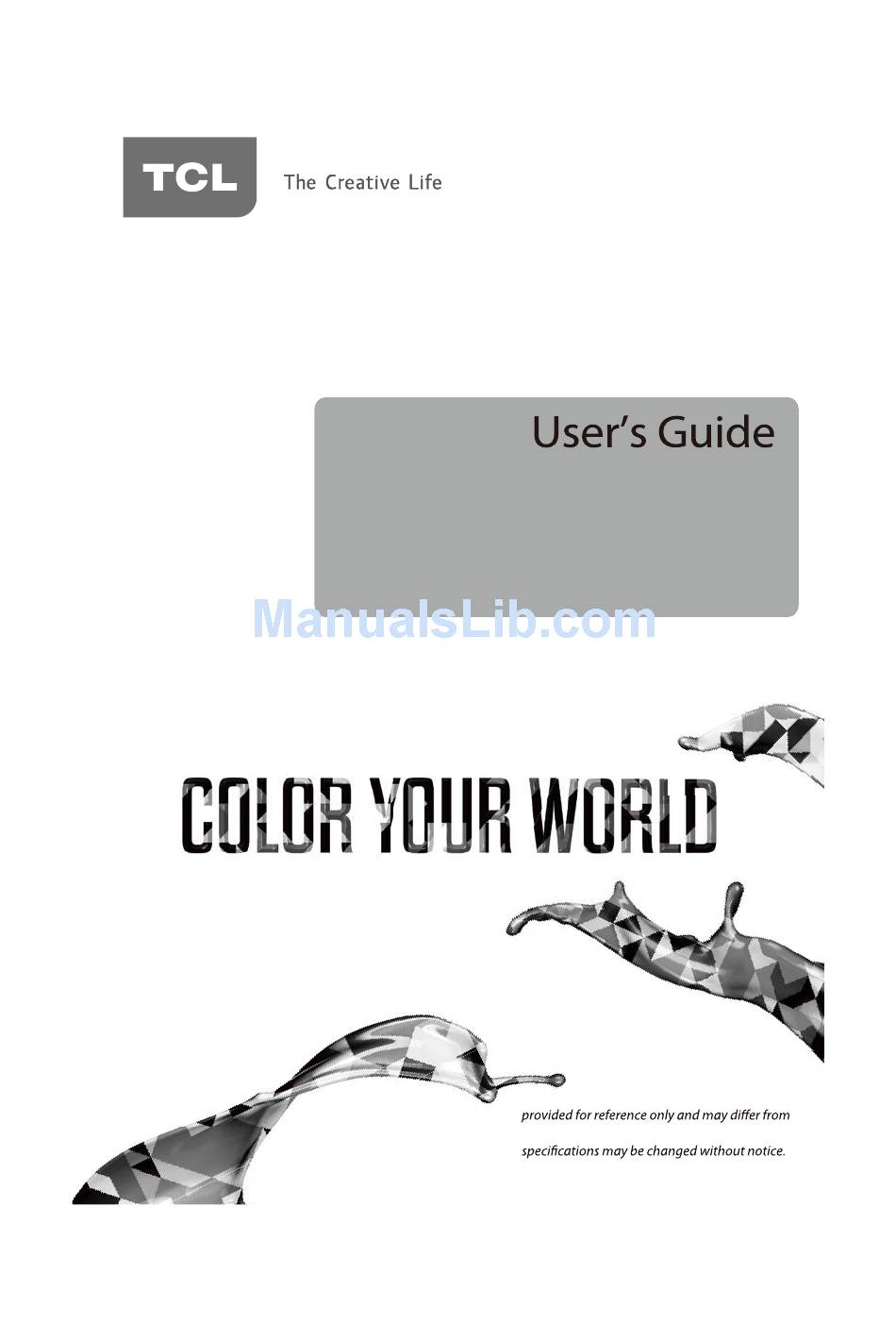

- Page 1 For use with models : LE50UHDE5692G Need assistance? visit our website at www.tclusa.com or call 1-877-300-8837 (for mainland 48 States), or 1-877-800-1269 (for AK, HI, and Puerto Rico). Figures and illustrations in this User’s Guide are actual product appearance. Product design and...
- Page 2 Important Information WARNING WARNING WARNING Cable TV Installer: Important: Product Registration Product Information Model No. ______________________ Serial No._____________________________________ Purchase Date __________________ Dealer/Address/Phone__________________________...
- Page 3 Important Safety Instructions A NT E N NA L E A D IN W I R E G R O U N D C L AM P AN T E NN A DIS CH A R G E U N IT ( NE C SE C TI O N 81 0- 20 ) G R O U ND IN G CO N DU C TO R S ( N E C S EC T IO N 8 10- 2 1) G R O U N D C L AM P S...
- Page 4 Table of Contents Chapter 1 - Connections and Setup Chapter 4 - Options Menu Chapter 5 - Other Information Chapter 2 - Home Page Chapter 3 - System Settings Menu...
- Page 5 Chapter 1 Connections and Setup Before Initial Setup Protect Against Power Surges Safety Information Avoid Audio Interference Avoid Direct Light Check Supplied Parts Replacing your remote If you need to replace your remote, visit www.tclusa.com. Shipping and handling fee, and the appropriate sales tax, will be charged upon ordering.
- Page 6 Connections and Setup Attaching Your TV to the Base Stand Note: Keep the screws and plastic parts away from grease and organic solvents to avoid damage, Especially during the assembly process. Mounting Your TV to the Wall Purchase a VESA 400 x 200, screws M6×12. Notes: Follow the directions included with the wall mount to mount the TV to the wall.
- Page 7 Connections and Setup Buttons on TV CH+/- VOL+/- (HOME (POWER Explanation of Jacks on TV SPDIF ANT/CABLE Ethernet AV IN Adapter (Optical) /SAT IN Ethernet: SPDIF (Optical) - DIGITAL AUDIO OUT: HDMI 1 IN (4K/DVI IN) ANT/CABLE/SAT IN: AV IN Adapter: HDMI 2 IN (4K/MHL) HDMI 1 IN (4K/DVI IN):...
- Page 8 Connections and Setup Choose Your Connection HDMI (Recommended Connection) Use the HDMI port to connect to a cable or satellite box, Blu-ray player, game console, and other devices. USB conection Connect USB storage devices to the USB port to enjoy photos, videos, and music.
- Page 9 Connections and Setup Choose Your Connections Note: speed HDMI cable is recommended for better compatibility. Input Signal Compatability 480i, 480p, 720p, 1080i (NTSC, ATSC, and QAM formats) 480i 480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz, 3840×2160p VGA SVGA XGA SXGA WXGA Notes: Connecting MHL-compatible Device HDMI 2 (MHL) Note:...
- Page 10 Connections and Setup Network Connection Note: following are just the usual ways to connect your TV to the wired or wireless network. The connection method your Internet Service Provider. Connecting to a wired network Ethernet port Ethernet port Network Setup Router Modem Modem...
- Page 11 Connections and Setup Wireless Network Setup Wi-Fi Switch Wi-Fi networks Select a Wi-Fi network Add Wi-Fi network Status...
- Page 12 Connections and Setup Remote Control Functions (POWER INPUT VOL+/- CH+/- MUTE AMAZON APP1 VUDU M-GO YouTube SLEEP OK(Enter) MENU HOME BACK VOICE SEARCH GUIDE MOUSE INFO EXIT Note: MOUSE VOICE...
- Page 13 Connections and Setup Obtain the Signal HDMI or ANT/CABLE/SAT HDMI ANT/CABLE/ SAT IN ANT/CABLE Outdoor or indoor Antenna /SAT IN HDMI RF Coaxial Wire Cable Box, (75 ohm) ( Wall Outlet) Switching On Switching Off...
- Page 14 Connections and Setup Initial Setup Initial Setup Step 1 Select Language Step 2 Pairing remote controller Step 3 Select Environment Note: if you select [Retail] mode, a screen menu will ask you, if you want to go back to the previous menu to select [Home] mode, select [Cancel] and press OK.
- Page 15 Connections and Setup Step 6 Enter ZIP code Step 7 Set up TV service That's it System Quick Tutorial Home Google Play Store TV & Movies Voice Search Menu...
- Page 16 Home Page Home Page Map Status (Account Name/Network Status/Notification/Time) Search (Voice or text) TV Window All Apps/PlayStore (Current TV Screen /TCL Store /Source/Settings/USB) Recommendation Area for Advertisement or Recommendation video, etc. (Shortcut for application) My Favorite (Customize My favorite) Status...
- Page 17 Home Page Play Store TCL Store To move applications Using Search Typing Search To remove an application Voice Search Options for Home Page To add an application Startup Application Changing the Wallpaper USB Function Customize My Favorite To replace applications...
- Page 18 Home Page Some USB keys and USB products like digital cameras or mobile phones are not fully compatible with USB 2.0 standard so it may not work with the TV multimedia player. Playing Music Displaying Picture Playing Video...
- Page 19 Chapter 3 System Settings Menu Note: some options may be not available for certain signal sources. Edit Input Name Video Input Input List Edit Channel List HD Channels Disconnect Device Change Channel Lineup Note: Select Video Input...
- Page 20 System Settings Menu in Tuner, such as HDMI or AV, only [Disconnect Device] can be selectable. Applications Select available source Unknown sources, Manage applications. Unknown Sources Channel Setting Manage Applications Network Downloaded Running Picture & Sound Privacy & Safety Downloaded Reporting - Personal Data Running Safety - Parental Control...
- Page 21 System Settings Menu Use 24-hour format Set date Storage Available Set time Total Language & Input Devices Select date format Current Keyboard Select time zone Timer-Sleep timer Pointer Speed Set location Environment Selection Select Language About Voice Search and Voice Recognition Product/Service info Language System updates...
- Page 22 Chapter 4 Options Menu Favorite Channels Options Channel Setting, Change Input, Picture, Sound, Closed Captions, Parental Control Note: some options may be not available for certain signal sources. Change Input Picture Menu Channel Setting Auto Tuning Picture Preset Backlight Brightness Connections and Setup >...
- Page 23 Options Menu Sound Mode SPDIF Type Note: when [Energy Saving] is set to [Off], the SPDIF Auto Volume Control MEMC Advanced Settings Note: The MTS option is only available for analog Film Mode channels. Audio Language Dynamic Contrast Black Stretch Flesh Tone Note: Gamma...
- Page 24 Options Menu Digital Closed Caption Type Enter Password Digital Closed Caption Style Caption Style - Font Size - Font Style - Input Block FG Color - V-Chip Setting FG Opacity - BG Color - Rating Enable BG Opacity - Font Edge Style - Block Unrated TV Parental Control US V-Chip...
- Page 25 Options Menu TV–PG TV–14 RRT Setting: TV–MA Reset RRT: Change V-Chip Password PG-13 Clear All NC-17 Canada V-Chip Canadian English Ratings: Canadian French Ratings:...
- Page 26 Chapter 5 Other Information Frequently Asked Questions (FAQs)
- Page 27 Other Information Troubleshooting TV Problems The TV won’t turn on. There is no picture and no sound but the TV is on. INPUT ANT/CABLE/SAT IN The screen is blank. The TV turns off unexpectedly.
- Page 28 Other Information You can’t select a certain channel. Parental Control TV/VCR The stereo reception is noisy. A black box appears on the screen. You are having problems with the HDMI Connection. HDMI 1 HDMI INFO Channel Banner HDMI 1 HDMI The remote control doesn’t work.
- Page 29 Other Information Care and Cleaning IMPORTANT:...
- Page 30 TTE Technology, Inc. (“TTE”) Limited Warranty What your warranty covers: New LCD/LED Televisions (Non-Commercial Use) For how long after your purchase: New LCD/LED Televisions (Commercial Use) For how long after your purchase: What we will do: How to get service: What your warranty does not cover:...
- Page 31 Product Registration: LIMITATION OF WARRANTY THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. NO VERBAL OR WRITTEN INFORMATION GIVEN BY TTE TECHNOLOGY, INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE OR MODIFY THE SCOPE OF THIS WARRANTY.
- Page 32 Third party services may be changed, suspended, removed, terminated or interrupted, or access may be disabled at any time, without notice, and TCL makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which TCL has no control.
- Page 33 This product incorporates HDMI technology. trademarks or registered trademarks of HDMI Licensing LLC. Plug in an MHL-compatible mobile device to view your favorite content and charge your device at the same time. ENERGY STAR is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency (EPA).
