VESA Mount for Your Monitor

This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface
standard which defi nes a physical mounting interface for fl at panel monitors, and
corresponding with the standards of fl at panel monitor mounting devices, such as wall and
table arms. The VESA mounting interface is located on the back of your monitor.
To mount the monitor on a UL certifi ed swing arm or other mounting fi xture, follow the
instructions included with the mounting fi xture to be used.

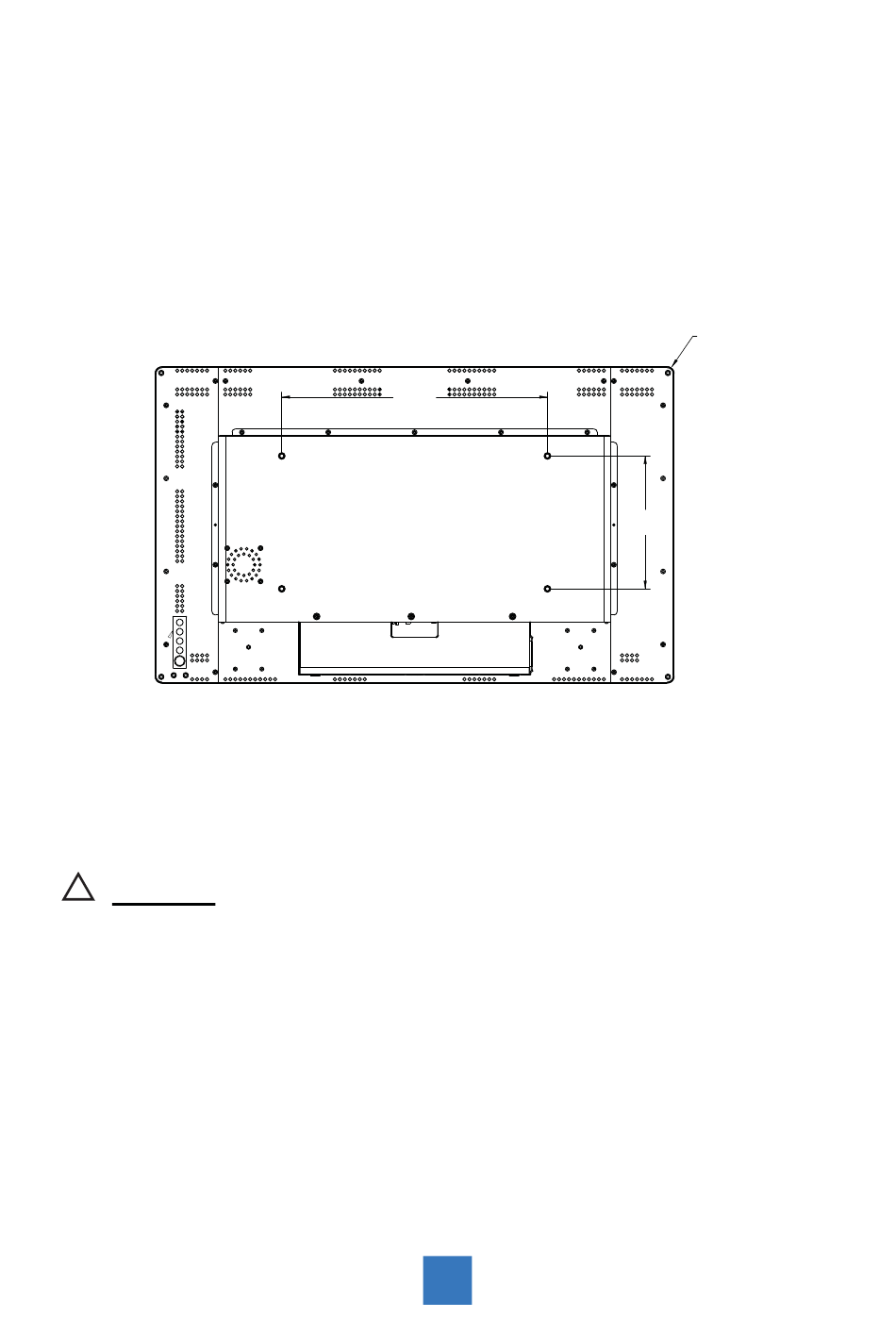

4- R13
400
200
!
Warning!
Please select the proper screws!
The distance between the back cover surface and the bottom of the screw hole
is 8 mm. Please use four M6 screws diameter with proper length to mount your
monitor.
Please note: the mounting stand must be able to support at least 44.1 lbs (20Kg).
