- Page 1 USER’s GUIDE M21A Series Touch Screen LCD Monitors Rev.A...
- Page 2 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced,translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
-
Page 3: Table Of Contents
Table of Contents Usage Notice Precautions..........................1 Introduction About M21A Series ......................... 2 Touch Screen for M21A-0101 ....................3 Package Overview ...................... 4 Installation Product Overview ......................5 Front View ......................5 Bottom View (Without Stand) .................. 5 Kensington Security Slot ....................6 VESA Mount for your Monitor .................. -
Page 4: Usage Notice
Usage Notice Warning - To prevent the risk of fire or shock hazards, do not expose this product to rain or moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. -
Page 5: Introduction

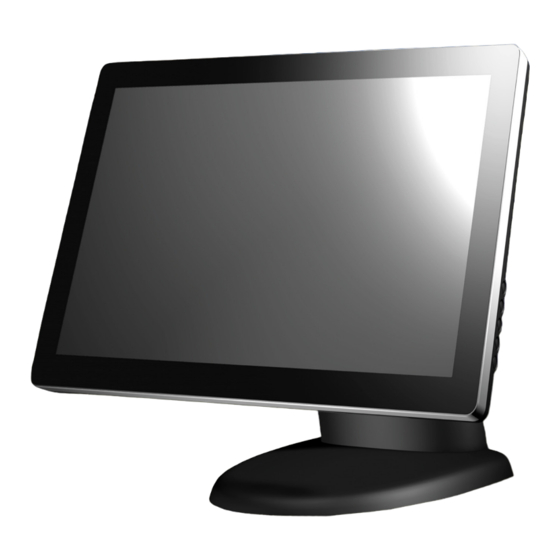

Introduction About M21A Series The M21A Series is a 22" flat panel screen with an active matrix, thin-film transistor (TFT) liquid crystal display (LCD). Features include: • Direct Analog signal input • Direct Digital signal input • Active matrix TFT LCD technology •... -
Page 6: Touch Screen For M21A-0101
Touch Screen for M21A-0101 • Project Capacitive touch screen for finger input only • Surface: Clear glass • Interface: USB controller ® • HID: Windows 7,VISTA, XP, 2000, ME, 98 • Driver: Linux kernel 2.6.x (32 bit & 64 bit) -
Page 7: Package Overview
Package Overview LCD Display VGA Signal Cable Power Cord USB Cable ( A to B) DVI-D Cable Audio-in Cable Cable Cover Screw Quick Start Guide... -
Page 8: Installation
Installation Product Overview • Front View • Bottom View (Without Stand) Audio DVI IN AC IN VGA IN... -
Page 9: Kensington Security Slot
Kensington Security Slot The monitor can be secured to your desk or any other fixed object with Kensington lock security products. The Kensington lock is not included. -
Page 10: Vesa Mount For Your Monitor
VESA Mount for your monitor This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which defines a physical mounting interface for flat panel monitors, and corresponding with the standards of flat panel monitor mounting devices, such as wall and table arms. The VESA mounting interface is located on the back of your monitor. -
Page 11: Start Your Installation
Start Your Installation 1. Lay the LCD flat on an even surface. 2. Remove the stand back cover by pulling in the direction of the arrow as seen in step 2 diagram. 3. Move the stand into position as seen in step 3 diagram. 4. - Page 12 5. Take the optional cable cover and screw from the accessory box. Position all cables under the cover lip as seen in the step 5 diagram. 6. Using a Philips Head screwdriver, insert the screw (CBM M3) into the cable cover and monitor as seen in the step 6 diagram.
-
Page 13: Connecting The Display (Figure 10.1)
Connecting the Display (Figure 10.1) To setup this display, please refer to the following figure and procedures. 1. Be sure all equipment is turned off. 2. Connect the AC power cord to the power connector on the monitor and the other end into an electrical outlet (10.1). -
Page 14: (Figure 10.1)
(Figure 10.1) -
Page 15: User Controls
User Controls Side Panel Controls Icon key Name Menu Down Enter Power Menu off status Menu on status Menu appear Menu disappear / return to main item Brightness Main item select up / Adjust up Mute Main item select down / Adjust down Enter / Select sub-item function Power On / Off... -
Page 16: How To Use The Osd Menus
How to Use the OSD Menus Icon key Name Menu Down Enter Power 1. Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down” button to select among the six functions in the main menu. 2. -
Page 17: On-Screen Display Menus
On-Screen Display Menus Main OSD Menu: ITEM CONTENT Contrast The monitor luminance level control. Brightness The monitor backlight level control. Auto Adjust Fine-tune the image to full screen automatically. Left/Right Moving screen image horizontal position to left or right. Up/Down Moving screen image vertical position to up or down. -
Page 18: Appendix
Appendix Troubleshooting If you are experiencing trouble with the LCD display, refer to the following. If the problem persists, please contact your sales representative or our service center. Problem: No image appears on screen. ► Check that all the I/O and power connectors are correctly and well connected as described in the “Installation”... -
Page 19: Warning Signal
Warning Signal If you see warning messages on your LCD screen, this means that the LCD display cannot receive a clean signal from the computer graphics card. There may be three sources for this problem. Please check the cable connections or contact your sales representative or our service center for more information. -
Page 20: Product Dimensions
Product Dimensions 539.19mm 71.90mm Front View Side View 327.74mm Top View... - Page 21 Rotate 71.90mm 330.65mm Front View Side View 327.74mm Top View...
-
Page 22: Compatibility Modes
Compatibility Modes Mode Resolution H-Frequency(khz) V-Frequency(hz) IBM VGA 720X400 31.47 IBM VGA 640X480 31.47 Apple MacII 640X480 35.00 VESA VGA 640X480 37.86 VESA VGA 640X480 37.50 VESA VGA 800X600 35.16 VESA VGA 800X600 37.88 VESA VGA 800X600 48.08 VESA VGA 800X600 46.88 Apple Mac... -
Page 23: Touch Screen Driver Installation
Touch Screen Driver Installation The M21A-0101 is available with USB connection. The Linux kernel 2.6.x (32 bit & 64 bit) touch ® driver can be downloaded at www.touchrev.com. HID for Windows 7, VISTA , XP, 2000, ME, 98. Please Note: ®...
