DigiTech XC0438 User Manual

Smart wi-fi weather station lcd colour display
Hide thumbs
Table of Contents

Advertisement

Quick Links

*

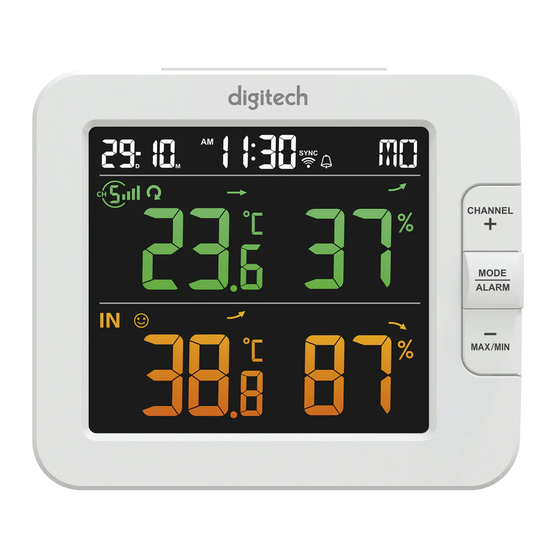

Smart Wi-Fi Weather Station
LCD Colour Display
XC0438
User Manual
*Smart phone not included

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XC0438 and is the answer not in the manual?

Questions and answers

Related Manuals for DigiTech XC0438

Summary of Contents for DigiTech XC0438

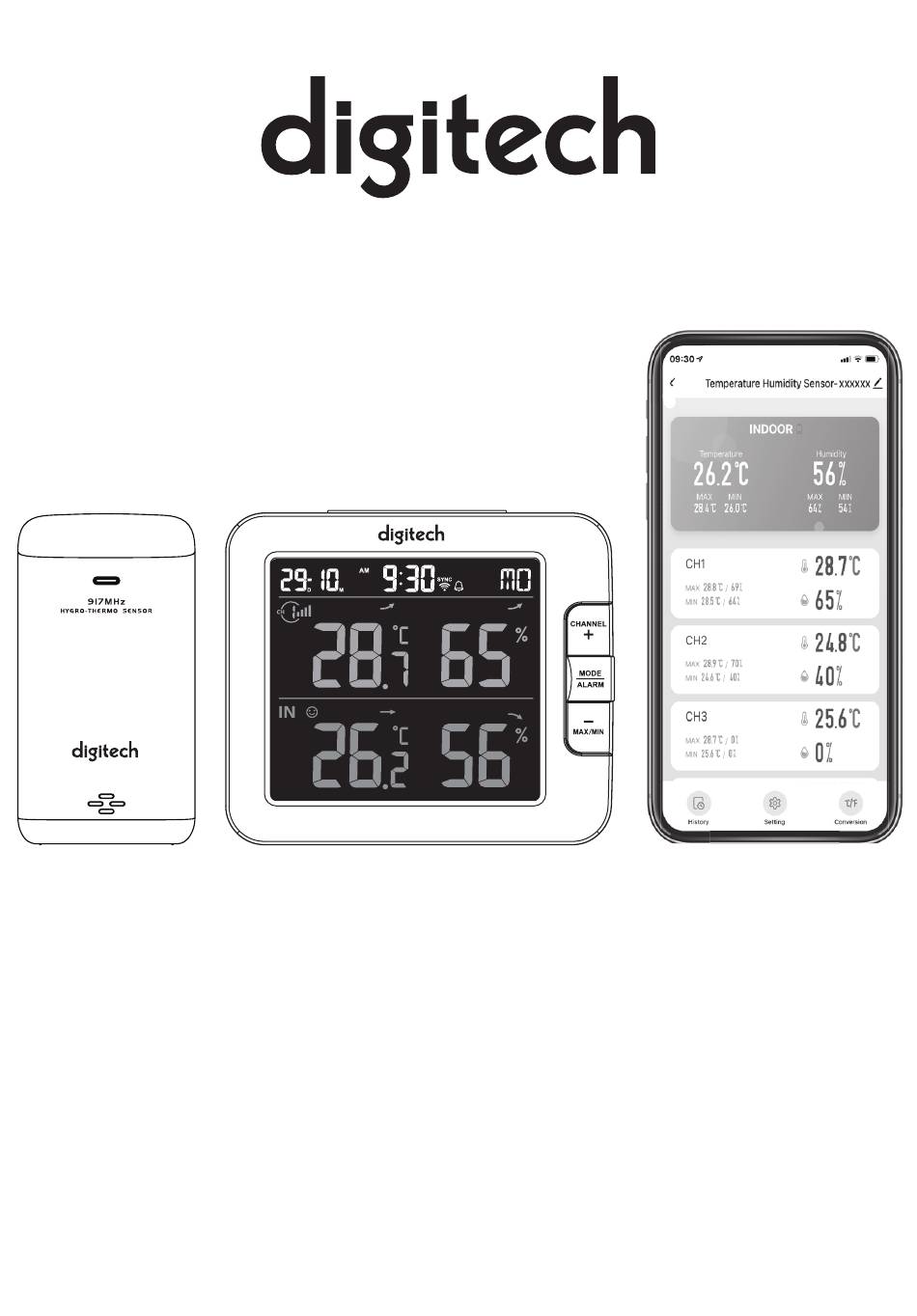

  • Page 1 Smart Wi-Fi Weather Station LCD Colour Display XC0438 User Manual *Smart phone not included...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . INTRODUCTION .

  • Page 3: Introduction

    - Do not subject the unit to excessive force, shock, dust, temperature or humidity. - Do not cover the ventilation holes with any items such as newspapers, curtains etc. - Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth . - Do not clean the unit with abrasive or corrosive materials.

  • Page 4: Overview

    OVERVIEW CONSOLE 1 . [ ALARM/SNOOZE ] key 7 . [ / CAL ] key 13 . [ Refresh ] key 2 . LCD display 8 . [ TIME SET ] key 14 . [ RESET ] key 3 . [ CHANNEL / + ] key 9 .

  • Page 5: Wireless Thermo-Hygro Sensor

    WIRELESS THERMO-HYGRO SENSOR 1 . LED indicator 2 . Wall mounting holder 3 . Channel slide switch 4 . [ RESET ] key 5 . Battery compartment INSTALLATION AND SETUP INSTALL WIRELESS THERMO-HYGRO SENSOR 1 . Remove the battery cover of the sensor. 2 .

  • Page 6: Install Wireless Thermo-Hygro Sensor

    SETUP THE CONSOLE INSTALL THE BACKUP BATTERY Backup battery provides power to the console to retain clock time and date, max/min records and calibration value. Step 1 Step 2 Step 3 Remove the console Insert a new CR2032 Replace the battery door . battery door with a coin button cell battery NOTE:...

  • Page 7: Additional Wireless Sensor(S) (Optional)

    ADDITIONAL WIRELESS SENSOR(S) (OPTIONAL) The console can support up to 7 wireless sensors . 1 . In the new wireless sensor, slide the Channel switch to a new CH number. 2 . Press the [ RESET ] key on the new sensor . 3 .
  • Page 8 Step 2: On "Add Manually" screen, choose Step 3: "Sensors" in the left menu bar and Step 1: Make sure you select the 2 .4G network On the home screen , tap the then select "Temperature and Humidity and enter your Wi-Fi password. Then the top right corner to add your console .

  • Page 9: Device Screen Overview

    3 . The console will automatically exit AP mode and return to normal operation once it's connected to the Wi-Fi router . NOTE : - Smart weather station can only connect to 2 .4G WI-FI network - Enable the location information on your mobile when you add your console to the App . [ SENSOR / WI-FI ] - You may press and hold for 6 seconds to exit AP mode any time .

  • Page 10: To Set Alert Notification

    TO SET ALERT NOTIFICATION You can set the temperature and humidity high / low alarm . Step 1: Step 2: Step 3: Tap the "Setting" on the bottom of the Tap the "Temperature Alarm" or Tap the "INDOOR" or "CH 1 ~ 7 ". "device Screen".

  • Page 11: Iot Application

    IOT APPLICATIONS Through the Smart life App, you can create temperature and humidity trigger conditions to control other Smart Life compatible device(s) automatically. Step 1: Step 2: Step 3: Tap the " Smart" icon on Home Tap the " " icon. Tap one of below tag to set different screen, and follow the instruction trigger condition .

  • Page 12: Firmware Update

    FIRMWARE UPDATE The console can be updated through your WI-FI network. If new firmware is available, a notification or pop up message will be shown on your mobile when you open the App. Follow the instructions in the App to do the update . During the update process, the console will show the progress status percentage at the bottom of the screen .

  • Page 13: Activating Alarm Function

    ACTIVATING ALARM FUNCTION 1 . In normal mode, press the [ MODE / ALARM ] key to show the alarm time for 5 seconds . 2 . When the alarm time displays, press the [ MODE / ALARM ] Alarm off Alarm on key again to activate the alarm function.

  • Page 14: To View Max / Min

    TREND INDICATOR The trend indicator shows the temperature or humidity trends of changes based on the next 15 minutes . Rising Steady Falling MAX / MIN DATA RECORD The console can record MAX / MIN readings both daily and since last the reset .

  • Page 15: Set Lcd Display Contrast

    SET LCD DISPLAY CONTRAST In normal mode, press [ / CAL ] key to adjust LCD contrast for best viewing on table stand or wall mounted . MAINTENANCE BATTERY REPLACEMENT When the low battery indicator “ ” is displayed in the CH section of the LCD display, it indicates that the current channel sensor battery power give wireless sensor shown is low respectively.

  • Page 16: Wireless Thermo-Hygro Sensor

    In Humidity Humidity unit 1 ~ 20% RH ± 6.5% RH @ 25°C (77°F) Accuracy 21 ~ 80% RH ± 3.5% RH @ 25°C (77°F) 81 ~ 99% RH ± 6.5% RH @ 25°C (77°F) Resolution WI-FI Communication Specification Standard 802 .11 b/g/n Operating frequency : 2.4GHz...
