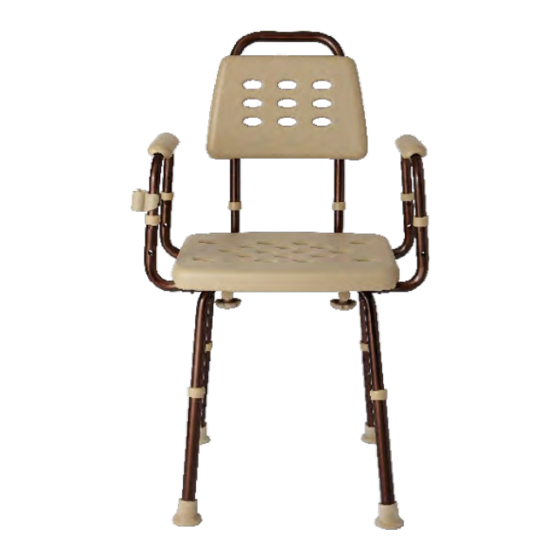

Summary of Contents for Medline Elements MDS89745ELMB
Page 1
PLeaSe read CarefULLy Before USinG yoUr medLine BatH BenCH. To ensure the safe installation, adjustment, and operation of Bath Bench, these instructions MUST be followed. Lea Con atenCiÓn anteS de USar SU BanCo Para BaÑo medLine. Para una instalación, ajuste y funcionamiento seguros del banco para baño, se DEBEN seguir estas instrucciones.
General warnings PLeaSe read CarefULLy Before USinG yoUr medLine BatH BenCH. To ensure the safe installation, adjustment, and operation of Bath Bench, these instructions MUST be followed. do noT install this product without first reading and understanding this instruction manual.
• Check the rubber feet on the leg extensions for rips or wear. If any of these conditions exist, or if they are missing, replace them immediately. assembly instructions Ensure that you have all the necessary components before assembling your Medline Elements™ Shower chair or bench. a. 1 Seat b.
Page 4
Part one: Seat and Legs assembly Only the MDS89745ELMB will have the two backrest support bars (H). These are not necessary for the MDS89740ELMB. 3B (for mdS89745eLmB only) 4 Continued Step 1: Turn the seat (A) over to reveal screw holes and the X shape indents for the mainframe. Place 1 of the leg mainframes (C) into the indent on the underside of the seat (A).
Page 5
Part tWo: apply armrest and Backrest support bars 1 Continued Step 1: attach the armrest support bars (e). Keep the bench flipped over so the assembled legs are facing upwards. Take the armrest support handle (E) and insert longer tube portion into support frames as pictured above. Depress the push-button on the armrest support bar (E) to lock into place. Make sure the push-button is fully protruded before using.
Page 6
Shower chair or Bench has multiple adjustment points to create a custom fit that keeps you comfortable while bathing. Use the push-buttons on the various adjustable features to find the settings that you like best.
Generales Lea Con atenCiÓn anteS de USar SU BanCo Para BaÑo medLine. Para una instalación, ajuste y funcionamiento seguros del banco para baño, se DEBEN seguir estas instrucciones. no instale este producto sin antes leer y entender este manual de instrucciones.
NOTA: Al recibir el paquete, verifique que TODAS las partes se encuentren en buenas condiciones y no se hayan dañado durante el transporte. En caso de encontrar algún tipo de daño, NO USE EL PRODUCTO. Comuníquese con Medline al 1-800-MEDLINE para informar de inmediato el problema.
Page 9
Parte Uno: ensamblaje del asiento y las patas Solamente el modelo MDS89745ELMB tendrá las dos barras de soporte para el respaldo (H). Estas barras no son necesarias para el modelo MDS89740ELMB. 3B (Solamente para el modelo mdS89745eLmB) 4 Continuación Paso 1: Dé vuelta el asiento (A) para ver los orificios y las hendiduras en forma de X para el armazón principal. Coloque 1 de los armazones principales de las patas (C) en la hendidura de la parte inferior del asiento (A).
Page 10
Parte doS: Coloque las barras de soporte del apoyabrazos y del respaldo. 1 Continuación Paso 1: fije las barras de soporte del apoyabrazos (e). Mantenga el banco dado vuelta de modo que las patas ensambladas permanezcan hacia arriba. Tome el mango del soporte del apoyabrazos (E) e inserte la parte de tubo más larga en las estructuras de soporte, tal como se muestra anteriormente.
Page 11
Asegúrese de que los botones pulsadores de ambos lados sobresalgan por completo y asegúrelos antes de usar. La silla o banco de ducha y de bañera medline elements™ tiene múltiples puntos de ajuste que logran una posición personalizada para su comodidad durante el baño. Use los botones pulsadores de realizar los diferentes ajustes y así...
Page 12
Garantía Limitada de Por Vida Su producto de marca Medline está garantizado libre de defectos en materiales y mano de obra durante la duración de su uso por el comprador original. Este dispositivo fue construido con estándares precisos e inspeccionado cuidadosamente antes de su envío. Esta garantía limitada en una expresión de nuestra confianza en los materiales y mano de obra de sus productos y asegura años de servicio conveniente y confiable.
