Oxford Benchmate 54P-D Manual

Four plate shaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OXFORD
LAB PRODUCTS

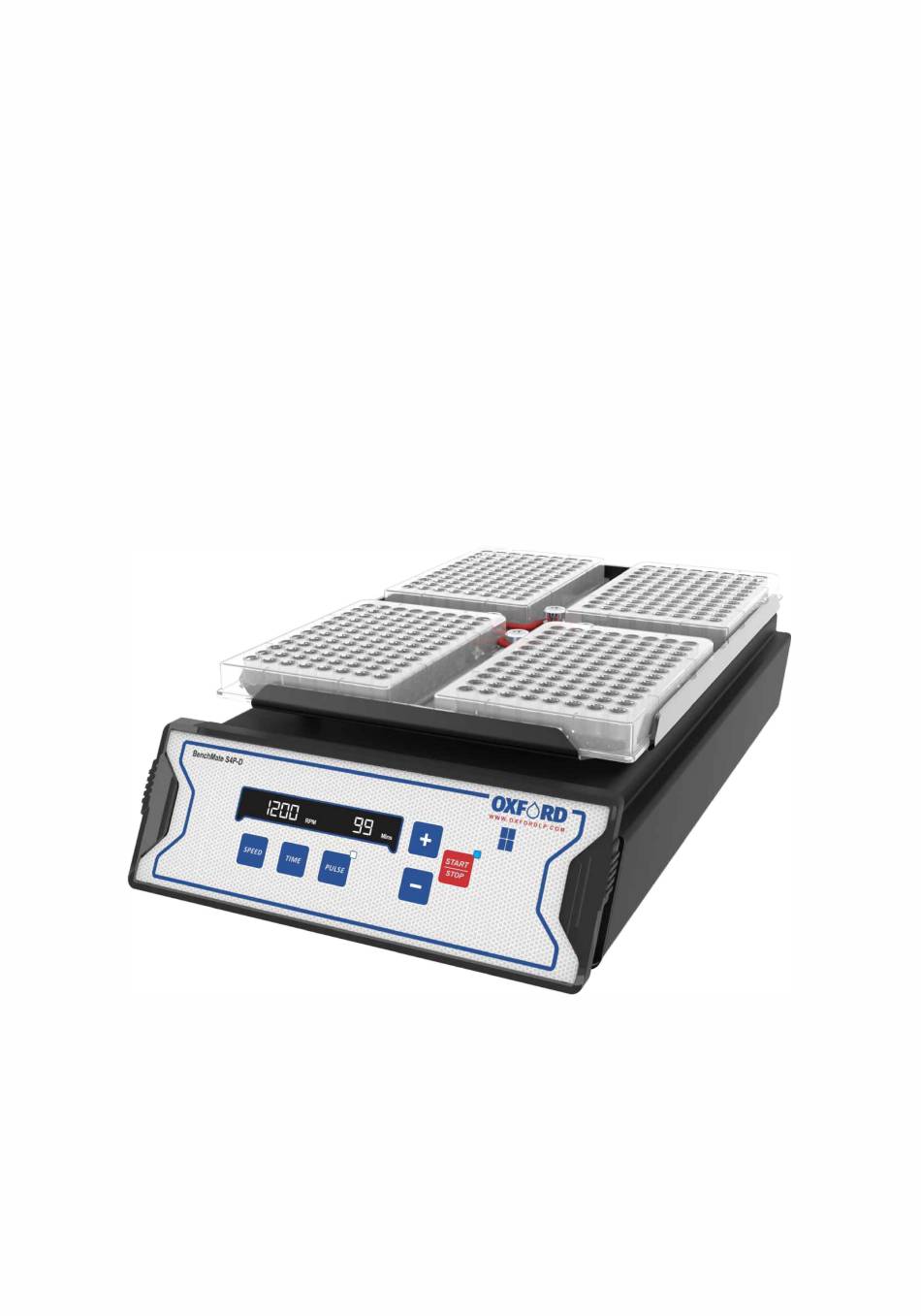

Benchmate 54P-D
Four Plate Shaker
Visit www.oxfordlp.com to see the complete product offering and /
or learn more about our products.
Call us at 800-554-4920 to schedule additional product demos or learn
about the best consumables for your equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Benchmate 54P-D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oxford Benchmate 54P-D

Summary of Contents for Oxford Benchmate 54P-D

  • Page 1 OXFORD LAB PRODUCTS Benchmate 54P-D Four Plate Shaker Visit www.oxfordlp.com to see the complete product offering and / or learn more about our products. Call us at 800-554-4920 to schedule additional product demos or learn about the best consumables for your equipment.

  • Page 3: Table Of Contents

    CONTENTS 1 . Brief Overview 2. Intended Use 3 . Safety Precautions 4. Features ............................5. Technical Specifications ..................6. Accessories 7. Installation 8. Installing Micro-plates 9. Operation 10. Tips for Efficient Operation 11. Warranty Statement 12. Product Disposal...

  • Page 5: Brief Overview

    1. BRIEF OVERVIEW The Oxford S4P-D four plate shaker is a microprocessor controlled shaker & comes with a digital display and a "PULSE" mode. It shakes with an orbital diameter of 3 mm for proper mixing of samples. 2. INTENDED USE The Oxford S4P-D four plate shaker is used for mixing various biological liquids and chemicals in micro-plates.

  • Page 6: Features

    4. FEATURES • Uniformly shakes micro-plates • Microprocessor controlled device and digital display • Adjustable speed from 200 to 1200 RPM at every 10 RPM • Adjustable time from 1 to 999 minutes and infinite mode • 3 mm orbital motion for thorough mixing in micro-plates •...

  • Page 7: Technical Specifications

    5. TECHNICAL SPECIFICATIONS Motion Orbital Orbital Diameter Speed 200 to 1200 RPM at every 10 RPM Yes( clockwise & counter clockwise) Pulse Mode Time 1 to 999 minutes & infinite mode Display (Speed & Timer) 7 Segment LED Dimensions(WxHxL) in mm Input Power 110-AC, 50-60Hz Output Power...

  • Page 8: Accessories

    6. ACCESSORIES • Replaceable 0-ring • Power adapter • Product manual & warranty card 7. INSTALLATION Gently take the unit out of the box and place it on a flat, stable and non slippery surface. Keep 2-inches clearance from all 4 sides of the shaker so that it can be operated easily and safely.

  • Page 9: Operation

    9. OPERATION • POWERING THE SHAKER To start operation, connect the power adapter to the port at the rear of the unit and subsequently flip the switch present at the rear side of the unit to "I". Adapter port ® •---------- ___________ •...
  • Page 10 The value in the display window will blink 3 times and then stop, confirming that the set RPM value has been saved. • TIME EDIT FUNCTION Press the 'Tl ME' button to set the time value, followed by "+" OR "-" buttons to increase OR decrease the time value from 1 to 999 minutes.
  • Page 11 • PULSE MODE The Pulse mode can be activated upon pressing the PULSE button after setting the desired speed and time values. When PULSE mode is activated, the power LED will start blinking giving indication of activated pulse mode. This mode automatically alternates the Shaking motion in a clockwise & counter clockwise direction every 30 seconds by default.

  • Page 12: Tips For Efficient Operation

    10. TIPS FOR EFFICIENT OPERATION Orbital shaking is a simple way for the mixing of assay components, but simply putting the samples in a micro-plate does not guarantee reaching complete blending after the mixing process. The adjustment of the optimal mixing speed for micro-plates is dependent on the size of the well and the filling volume.

  • Page 13: Warranty Statement

    11. WARRANTY STATEMENT This products is warranted to be free from defects in material and workmanship for a period of two (2) years from date of purchase. Your product will be duly repaired upon prompt notification in compliance with the following conditions: •...

  • Page 14: Product Disposal

    11. WARRANTY STATEMENT The manufacturer will not be responsible for damage incurred by improper packaging. Note: This warranty is valid only if the warranty is registered with the supplier within 30 days from the date of purchase. 12. PRODUCT DISPOSAL 'c-?����, ;...
  • Page 16 Call us at 800-554-4920 to schedule additional product demos or learn about the best consumables for your equipment. Send warranty card information to: Oxford Lab Products 10360 Sorrento Valley Road San Diego, CA92121 Thank You for choosing Oxford Lab Products for your research.
