Oxford Benchmate C8 Manual

Micro centrifuge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

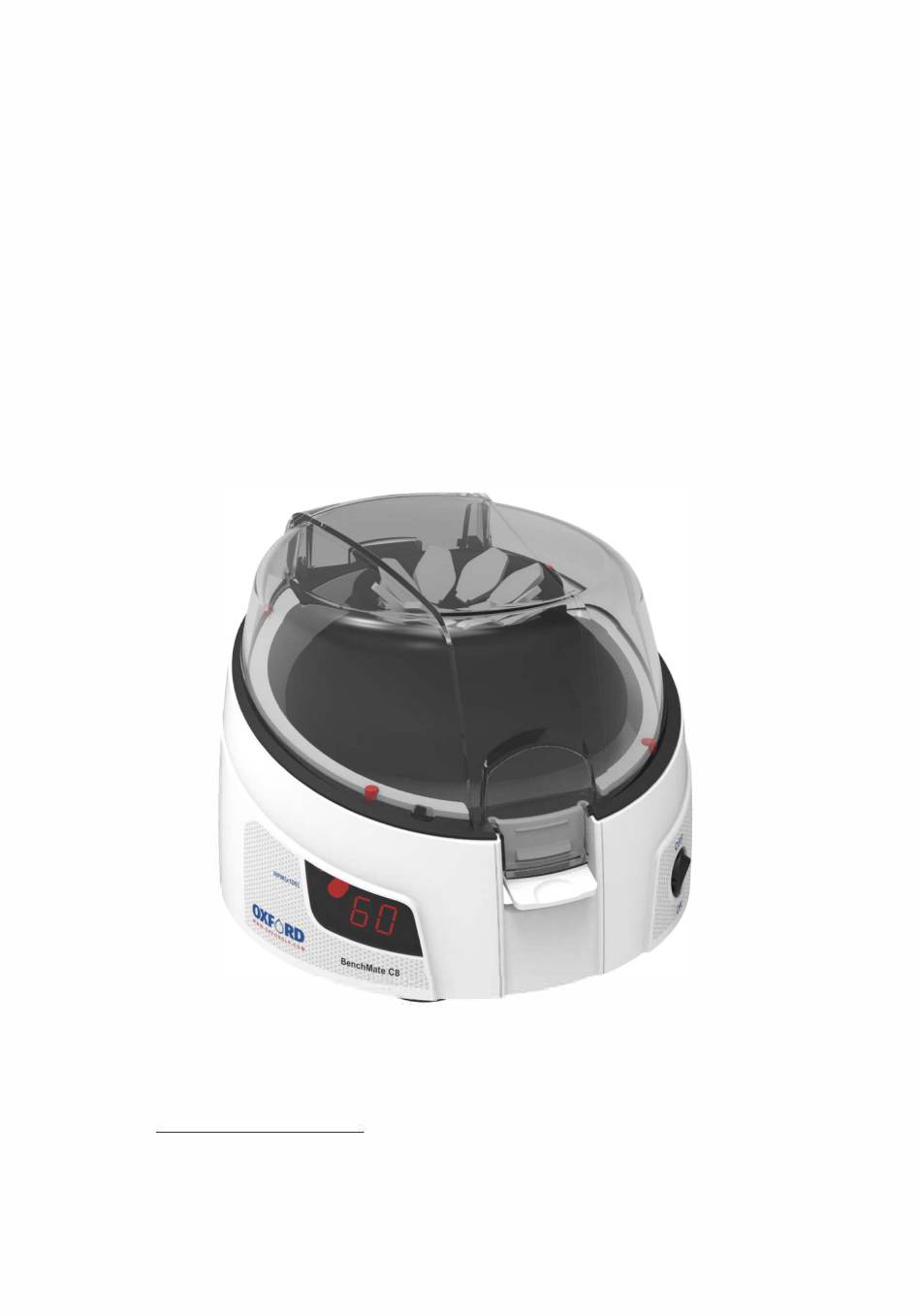

OXFORD
LAB PRODUCTS
ca
Benchmate
Micro Centrifuge
Visit www.oxfordlp.com to see the complete product offering and
learn more about our products.
Call us at 800-554-4920 to schedule additional product demos or learn
about the best consumables for your equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Benchmate C8 and is the answer not in the manual?

Questions and answers

Related Manuals for Oxford Benchmate C8

Summary of Contents for Oxford Benchmate C8

  • Page 1 OXFORD LAB PRODUCTS Benchmate Micro Centrifuge Visit www.oxfordlp.com to see the complete product offering and learn more about our products. Call us at 800-554-4920 to schedule additional product demos or learn about the best consumables for your equipment.

  • Page 3: Table Of Contents

    CONTENTS Introduction Intended Use Safety Precautions Features Technical Specifications Standard Accessories Installation Standard Part Listing Rotor Balancing Interchangeable Rotor Changing the Rotor Opening Centrifuge Lid Operation Calibration Care and Maintenance Service and Repair Information Warranty Statement Product Disposal...

  • Page 5: Introduction

    Please read this manual thoroughly before operating the centrifuge. 2. INTENDED USE The Oxford Benchmate C8 is used in various laboratories to separate particles from suspension or even macromolecules from solutions according to their density. The different biological substances that are usually separated by centrifugation are microbial cells, organelles, proteins, DNA, and RNA.

  • Page 6: Safety Precautions

    3. SAFETY PRECAUTIONS The personal micro centrifuge is designed to be safe under the following conditions when operated with necessary precautions mentioned below : • Indoor use only. ° • Ambient temperature of 4 C to 6S • Main supply voltage fluctuations not to exceed +/-10% of the nominal voltage.

  • Page 7: Features

    • Do not use solvents or flammable media near this or other electrical equipment. • In case the unit is dropped from the table, please check the casing for any cracks/damage. • The centrifuge and its components are non autoclavable. •...

  • Page 8: Technical Specifications

    5. TECHNICAL SPECIFICATIONS MAXIMUM SPEED 6000 RPM SPEED TYPE Fixed speed 6000 RPM MAX RCF 2000 xg SPEED ACCURACY ±100 RPM SIZE (LxWxH) 162 x 154 x 116 mm WEIGHT 1.1 Kg INPUT VOLTAGE 100 - 240 VAC, 50/ 60 Hz OUTPUT VOLTAGE 24VDC, 1.5A POWER CONSUMPTION...

  • Page 9: Installation

    SWITCH ,M-ff--+---+-- POWER SOCKET The Oxford Benchmate C8 micro centrifuge is supplied in a packaging box. Open the box, then gently remove the centrifuge from the box and plug in the power adaptor pin before connecting to the main power source.

  • Page 10: Standard Part Listing

    8. STANDARD PARTS LISTING PROTECTIVE LID SPEED TIMER RELEASE ON/OFF RELEASE BUTTON KNOB KNOB · B UTTON BUTTON _..c. :::::: == :::::: :'.l,... VARIABLE II-ti--+---+-- POWER SOCKET NON SLIP RUBBER BASE 9. ROTORBALANCING 1. Always balance the rotor before centrifugation. The following are symmetrical loadings of centrifuge tubes to the rotor.
  • Page 11 vibration or imbalance can occur which can cause serious damage to the centrifuge. 4. If the tubes are not loaded symmetrically then the imbalance detector will cut off the running centrifuge for device & user safety. 5. The following are the incorrect methods of loading tubes in the centrifuge the rotor.

  • Page 12: Interchangeable Rotor

    10. INTERCHANGEABLE ROTOR ROTOR_8 SLOT PCRROTOR 16x 0.2 ml 8 X 0.2,0.4,0.5, 1.5,2 ml 11. CHANGING THE ROTOR Insert the hexagonal allen key into the marked hole provided on the side of the rotor. The grub screw is located at the bottom of the rotor on the marked side.

  • Page 13: Opening Centrifuge Lid

    12. OPENING CENTRIFUGE LID Wrong Method Button Trying to open the centrifuge lid by pulling the "Lid Release" button up is the wrong method of opening the lid. Pulling the Lid Release Wrong Method Button "Lid Release" button up will break the button or damage the button.

  • Page 14: Operation

    13. OPERATION To operate the Oxford Bench mate C8 micro centrifuge, the below steps should be followed: 1. Connect the power adaptor & Switch 'On' from the rear side so that the display will show you the fix RPM readings.

  • Page 15: Calibration

    This personal centrifuge and its rotor should be cleaned periodically. Ensure that while cleaning the unit, it is not plugged in to the main power supply. To clean the Oxford centrifuge, use a damp cloth and a mild, noncorrosive detergent (ph < 8). Do not immerse the centrifuge in liquid or pour liquid over it.

  • Page 16: Serviceandrepairinformation

    Oxford Lab Products or through the authorized supplier. When returning a unit to Oxford Lab Products for service, it should be sent in the original packaging. If this is not possible, be sure that the unit is sufficiently packed.
  • Page 17 purpose and within the guidelines specified in this instruction manual. This warranty does not cover damage caused by accident, neglect, misuse, improper service, natural forces or other causes not arising from defects in original material or workmanship. This warranty does not cover any incidental or consequential damages, commercial loss or any other damages from the use of this product.

  • Page 18: Product Disposal

    18. PRODUCT DISPOSAL By observing proper disposal of the equipment, you will help conserve natural and environmental resources along with protecting human health. This equipment is marked with the crossed out wheeled bin symbol to indicate that this equipment must not be disposed of with unsorted waste.
  • Page 20 Call us at 800-554-4920 to schedule additional product demos or learn about the best consumables for your equipment. Send warranty card information to: Oxford Lab Products 10360 Sorrento Valley Road San Diego, CA92121 Thank You for choosing Oxford Lab Products for your research.
