Levelflex M FMP40 with HART/4...20 mA
!
Endress + Hauser

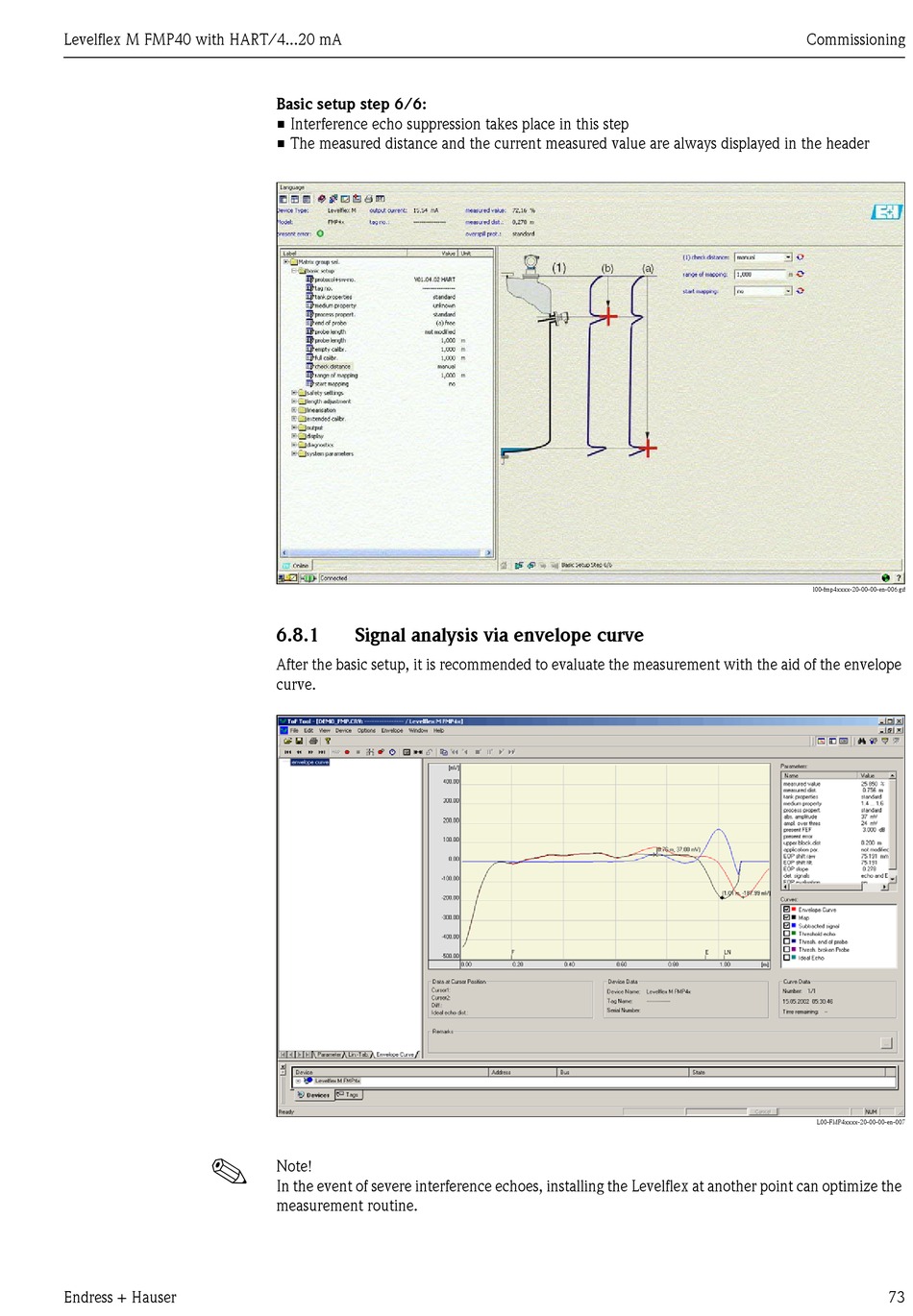

Basic setup step 6/6:
• Interference echo suppression takes place in this step
• The measured distance and the current measured value are always displayed in the header
6.8.1
Signal analysis via envelope curve
After the basic setup, it is recommended to evaluate the measurement with the aid of the envelope
curve.
Note!
In the event of severe interference echoes, installing the Levelflex at another point can optimize the
measurement routine.
Commissioning
L00-FMP4xxxx-20-00-00-en-007
73
