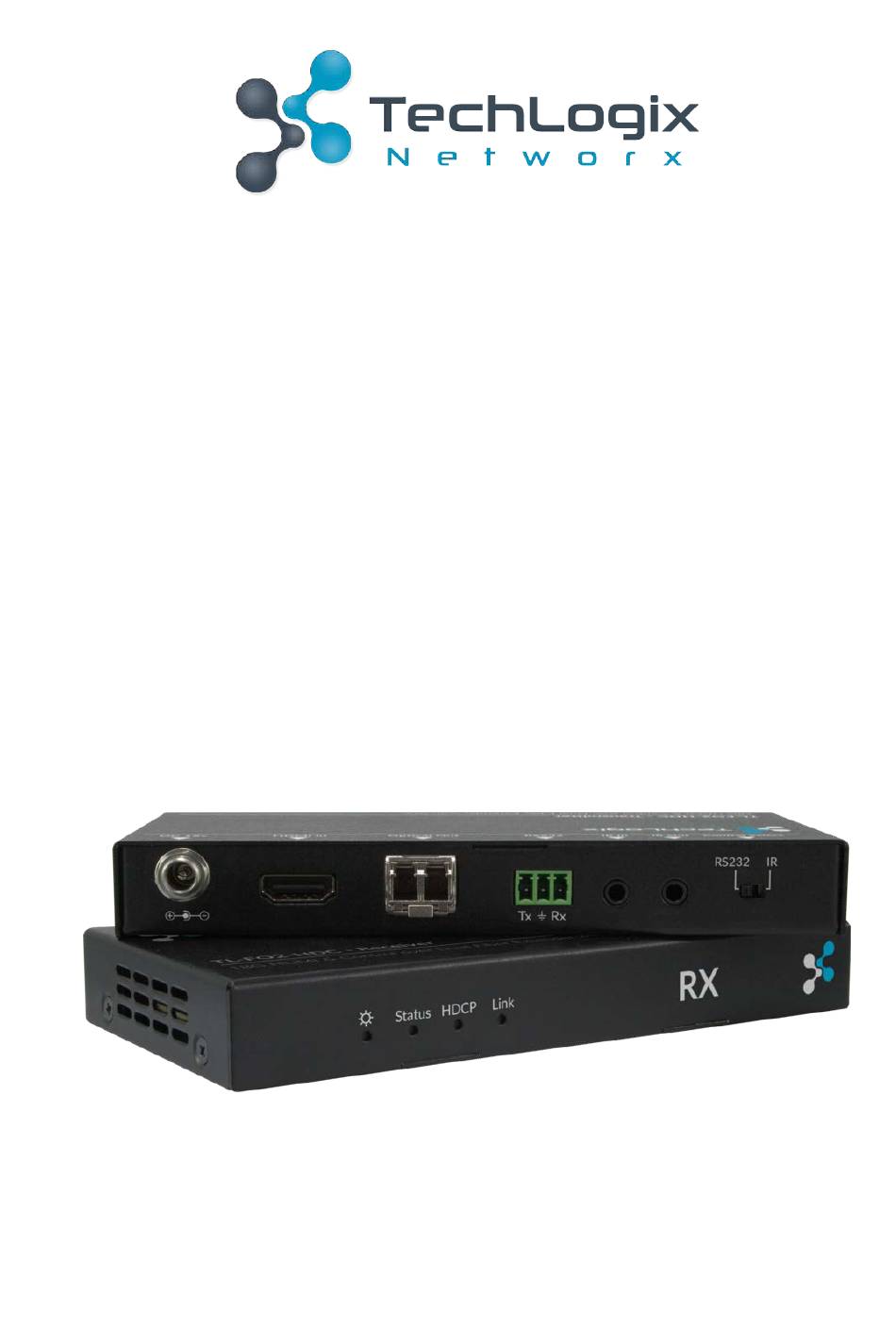

- Page 1 User Manual TL-FO2-HDC 300m Fiber Optic Extender Set for HDMI, RS232 & IR All Rights Reserved Version: TL-FO2-HDC _170912...
- Page 2 TL-FO2-HDC User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only; the actual product may vary. This manual is only for operation instruction only and not for any maintenance or repair.
- Page 3 TL-FO2-HDC User Manual SAFETY PRECAUTIONS To insure proper operation, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
TL-TP70-HDC User Manual Table of Contents 1. Introduction ......................... 1 1.1 Introduction to TL-FO2-HDC ................1 1.2 Features ......................1 1.3 Package Contents ....................1 2. Panel Description ......................2 2.1 Transmitter ......................2 2.2 Receiver ......................3 3. System Connection ...................... 5 4. -
Page 5: Introduction
UHD video, audio, and either RS232 or IR up to 300m/984ft over fiber optic cable. In addition to 4K/60 video with multichannel audio, the TL-FO2-HDC supports HDR, RGB, and YCbCr 4:4:4 color spaces. When the video signal bandwidth exceeds 9 Gpbs, the video scaling processor will dynamically scale the content for a visually lossless viewing experience. -
Page 6: Panel Description
TL-FO2-HDC User Manual 2. Panel Description 2.1 Transmitter Name Description OFF: Powered off Power ON: Powered on OFF: Transmitter is not working properly Status FLASHING: Transmitter is working properly OFF: No HDMI signal HDCP FLASHING: Non-encrypted video is being transmitted... -
Page 7: Receiver
TL-FO2-HDC2 User Manual OPTICAL Connect to the OPTICAL IN socket on the receiver via a duplex multi-mode cable RS232 control connector RS232 Connects to a 5V IR receiver (with carrier); signals tranmitted to the IR IN remote receiver Connects to a 5V IR emitter (with carrier); signals tranmitted from IR OUT the remote receiver CONTROL... - Page 8 TL-FO2-HDC2 User Manual OFF: No HDMI signal FLASHING: Non-encrypted video is being received HDCP ON: Encrypted video is being received OFF or FLASHING: Link to the transmitter has not been established Link ON: Link to the transmitter has been established Connect to the power supply 12V DC Connect to an HDMI display...
-
Page 9: System Connection
For two-way IR control of connected sources and displays from either location, first, connect IR Emitters to the IR OUT ports of the TL-FO2-HDC transmitter (TX) and TL-FO2-HDC receiver (RX), and then insert IR Receivers into the IR IN ports of the TL-FO2-HDC transmitter (TX) and TL-FO2-HDC receiver (RX). -
Page 10: Specification
TL-FO2-HDC2 User Manual 4. Specification Transmitter Input/Output HDMI Input 1 HDMI Receptacle Optical Output 2 LC Ports via SFP+ Module IR Input/Output 2 3.5mm TRS Ports RS232 1 3-pin Removable Terminal Block 12V DC 1 5.5mm OD/2.5mm ID Threaded Barrel Connector Control Selector 1 2-position Switch Receiver Input/Output... - Page 11 TL-FO2-HDC2 User Manual Signal Compression 1.8:1 Maximum; Compression starts when video signal >9 Gbps Chassis and Environmental Product Construction Painted aluminum Product Dimensions (W*H*D) 150 mm (5.91 in) x 20 mm (0.79 in) x 74.4 mm (2.93 in) Product Operational Chassis Temperature 35 to + 44°C (95 to + 111 °F) Environmental Operating Temperature 0 to + 45°C (32 to + 113 °F)
-
Page 12: Panel Drawing
TL-FO2-HDC User Manual 5. Panel Drawing 5-1 Transmitter 5-2 Receiver www.tlnetworx.com... -
Page 13: Troubleshooting & Maintenance
TL-FO2-HDC2 User Manual 6. Troubleshooting & Maintenance l No image on display: l Ensure that the display device has been set to the correct input. l Ensure that the HDMI cables used for both the source/transmitter and the receiver/display are properly connected and are working. Test the HDMI cables directly from a source to display and ensure their operation. -
Page 14: After-Sales Service
TL-FO2-HDC2 User Manual 7. After-sales Service 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years. 2) Warranty coverage may be voided when: l The warranty period has expired l The factory applied serial number has been altered or removed from the product l There is damage, deterioration or malfunction caused by: l Atypical wear and tear...
