  • Page 1 TL-FO-USB2-01 USB 2.0 Over Fiber Optic Extender User Guide...
  • Page 2 CE Statement We, TechLogix Networx, LLC, declare under our sole responsibility that the TechLogix TL-FO-USB2-01, to which this declaration relates, is in conformity with European Standard EN 55022, EN 61000 and EN 55024.

  • Page 3: Table Of Contents

    Contents Introduction..................................... 4 TL-FO-USB2-01 Product Contents ............................4 About the TechLogix TL-FO-USB2-01 ............................4 Device Overview ..................................... 5 Host Extender ....................................5 Client Extender .................................... 6 Installation Guide ................................... 7 Example Application ...................................7 Fiber Optic Link Cabling ................................7 Installing the TL-FO-USB2-01 System .............................7 Installing the Host Extender ...............................7...

  • Page 4: Introduction

    The TL-FO-USB2-01 incorporates Icron’s patented ExtremeUSB® technology, enabling users to extend beyond the standard 5m cable limit for USB peripheral devices. With the TL-FO-USB2-01, USB devices can be located up to 500 meters from the computer. This extender system is composed of two individual units: the Host Extender unit and the Client Extender unit.

  • Page 5: Device Overview

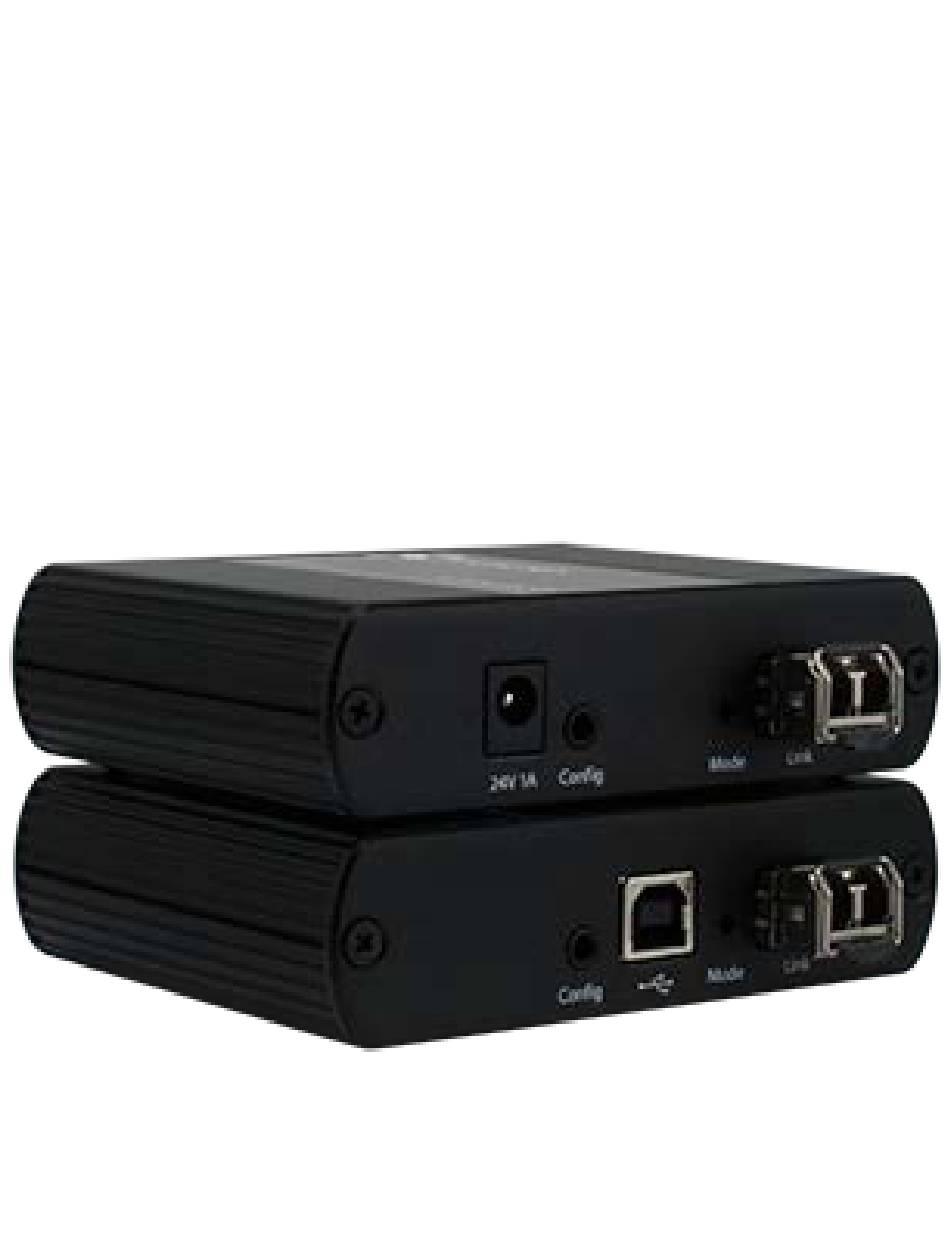

    Device Overview Host Extender Front 1 2 3 4 Rear Item Type Description LED turns on when power is supplied. The LED light is off when no power is sup- Power LED (Blue) plied. Indicates a valid ExtremeUSB® link is established between the local and remote Link LED (Green) extenders.

  • Page 6: Client Extender

    Client Extender Front 3 4 5 Rear Item Type Description Device Port (USB Type A) Accepts USB device(s). Indicates when a USB device is connected to the Device Port. Solid green when device is plugged in and active. Off when device is in suspend mode or remote Device LED (Green/Orange) extender is powered off.

  • Page 7: Installation Guide

    2. Determine where you want to locate the USB device(s). 3. If you are using surface cabling, the TL-FO-USB2-01 supports a maximum distance of 500m. If you are using premise cabling, ensure compatible fiber optic cabling is installed between the two locations, with fiber optic information outlets located near both the computer and the USB device(s), and the total length including patch cords is no more than 500m over MMF.

  • Page 8: Connecting The Host Extender To The Client Extender

    If the TL-FO-USB2-01 has been installed correctly, you should find it listed as a “Generic USB Hub”. 3. For Mac OS X users, open the System Profiler to confirm that the TL-FO-USB2-01 has installed correctly. In the left hand column under Hardware, select “USB” and inspect the right hand panel. If the TL-FO-USB2-01 has been installed correctly, you should find it listed as a “Hub”...

  • Page 9: Check If The Usb Device Is Detected By Your Operating System

    The TL-FO-USB2-01 complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, it is not possible to guarantee that all USB devices are compatible with the TL-FO-USB2-01, as there are a number of different configurations that may impact the operation of USB devices over extended distances.

  • Page 10: Usb Extender Mounting

    USB Extender Mounting The bottom of the TL-FO-USB2-01 enclosures features four pre-drilled holes for optional surface mounting. mounting hole Distance between the enclosure mounting holes: 42.0 mm x 77.0 mm 1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or using a print out of the stencil below.

  • Page 11: Troubleshooting

    Reconnect the client extender to the AC power adapter. Universal Serial controllers section of Device Manager, check that the TL-FO-USB2-01 is recognized as a “Generic USB Hub”. The system was working, but the • The client extender is in suspend mode. •...
  • Page 12 Problem Cause Solution USB device is attached to client • The USB device must have the • Install the required USB device driver on extender USB port but the client appropriate driver installed on the the computer operating system prior to extender device LED is off.

  • Page 13: Specifications

    Specifications Range Up to 500m (1640 feet) over OM2 or greater Up to 275m (902 ft) over OM1 Speeds USB 2.0: Up to 480 Mbps; USB 1.1: Up to 12 Mbps USB Hub Support Any single chain can include up to 3 USB hubs plus one RG2224 xHCI (USB 3.0) at USB 2.0 speed, EHCI (USB 2.0) and OHCI/UHCI USB Host Support (USB 1.1)

  • Page 14: Technical Glossary

    Technical Glossary USB Cables USB cables have two distinct connectors. The Type A connector is used to connect the cable from a USB device to the Type A port on a computer or hub. The Type B connector is used to attach the USB cable to a USB device. Type A Type A Type B...
