Summary of Contents for TechLogix Networx TL-FO2-HDC2

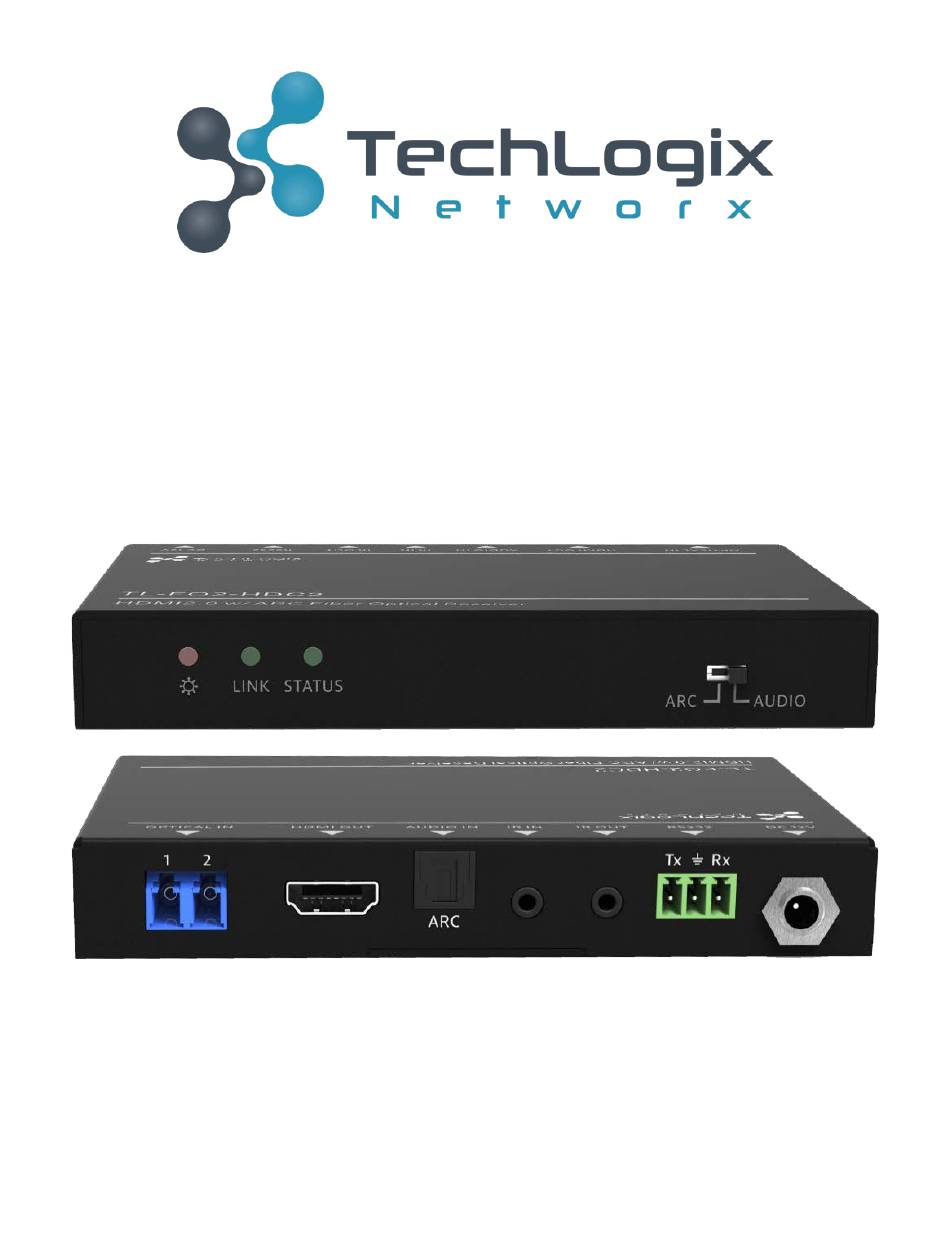

- Page 1 User Manual TL-FO2-HDC2 300m Uncompressed 4K/60 HDMI & Control Fiber Optic Extender Set All Rights Reserved Version: TL-FO2-HDC2 _180202 www.tlnetworx.com | +1-608-960-7242...
- Page 2 TL-FO2-HDC2 User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only; the actual product may vary. This manual is only for operation instruction only and not for any maintenance or repair.
-
Page 3: Table Of Contents
TL-FO2-HDC2 User Manual Table of Contents Introduction ............................4 Features at a Glance ........................4 Package Contents.......................... 4 Panel Descriptions..........................5 Transmitter ............................. 5 Receiver ............................6 System Connection ........................... 7 Usage Precautions ......................... 7 Connection Procedure ......................... 7 Panel Drawings ..........................8 Transmitter ............................. -
Page 4: Introduction
TL-FO2-HDC2 User Manual Introduction The TL-FO2-HDC2 is an HDMI 2.0 (18G signal) with HDCP 2.2 support fiber optic extender that can reach up to 300 meters (984 ft) over a duplex OM3 cable with common LC terminations. 4K@60, HDR The unit supports HDMI video resolutions up to video, IR or RS232 pass-through controls, multichannel audio, as well as ARC with optional optical audio embedding and/or de-embedding. -
Page 5: Panel Descriptions
TL-FO2-HDC2 User Manual Panel Descriptions Transmitter Name Description Power LED OFF: No power • RED: DC power present Link LED Optical link status indicator • OFF: no link • GREEN: link successful • Blinking GREEN: link abnormal Status LED HDCP compliant indicator •... -
Page 6: Receiver
TL-FO2-HDC2 User Manual Receiver Name Description Power LED OFF: No power RED: DC power present Link LED Optical link status indicator • OFF: no link • GREEN: link successful Blinking GREEN: link abnormal Status LED HDCP compliant indicator • OFF: no HDMI traffic (no picture) •... -
Page 7: System Connection
TL-FO2-HDC2 User Manual System Connection Usage Precautions System should be installed in a clean environment that has a proper temperature and humidity. All of the power switches, plugs, sockets and power cords should be installed properly. All devices should be connected before powering on the devices. -
Page 8: Panel Drawings
TL-FO2-HDC2 User Manual Panel Drawings Transmitter www.tlnetworx.com | +1-608-960-7242... -
Page 9: Receiver
TL-FO2-HDC2 User Manual Receiver www.tlnetworx.com | +1-608-960-7242... -
Page 10: Specifications
TL-FO2-HDC2 User Manual Specifications Transmitter Input/Output HDMI Input 1 HDMI Receptacle Optical Output 2 LC Ports ARC Output 1 Optical Audio Port IR Input/Output 2 3.5mm TRS Ports RS232 1 3-pin Removable Terminal Block 12V DC 1 5.5mm OD/2.5mm ID Threaded Barrel Connector... -
Page 11: Troubleshooting And Maintenance
TL-FO2-HDC2 User Manual Troubleshooting and Maintenance No image on display • Ensure that the display device has been set to the correct input. • Ensure that the HDMI cables used for both the source/transmitter and the receiver/display are properly connected and are working. Test the HDMI cables directly from a source to display and ensure their operation. -
Page 12: After-Sales Service
TL-FO2-HDC2 User Manual After-sales Service Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years. Warranty coverage may be voided when: The warranty period has expired The factory applied serial number has been altered or removed from the product...
