Installation Guide

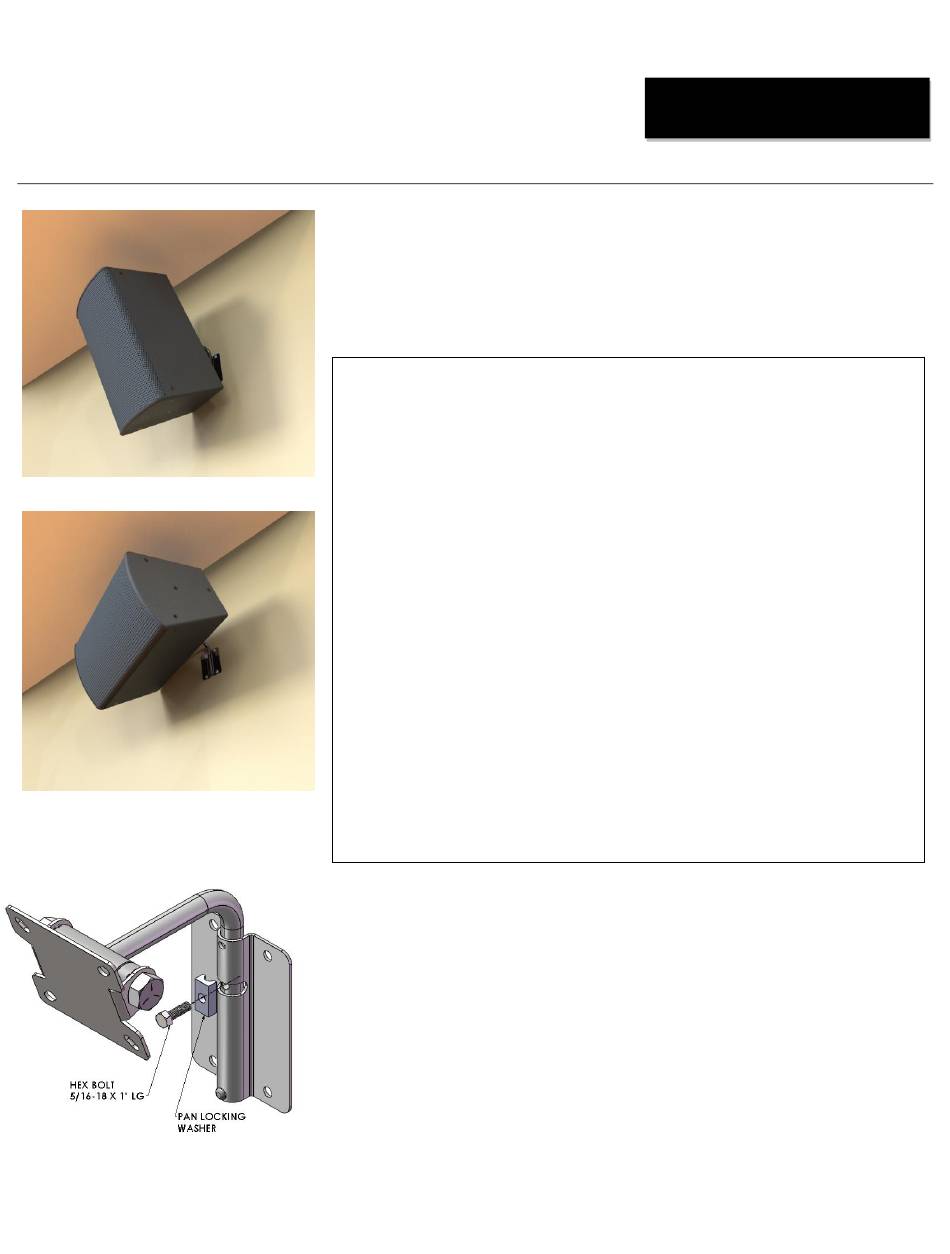

Figure 1
©2020 ATG. Signal Hill, CA 90755
Thank you for selecting the MultiMount™ MM-023 speaker Mounting kit is
designed for speaker with 100x100mm and 90x90mm hole pattern. This
mounting kit contains one speaker mount that positions speakers weighing up to
60 lb/27 kg. from most wall and ceiling structures. The MultiMount-023 simplifies
and speeds up wall and ceiling speaker installations while achieving a very
versatile range of speaker positioning.
Note to installers:
Due to the wide variety of wall structures, materials and mounting
methods, these instructions assume that the installing contractor will
exercise proper judgment in selecting the mounting area and hardware.
As a guide, the installation, when complete should be capable of supporting
5 to 10 times the actual applied load. Always use a back-up safety system
such as a safety cable.
To assure a trouble free installation, read through and follow these
instructions carefully before beginning. If you have doubts about the integrity
of the structure you are mounting to or you are not sure about the proper
hardware to use, consult a structural and/or hardware specialist.
Be sure that all of the following items are included in this kit before
proceeding:
1 pc
Mounting plate
1 pc
Support Arm Assy.
1 pc
stop pin
Note: Screws and washers to attach speaker to adapter plate are not
included.
Step 1:
Disassemble the wall mount plate from the support arm by removing the 5/16"
hex bolt and pan locking washer (Figure 1).
Step 2: Mounting to a Wall:
Attach the mounting plate to the wall with the open center slot towards the
ceiling using the appropriate hardware for the application (Figure 1). If in
doubt, consult a local hardware specialist. Make sure the stop pin is placed into
the lower center hole of the wall plate (Figure 2).
Mounting to a ceiling predetermine the desired direction of the speaker. Attach
the mounting plate to the ceiling structure with the open center slot towards the
speaker using the appropriate hardware for the application.
MM-023
MultiMount
1 pc
Speaker adapter plate
1 pc
Instruction sheet
(562) 424-1100
™
1220-rev00
Advertisement
Table of Contents
Related Manuals for Adaptive Technologies Group MultiMount MM-023
Summary of Contents for Adaptive Technologies Group MultiMount MM-023
- Page 1 MM-023 Installation Guide MultiMount ™ Thank you for selecting the MultiMount™ MM-023 speaker Mounting kit is designed for speaker with 100x100mm and 90x90mm hole pattern. This mounting kit contains one speaker mount that positions speakers weighing up to 60 lb/27 kg. from most wall and ceiling structures. The MultiMount-023 simplifies and speeds up wall and ceiling speaker installations while achieving a very versatile range of speaker positioning.
- Page 2 Step 3: Lightly loosen the ¾” bolts securing the speaker adapter plate to the support arm’s pivot rod. The support arm should be able to rotate easily without binding. Attach the speaker adapter plate and support arm assembly to the appropriate mounting holes of the speaker using the manufacturer’s suggested screws and washers.
- Page 3 Step 5: Setting the pan angle: Rotate the speaker horizontally right or left until the speaker is aimed in the desired direction. Permanently tighten the hex bolt at the mounting plate (Figure 5). Step 6: Setting the tilt angle While supporting the speaker’s weight, lift the speaker up to the desired tilt angle and hold it in position.
