Adaptive Technologies Group SAS-100-CA Installation Manual

Installation Guide

For Tilt Cable Kit

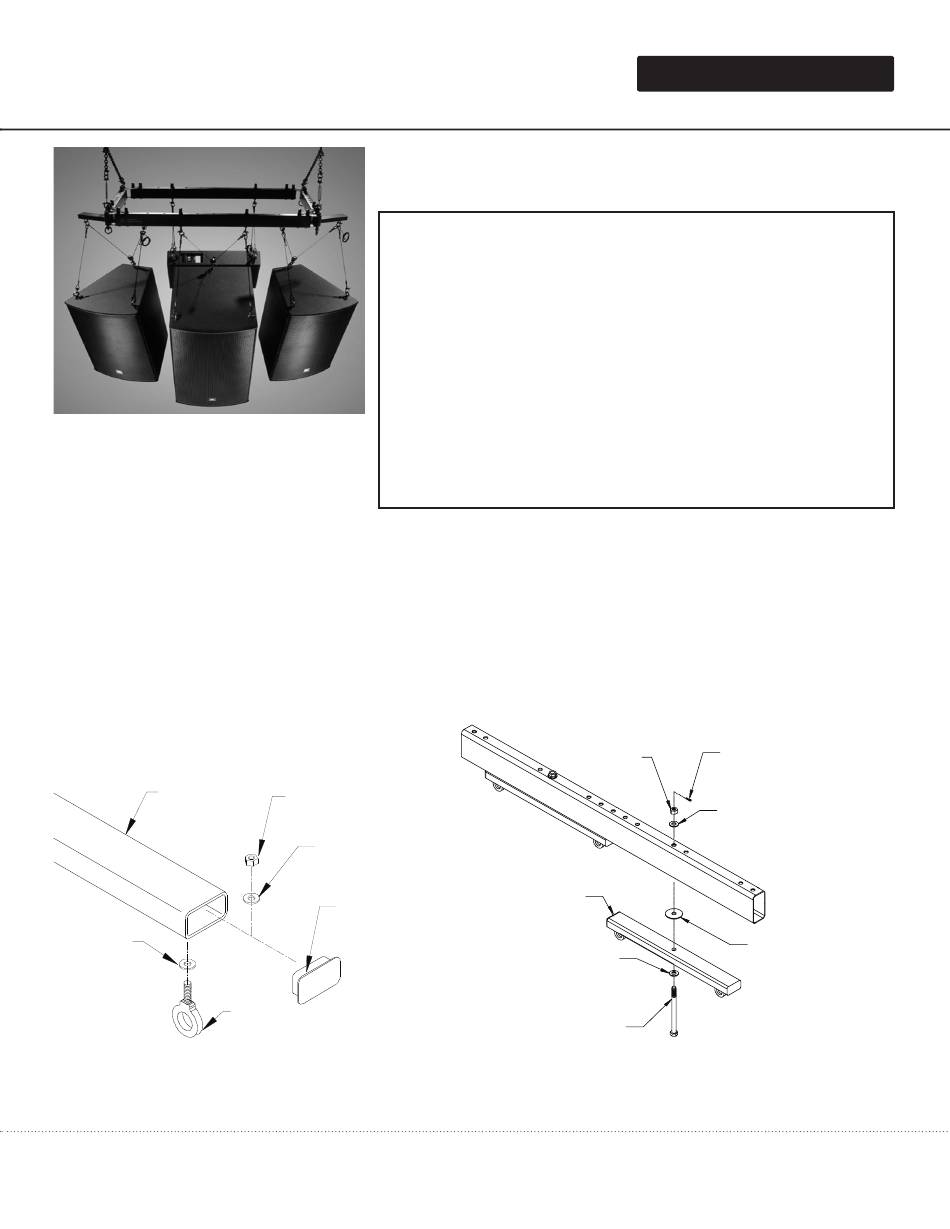

Cross arm
Flat washer
Figure 1
For use with Tilt Cable kit
1 of 2
This Universal Cross Arm part, of the GridLink™ Rigging Beam System,
adapts to GridLink™ Rigging Beams, Steerables™ wall and ceiling mounts
to provide a horizontal adjustment for aiming loudspeakers

Note to installers

Due to the wide variety of wall structures, materials and mounting
methods, these instructions assume that the installing contractor will
exercise proper judgment in selecting the mounting area and hardware.
As a guide, the installation, when complete should be capable of
supporting 5 to 10 times the actual applied load. Always use a back up
safety system such as a safety cable.
To assure a trouble free installation, read through and follow these
instructions carefully before beginning. If you have doubts about
the integrity of the structure you are mounting to or you are not
sure about the proper hardware to use, consult a structural and/or
hardware specialist.
Be sure that all of the following items are included in this kit before proceeding:
1 pc Cross Arm
1 pc Instruction sheet
Note: Screws and washers to attach speaker to adapter plate are not included

Step 1: For Use with Cable Kit

For use with the Adjustable Tilt Cable Kit, attach 5/16" eyebolts to cross arm
with flat washers and nylock nut permanently. Align eyebolts with Cross Arm
then press on the plastic end cap (Figure 1).

Step 2: Assemble Cross Rigging Beam

For use with Adjustable Tilt Cable Kit, align the center hole of the cross arm
to the selected hole on the rigging beam then permanently secure the cross
arm using the 1/2" x 7" long hex bolt, bearing washer, flat washer, nylock nut
and cotter pin. Make sure that the head of the hex bolt is towards the floor
(Figure 2).
Nylock nut
Flat washer
End cap
Eyebolt
SAS-100-CA
GridLink™ Cross Arm Kit
1 pc Hardware kit
1/2' Nylock nut
Cross arm
1/2 Flat washer
1/2 x 7" Long
hex bolt
Figure 2
For use with Tilt Cable kit
Cotter pin
1/2 Flat washer
Nylon
friction
washer
REV00-07302015
