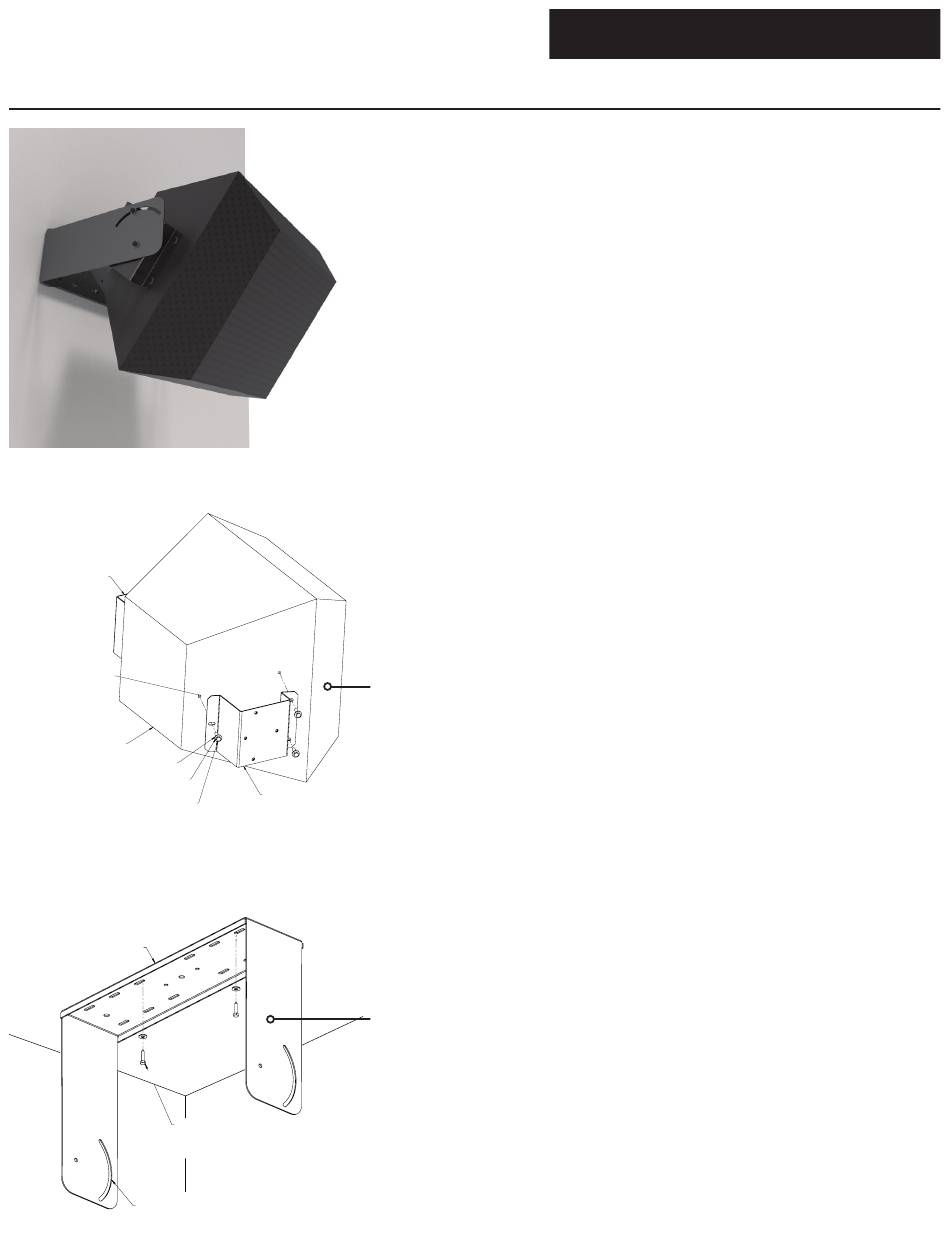

Installation Guide

SIDE ADAPTER
BRACKET
SPEAKERS
MOUNTING HOLES
QX-550 SERIES
SPEAKER
FLAT WASHER, 3/8 (3X)
SPLIT WASHER, 3/8 (3X)
HEX BOLT
3/8-16X1.5" LG (3X)
U-BRACKET
MOUNT TO CEILING
MOUNTING HARDWARE
CHOOSE APPROPRIATE
HARDWARE FOR STRUCTURE
SLOT TOWARD THE
BACK SIDE OF SPEAKER
AWAY FROM AUDIENCE
The UB-QX500 Three-piece U-Bracket kit is designed to mount and aim the EAW QX-
300 series speakers, to walls, decks, ceilings and under balconies.

Contents:

Be sure that all of the following items are included in this kit before proceeding:
1 pc
2 pcs
2 pcs
1 pc
2 pcs

Installation Procedure:

Step 1:
Attach the side mounting brackets to the speaker using the provided hardware. Attach
the two front round holes fi rst, then the rear slotted holes. Tighten permanently.
SIDE ADAPTER
BRACKET
Step 2:
Attach the U-bracket to the wall, ceiling or deck using the appropriate hardware for the
structure. Orient the U-bracket arm's long radius slot toward the back of the speaker,
away from the audience
3 Piece U-Bracket Speaker Mount
U-Bracket
Side Mounting Bracket
3/8 IDx3ODx1/8 Neo-Washer 10 pcs 3/8" Split Washer
Instruction Sheet
½ IDx1.06OD x.13 neo-washer
UB-QX500
10 pcs 3/8-16 x 1.5" Hex Cap
10 pcs 3/8" Flat Washer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UB-QX500 and is the answer not in the manual?

Questions and answers

Related Manuals for Adaptive Technologies Group UB-QX500

Summary of Contents for Adaptive Technologies Group UB-QX500

  • Page 1: Installation Guide

    Installation Guide UB-QX500 3 Piece U-Bracket Speaker Mount The UB-QX500 Three-piece U-Bracket kit is designed to mount and aim the EAW QX- 300 series speakers, to walls, decks, ceilings and under balconies. Contents: Be sure that all of the following items are included in this kit before proceeding:...
  • Page 2 Installation Guide UB-QX500 3 Piece U-Bracket Speaker Mount LOCKING REAR BOLTS HEX BOLT, 3/8-16X1.5 LG SPLIT WASHER, 3/8 FLATW ASHR, 3/8 SPLIT WASHER, 3/8 (4X) HEX BOLT 3/8-16X1.5 LG (4X) FLAT WASHER, 3/8 (4X) Step 3: Insert the speaker with side brackets into the arms of the U-Bracket using the provided 1"...
