Adaptive Technologies Group WM-0-15-60 Installation Manual

Installation Guide
Installation Procedure:

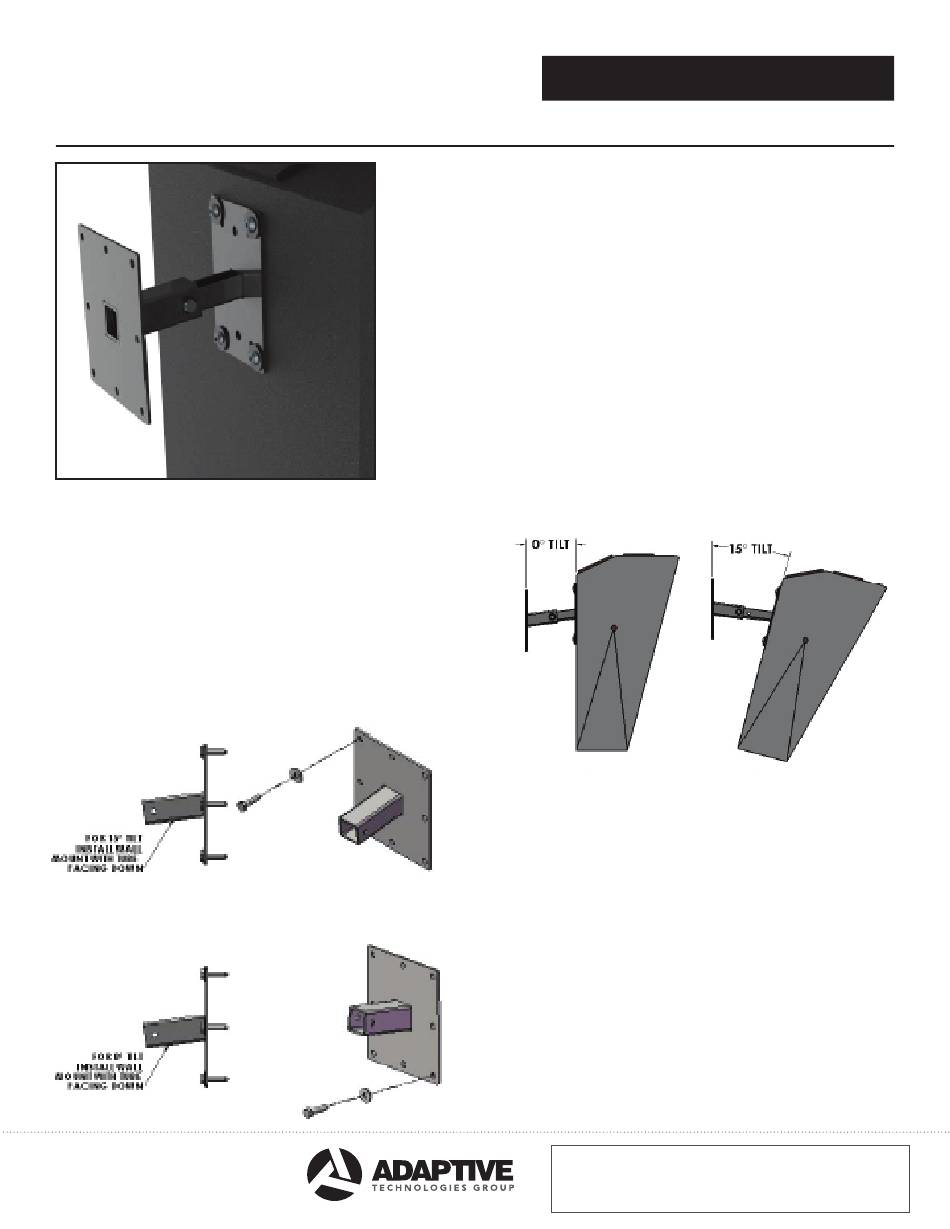

Step 1: The speaker tilt angle can be selected from either 0° or15°.
For 0° the wall mount tube is facing up, for 15° the wall mount tube is
facing down (Figure 1 and Figure 2)
Figure 2
Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520
www.adapttechgroup.com
The WM-0-15-60 wall mount is an excellent choice for various wall mounting positions as
well as 0° and 15° speaker tilt angles. The speaker are secured to standard loud speaker
mounting hole patterns, 5"x2.75" and 4" x 2.25" located on the rear of the speaker
cabinets. This mount secures to speakers by way of standard 4 hole mounting pattern
including 5" X 2 3/4 and 4 X 2 1/4 located on the rear panel of speaker cabinet.
Contents:
Be sure that all of the following items are included in this kit before proceeding:
1 pc wall mounting plate
1 pc speaker adapter assembly
1 pc hardware kit assembly
1 pc instruction sheet
Notes:
Screws and washer to attach wall mount assembly to wall are not included.
Screws and washer to attach speaker adapter to speaker are not included
ALWAYS INSTALL SAFETY CABLES
WARNING: Mounting and/or suspension of audio and video equipment requires
experienced professionals. Improperly installed loudspeakers can result in property
damage, personal injury and/or liability to the installing contractor.
WM-0-15-60
Speaker Wall Mount
Figure 1
Step 2: Secure the wall plate assembly to the wall
with the appropriate mounting hardware, hardware
not included (Figure 2).
