Adaptive Technologies Group MultiMount MM-120 Installation Manual

Installation Guide
1 of 3

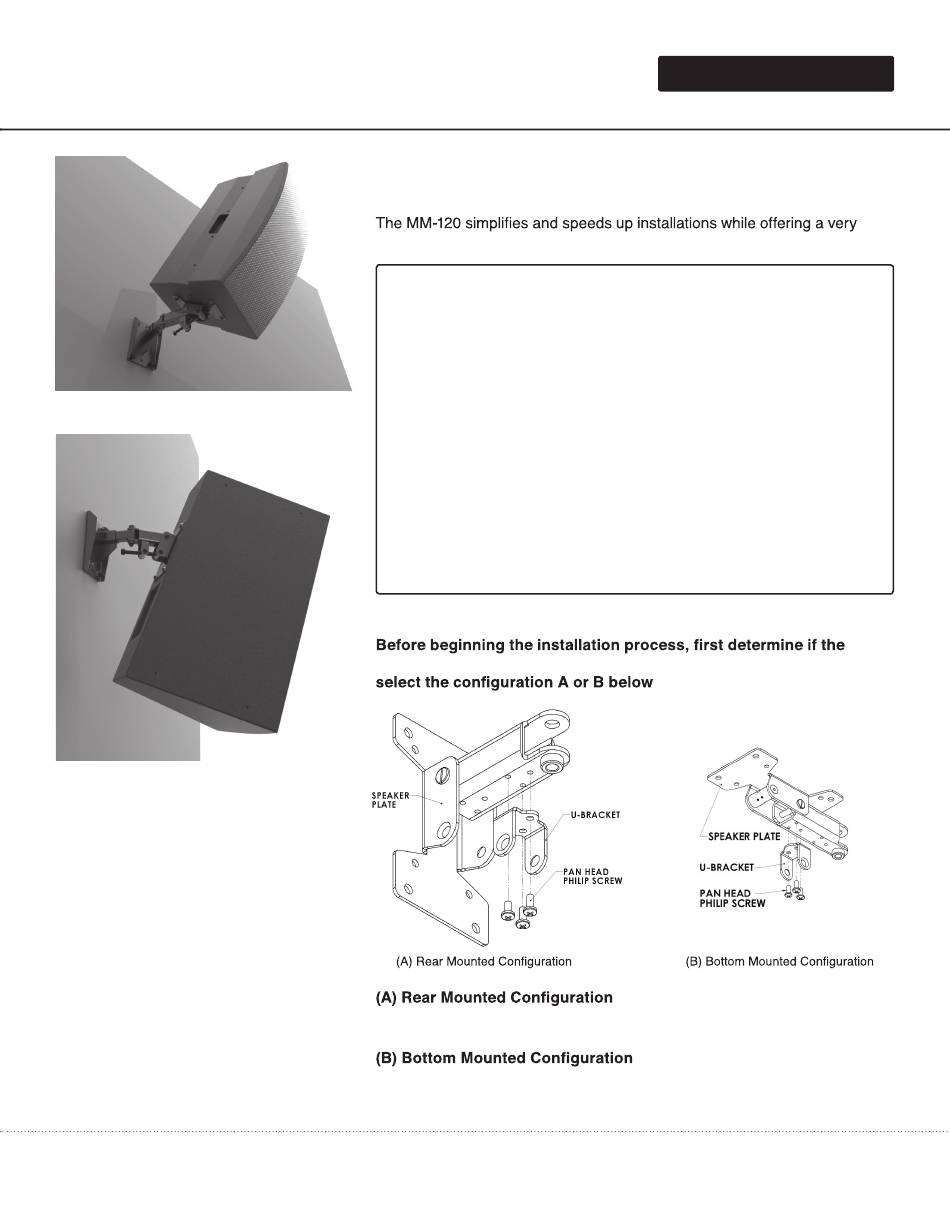

The versatile MultiMount™ MM-120 wall mounts hold a loudspeakers
weighing up to 120 lbs to walls by securing to standard four-holes mounting
patterns located on the back and the bottom panels.
versatile range of mounting and aiming options

Note to installers

Due to the wide variety of wall structures, materials and mounting
methods, these instructions assume that the installing contractor will
exercise proper judgment in selecting the mounting area and hardware.
As a guide, the installation, when complete should be capable of
supporting 5 to 10 times the actual applied load. Always use a back up
safety system such as a safety cable.
To assure a trouble free installation, read through and follow these
instructions carefully before beginning. If you have doubts about
the integrity of the structure you are mounting to or you are not sure
about the proper hardware to use, consult a structural and/or
hardware specialist.
Be sure that all of the following items are included in this kit before proceeding:
1 pc Wall mounting plate
1 pc Hardware kit bag
Note: Screws and washers to attach speaker to adapter plate are not included
U-Bracket will be attaching to the rear or the bottom speaker, then
Assemble the Pivot U-Bracket to the set of holes closest to the bracket pivot
using the supplied ¼-20 x5" long screws.
Assemble the Pivot U-Bracket to the set of holes farthest from the bracket
pivot using the supplied ¼-20 x5" long screws.
MM-120
Adjustable Wall Mount
1 pc Speaker adapter assembly
1 pc Instruction sheet
REV00-11012015
