MOXTEK MAGNUM X-ray Quick Start Manual page 5

(Electrical)
The high voltage power supply has a 10 pin connector
(Figure 1). This connector is used to power, control and
monitor the x-ray tube. Table 1 shows the pin-out for the
connector.
An optional 10 lead ribbon cable is available from
Moxtek (Figure 3). This ribbon cable has a 10 pin IDC
connector on one side that connects to the high voltage
power supply and a DB9 connector on the other end that
connects to the Moxtek FTC-200 controller (Table 3).
Pin Assignment for 10 Pin IDC Connector
Function Pin #
Input power 1
Input power 2
Ground 3
Ground 4
Current control 5
HV control 6
Filament ready 7
HV enable 8
HV monitor 9
Current monitor 10
Table 1

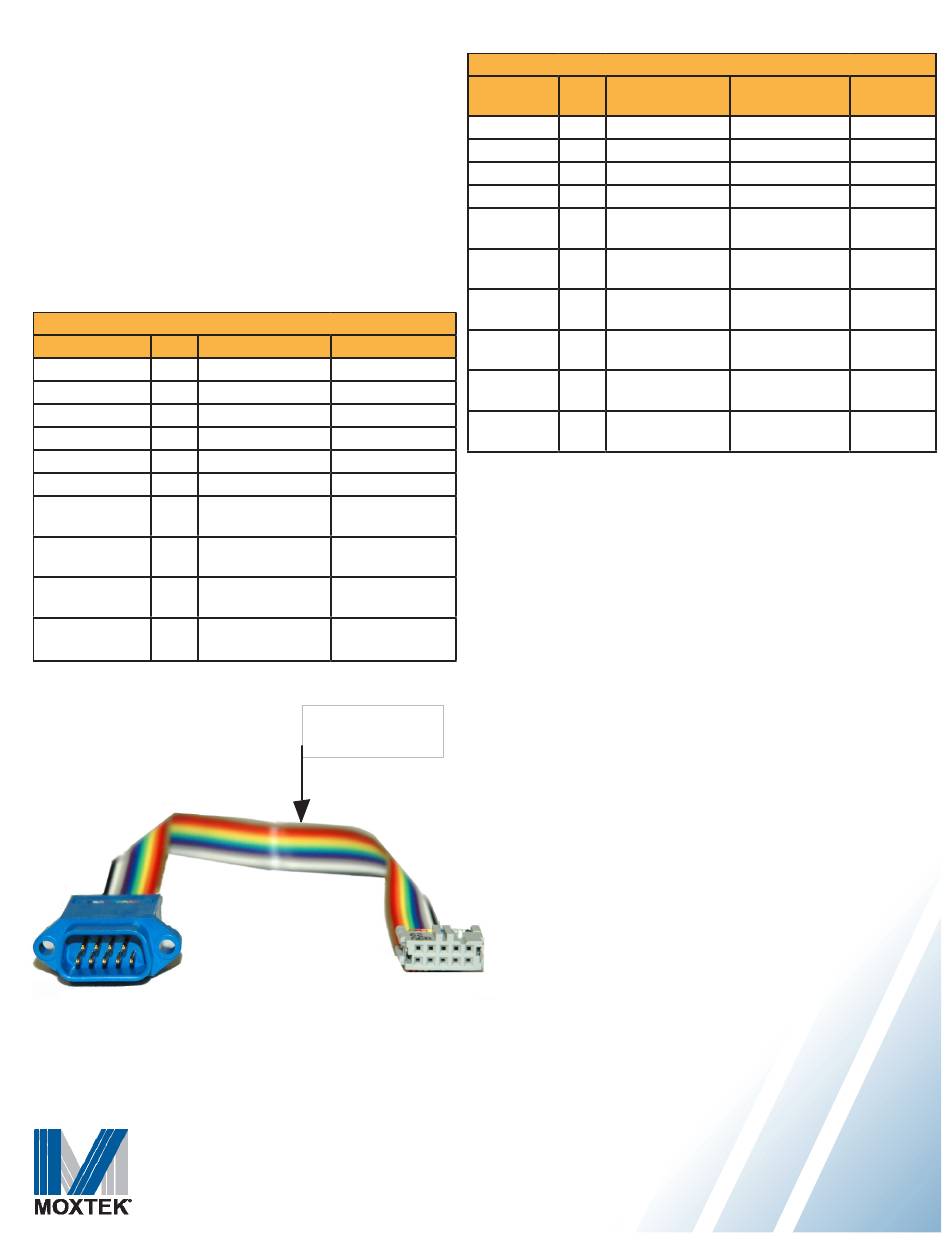

Figure 3: Optional Ribbon
Cable (ASM00362)
I/O Value Response
+6 to +12 V Input power
+6 to +12 V Input power
Ground Ground
Ground Ground
0.0V to +4.0 V 0.0 µA to 200 µA
+0.32 V to +4.0 V -4 kV to -50 kV
0.0 V or +5 VTTL 0 Not ready +5
output Ready
0.0 V or +5 VTTL 0 Disabled, +5
input Enabled
+0.32 V to +4 V Proportional to -4
output kV to -50 kV
0.0 V to +4 V Proportional to 0
output
to 200 µA
Manufacturer: 3M
Part Number: 3473
Pin Assignment for 10 Pin IDC Connector
Function Pin # I/O Value
Input power N/A +6 to +10 V
Input power 1 +6 to +10 V
Ground 2 Ground
HV control 3
+0.32 V to +4.0 V
HV enable 4
0.0 V or +5 VTTL
input
Current 5 0.0 V or +5 VTTL
Monitor output
Ground 6
Ground
Current 7
0.0 V or +4 V
Control
Filament 8 0.0 V to +5 V
ready
output
HV monitor 9
+0.32 V to +4 V
output
Safety Interlock:
To assure safe tube operation, a 5 volt TTL signal is sent
to the power supply to enable x-ray generation. Moxtek
recommends the use of a safety interlock switch when
operating the MAGNUM x-ray tube. Connect the
high voltage enable pin (see Table 2) to the customer
supplied safety interlock switch.
Response
Input power
Input power
Ground
-10 to 50 kV
0 Disabled, +5
Enabled
-4 kV to -50 kV
0 Not ready +5
Ready
0 Disabled, +5
Enabled
Proportional to -4
kV to -50 kV
Proportional to 0
to 200 µA
Table 3
