MAGNUM X-ray Tube Characteristics

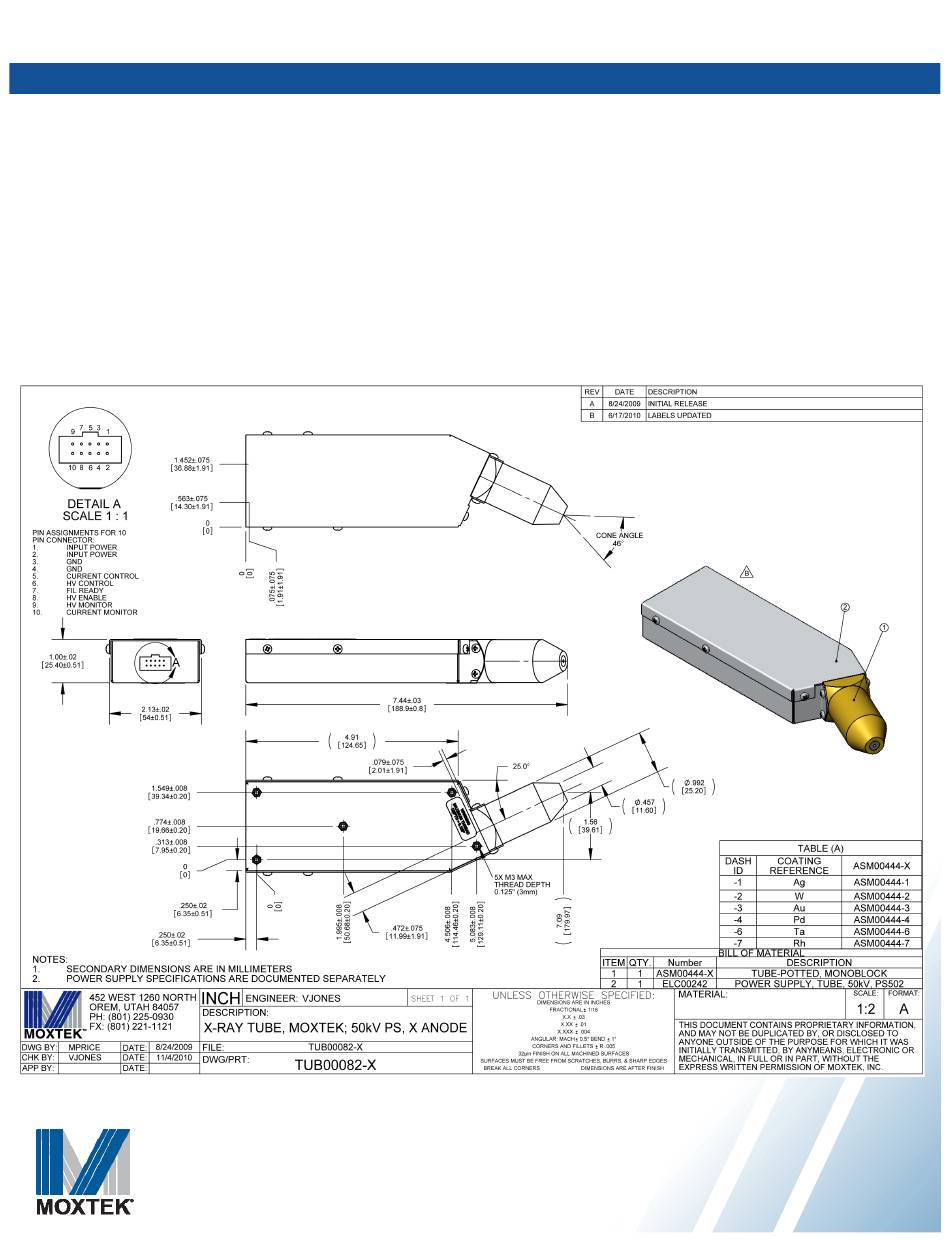

Mechanical Specifications

Tube Type:
Cathode Type:
Operating Temperature:
Storage Temperature:
Cooling:
HV Insulation:
Weight:
Available Targets:
Metal-ceramic
Tungsten filament
-10° to +50°C (for more
details see Figure 2, page 3)
-40° to +85°C
Air
Silicone potting
0.7 lb. (350g)
Ag, W, Au, Pd, Ta, Rh

X-ray Tube Characteristics

HV Polarity: Grounded anode
High Voltage: -4 to -50 kV
Beam Current: 0 to 0.20 mA
4 watts
Maximum Power:
Typical ~ 300 µm
Focal Spot Size:
Beryllium, 0.25 mm thick
Windows:
15W max (6-12 VDC)
Input Power:
One year
Warranty:
TUB-MAN-02050, Rev D
Subject to technical change without notice
