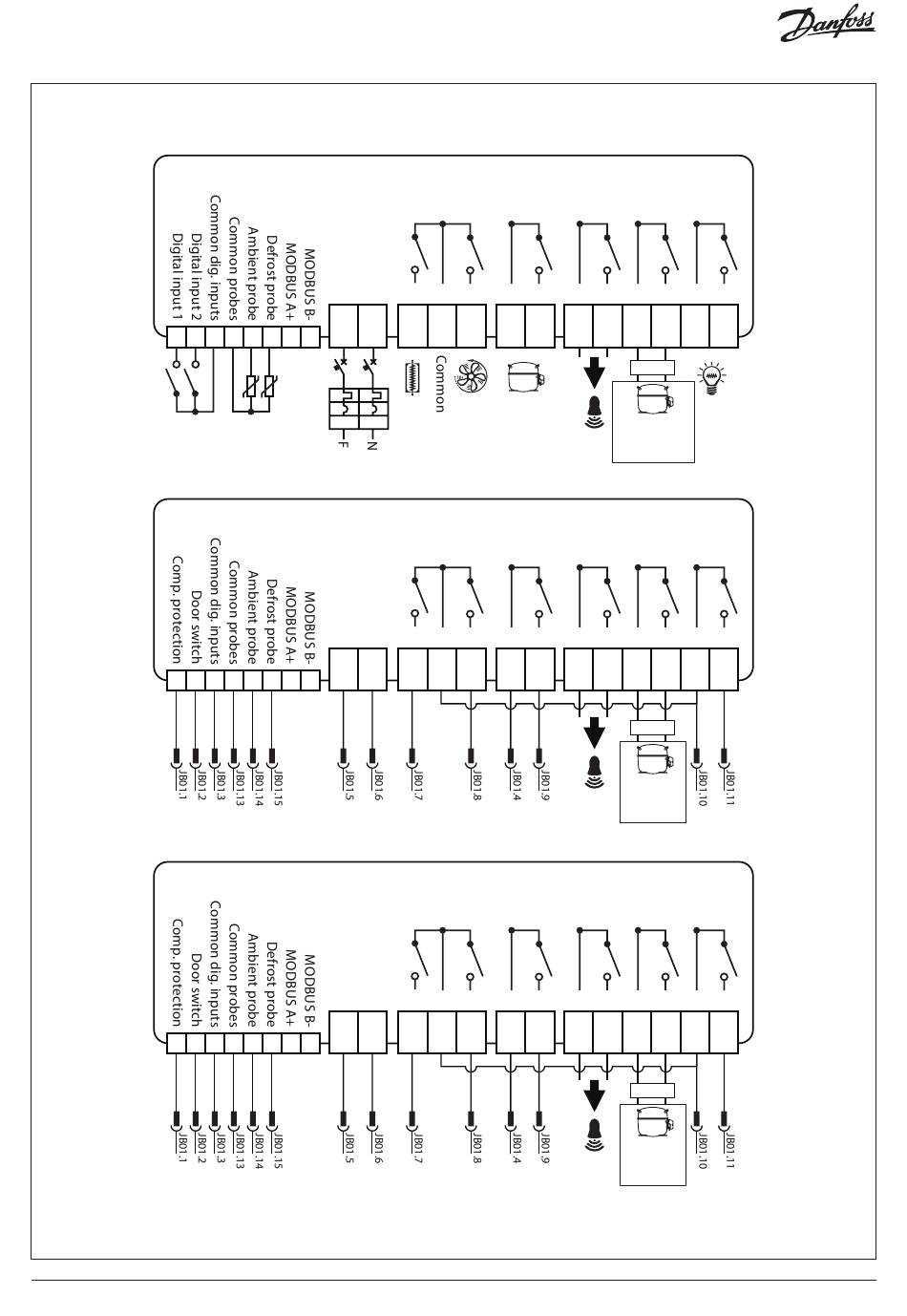

OPTYMA™ Control, single phase
Power
Supply
230 V AC Defrost
9 10 11 12 13 14 15 16 17 20 21 18 19
/d /d
OPTYMA™ Control, three phase (4 HP)
Power
Supply
230 V AC Defrost
9 10 11 12 13 14 15 16 17 20 21 18 19
3 13 14 15 5 6
OPTYMA™ Control, three phase (7.5 HP)
Power
Supply
230 V AC Defrost
9 10 11 12 13 14 15 16 17 20 21 18 19
3 13 14 15 5 6
Fans Compr. Aux1/All. Aux2
Fans Compr. Aux1/All. Aux2
7 L8 4 9
Fans Compr. Aux1/All. Aux2
7 8 4 9
Light
enable
Condensing
unit
Electric
switchboard
Light
enable
L10 L11
Condensing
unit
Electric
switchboard
Light
enable
L10 L11
Condensing
unit
Electric
switchboard
