READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL - DO NOT DISCARD.
Failure to follow these instructions could result in property damage, serious injury or death.

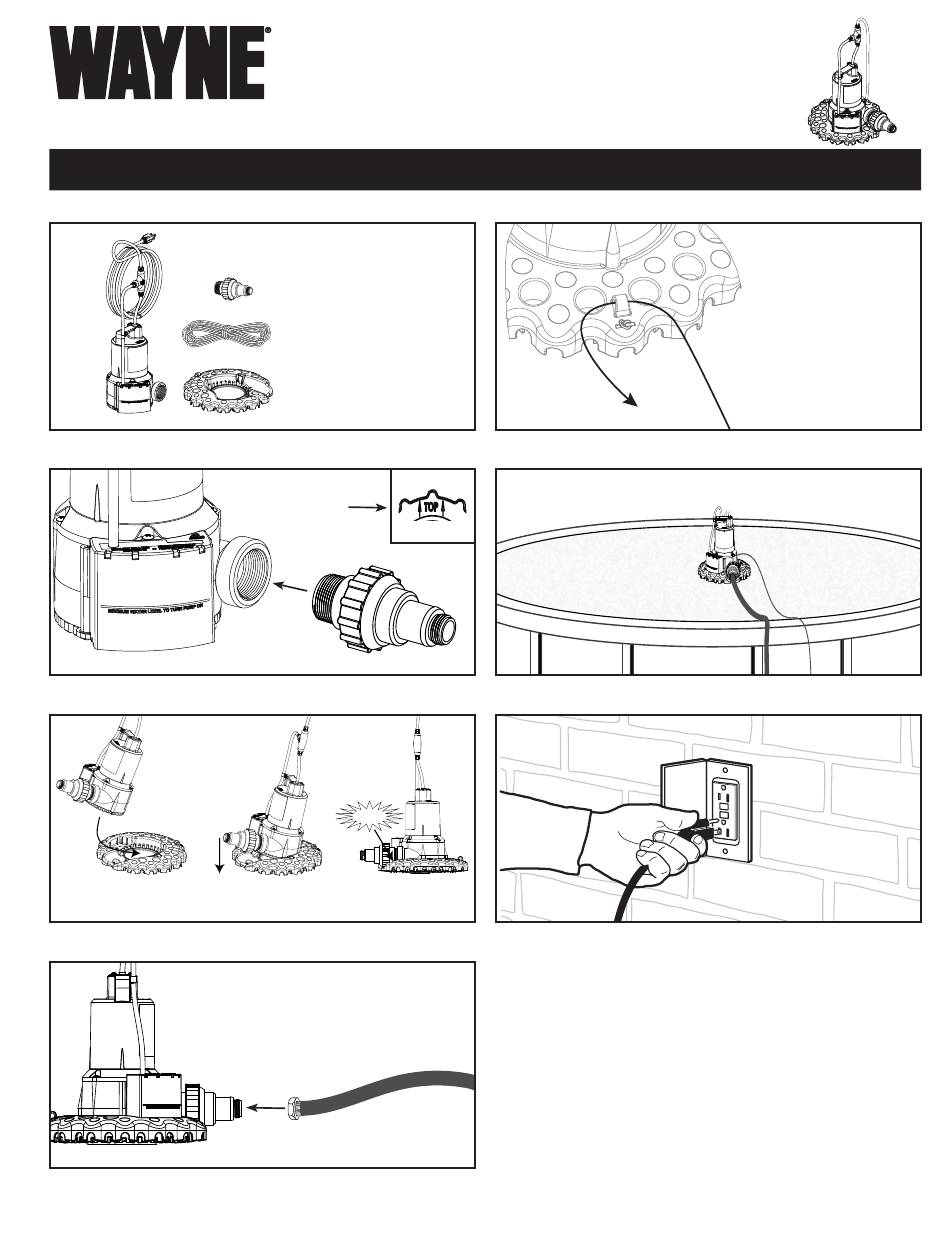

QUICK START INSTRUCTIONS

STEP 1 - VERIFY PACKAGE CONTENTS

STEP 2 - INSTALL CHECK VALVE

STEP 3 - ATTACH STRAINER

ROTATE PUMP
DOWN TO LOCK

STEP 4 - CONNECT GARDEN HOSE

© 2012,
WAYNE/Scott Fetzer Company.

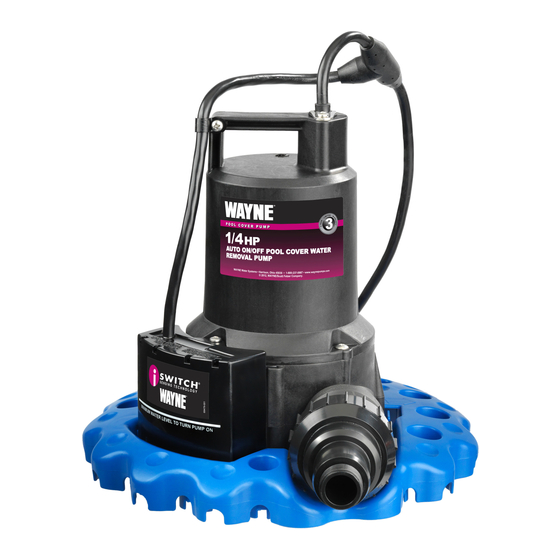

Auto On-Off Water Removal
Pool Cover Pump
OPERATING INSTRUCTIONS & PARTS MANUAL
(1) POOL COVER PUMP
(1) CHECK VALVE/HOSE
ADAPTER
(1) 25' ROPE
(1) PUMP STRAINER
INSTALL CHECK VALVE
SO ARROWS ARE
POINTING UPWARD
CLICK
LISTEN FOR PUMP
TO "CLICK" IN PLACE
For parts, product & service information
visit www.waynepumps.com

STEP 5 - SECURE ROPE TO STRAINER

STEP 6 - POSITION ON POOL COVER

TOP

STEP 7 - PLUG INTO GFCI OUTLET

FOR FURTHER PLACEMENT TECHNIQUES AND
DETAILED INSTALLATION FOR INGROUND AND
ABOVE GROUND POOL APPLICATIONS, REFER
TO PAGE 3 - FIGURES (A-E).
WAPC250
FEED ROPE THROUGH
LOOP ON STRAINER AND
SECURE WITH KNOT
323900-001 4/12
