Wayne WIP100 Operating Instructions And Parts Manual

Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description

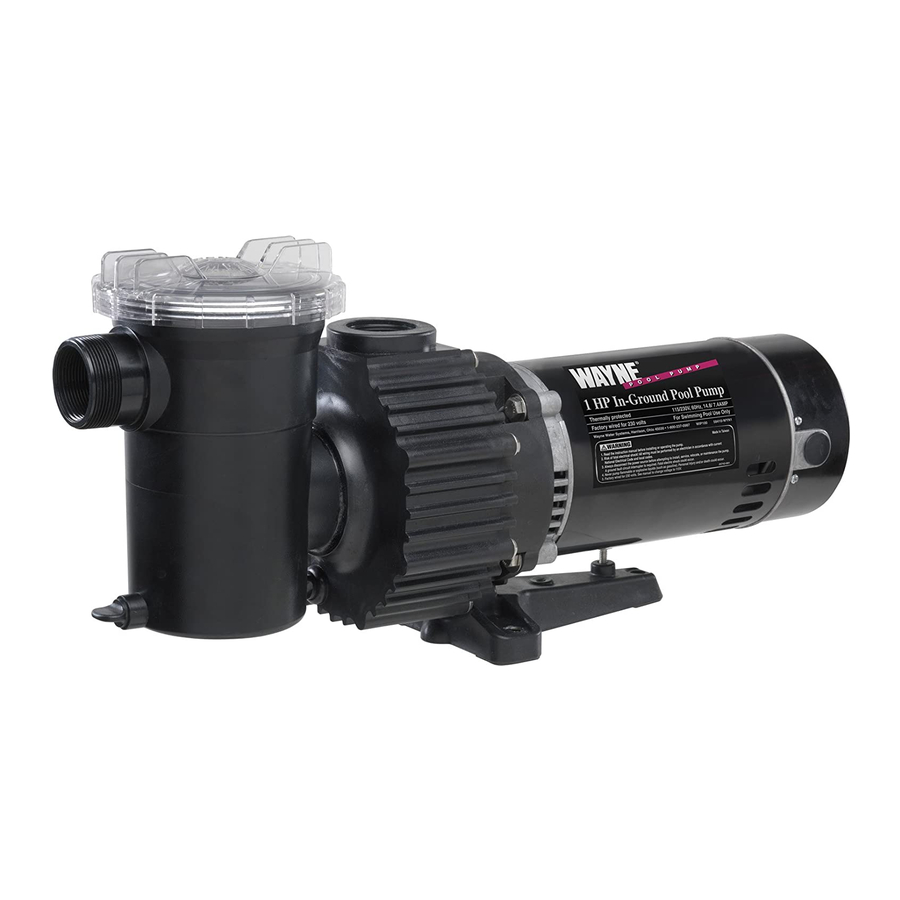

This swimming pool pump is designed for
use with permanently installed pools only.
These pools can be either in-ground or
above-ground.
Unpacking
After unpacking the unit, carefully
inspect for any damage that may have
occurred during transit. Check for
loose, missing or damaged parts.
General Safety
Information
This manual contains information
that is very important to know and
understand. This information is
provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help
recognize this information, observe the
following:
an imminently hazardous situation
which, if not avoided, WILL result in
death or serious injury.
a potentially hazardous situation
which, if not avoided, COULD result in
death or serious injury.
a potentially minor or moderate injury.
important information, that if not
followed, may cause damage to
equipment.
CALIFORNIA PROPOSITION 65
or its power cord may contain
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling.
REMINDER: Keep your dated proof of purchase for warranty purposes!
© 2010 WAYNE Pumps
Pool Pumps
SAFETY GUIDELINES
1. Read these rules and
instructions carefully.
Failure to follow these
instructions could cause serious bodily
injury and / or property damage.
of injury, do not permit children to use
this product unless they are closely
supervised at all times.
is for use with permanently installed
pools. If specified, the pump may be
used with hot tubs and spas. Do not
use with storable pools.
A permanently installed pool is
constructed in or on the ground or in a
building such that it cannot be readily
disassembled for storage. A storable
pool is constructed so that it may be
readily disassembled for storage and
Danger reassembled to it's original integrity.
indicates
Pump only clear water. Do
not pump flammable or
Warning explosive fluids such as
indicates gasoline, fuel oil, kerosene,
etc. Do not use in a flammable and/or
explosive atmosphere. Personal injury
and/or property damage could result.
Caution
indicates
All wiring must be performed
by a qualified electrician.
Notice
The pump must be installed
indicates
in compliance with all local
codes and the National Electrical Code.
2. Do not install within an outer
enclosure or beneath the skirt
of the hot tub or spa, unless so
This
marked.
product
READ & FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DO NOT DISCARD
Attach it to this manual or fi le it for safekeeping.
For parts, product & service information
visit www.waynepumps.com
Installation
MANUAL
LOCATION
Disconnect, tag and lock
out power source before
To reduce
attempting to install, service,
the risk
relocate or perform any maintenance.
Locate pump as close to pool/spa as
possible. Install the pump on a hard,
level surface that is dry, well ventilated
This
and away from direct sunlight. The
pump
surrounding area should provide
protection from the elements and
ample room for maintenance and
service. Ensure the drainage will flow
away from the pump.
Above ground pool pumps are not
self-priming. If suction line valves are
installed, the pump may be located
above water level. Keep the vertical
distance from the water level to a
minimum. Otherwise, the pump must
be located below filled water level to
facilitate priming.
Inground pool pumps are self-
priming. Mount pump below water
level for easy priming. If the pump
must be located above the filled water
level, keep the vertical distance to a
minimum.
GENERAL PLUMBING
SOLVENT WELD CONNECTIONS
Use rigid or flexible PVC pipe. Ensure
pipe ends are clean and free of any
flash caused by the cutting operation.
Use the proper adhesive for the type of
pipe specified. See list of recommended
adhesives on page 2.
NOTE: Use an adhesive primer to
ensure adhesive joints are secure.
Suregard P-3000 has a purple tracer to
qualify in areas where codes specify a
primer must be used.
WIP100, WIP150
320403-001 4/10
