Outback Power Systems FLEXware 1000 User Manual page 14

• Line up either the ACA or DCA (conduit adapters) on its respective side of an FX, starting at
the top.
• To attach a DCA, line up its two screw holes with the upper and lower right DCC screw holes.
• When lined up, loosely install the upper screw to hold the DCA in place (screw can be removed
later when the DCC is installed).
• Slide the DC chassis over snug against the DCA (the screw slots in each chassis are oval-shaped
to allow for movement) so the DCA lines up with the conduit adapter hole on the chassis.
• Install the plastic bushing in this hole (see Figure 11).
• Install the remaining DCA(s) in this same manner. After inserting the bushing into the top DCA,
the remaining DCA(s) will line up and the other bushings can be installed.
• With all the DCA's aligned with the DC chassis and the bushings installed, tighten the DC chassis
screws against the FW-MP.
Each ACA fits against the AC chassis.
ACA

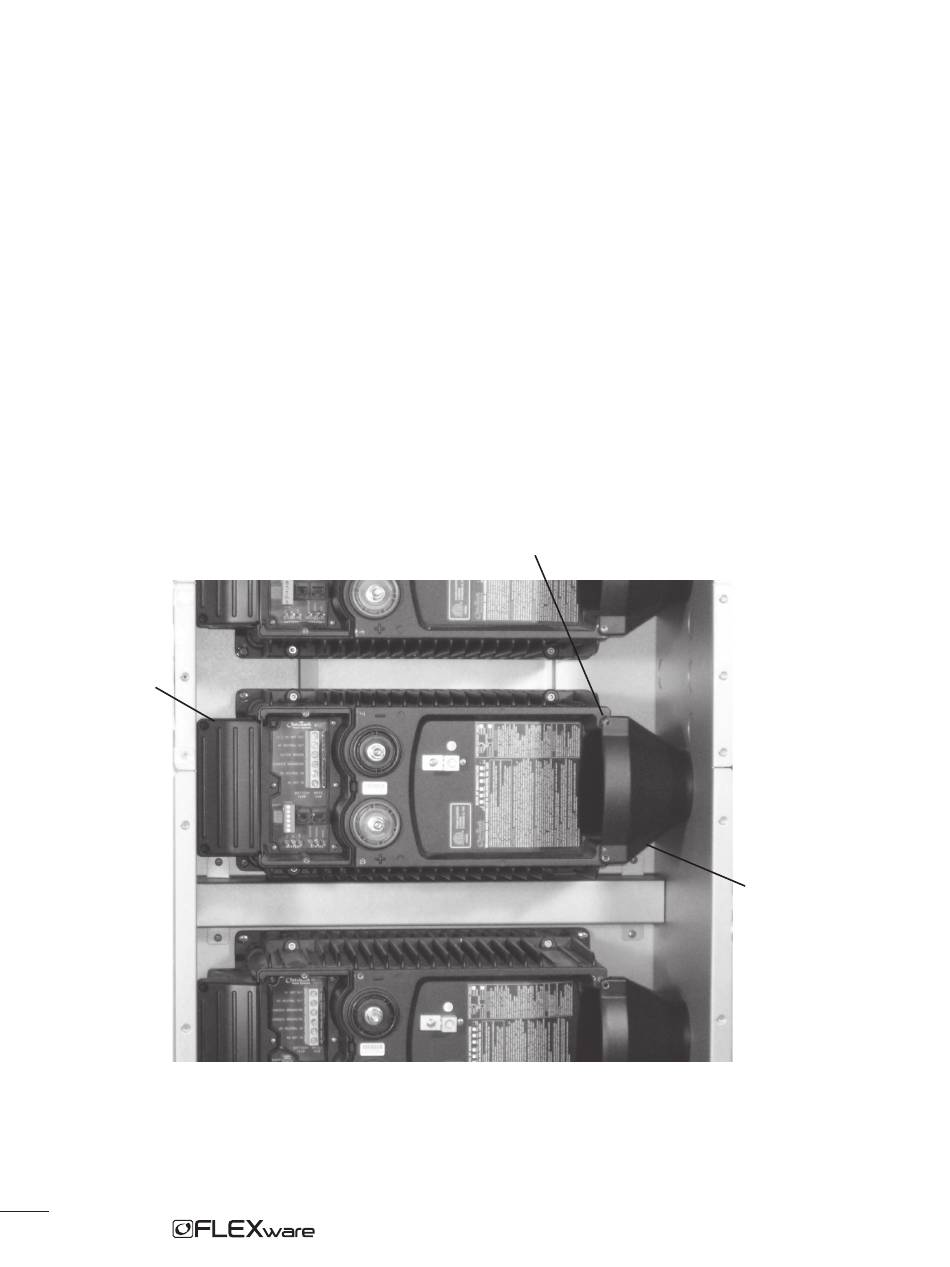

Figure 10: ACAs (left) and DCAs (right) in place
11
A single screw holds the DCA Conduit Adapter in place.
Slide the DC chassis against each DCA to line it up with
the plastic bushing.
DCA
