Digitus DA-70228 User Manual

Introduction:

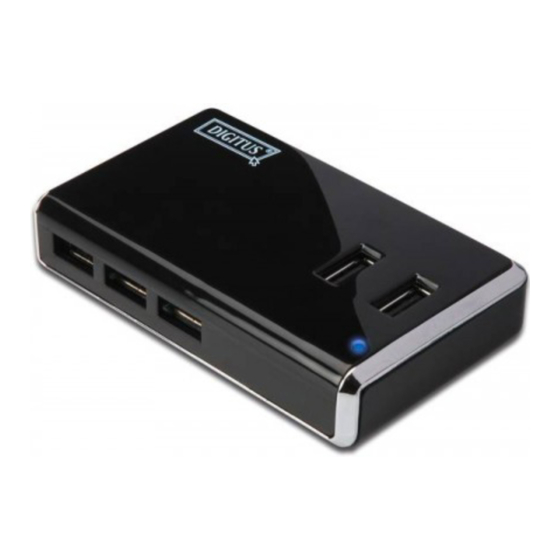

Thank you for purchasing the DA-70228: USB 2.0 10-Port Hub. This easy plug and play external
device is a full featured Universal Serial Bus Hub. It allows your computer to connect to USB
interfaces joysticks, modems, digital speakers, printers, digital cameras, monitors, and many other
USB devices.

Features:

1. Compliant with both USB (Universal Serial Bus) Specification 2.0 (Data Rate 1.5/ 12/ 480 Mbps)
and Revision 1.1 specification.
2. Includes 1 upstream and 10 downstream USB ports.
3. Plug and play.
4. Over-current detection and protection.
5. Connects up to 127 USB devices.
6. Support for following OS: Windows 98SE / 2000 / XP / Vista / 7 and MacOS 10.x and higher

Specification:

Ports Seven downstream port and one upstream port
Compliance CE emissions and FCC regulations for home/office use
Power Self Power: 5V
Adapter: Input: 100~240v 50Hz-60Hz
Output: 5V 4A

Hardware Installation

1. Plug the included AC power adapter into the power jack at the rear of the USB 10 port hub and
an electrical outlet.
2. Plug the Mini-type connector into the upstream port
3. Plug the A-type connector into a computer or USB hub downstream port
4. Connects USB devices or hubs to the 10 port hub's downstream 1 ~ 10 ports.
High-Speed 10-Port USB Hub
User's Manual
(Model No. DA-70228)
