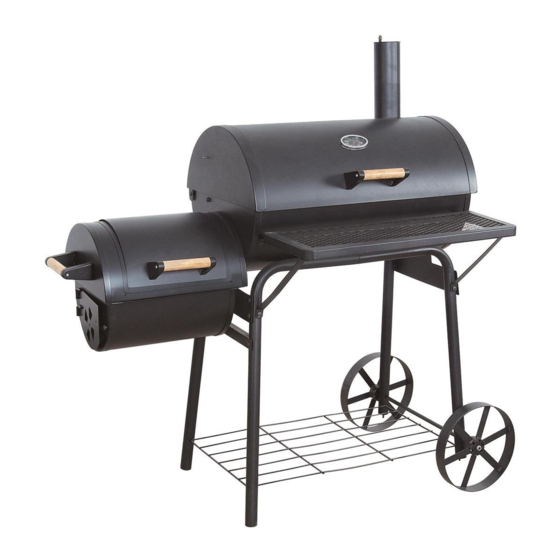

Model 20732 Manual Instruction

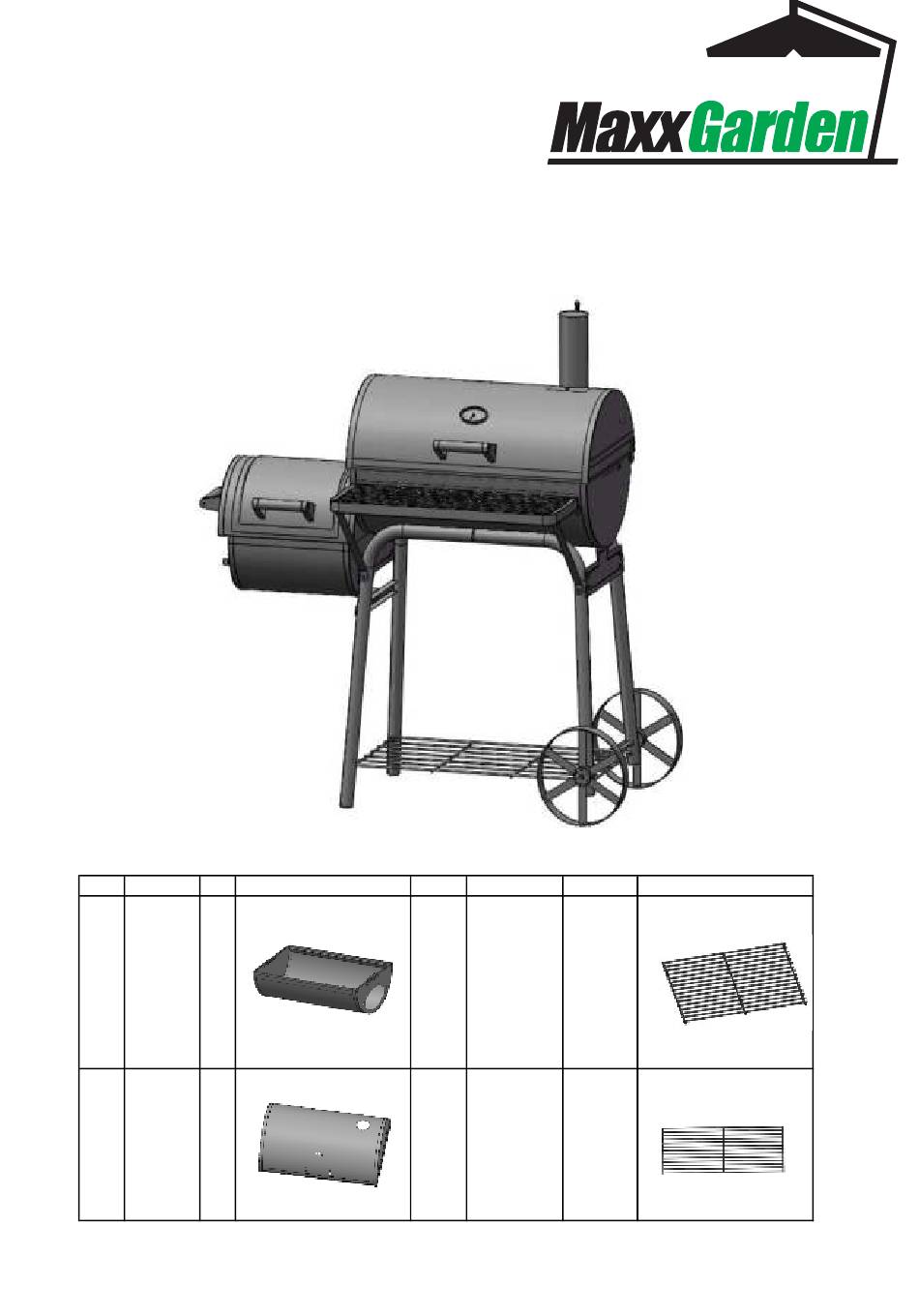

1.Part List
No.
Part
Qty
Grill
1
1
Body
Grill
1
3
Lid
No.
2
4
Part
Qty
Grill Grid
2
Charcoal
1
Grid
