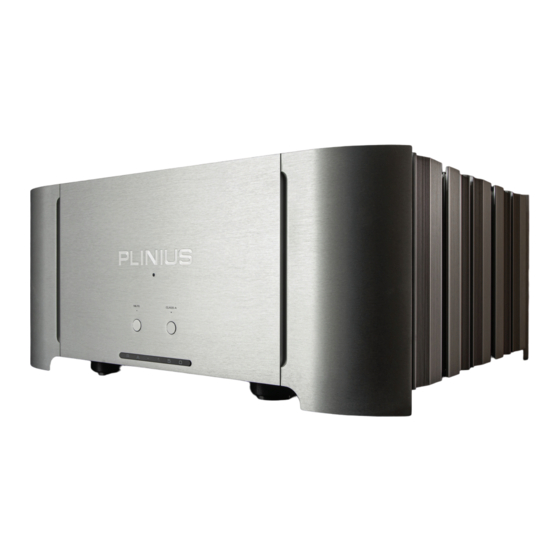

- Page 1 REFERENCE A-150 Power Amplifier Instruction Manual Pure Powerful Sophisticated pliniusaudio.com...
-
Page 2: Table Of Contents
All operational, technical and descriptive material in this publication is subject to change at any time without notice. For further product information or queries, please contact your Plinius dealer. Plinius products are designed and manufactured by Plinius Audio Limited, New Zealand. -
Page 3: Introduction
Introduction Congratulations on your decision to become the proud owner of this Plinius Reference A-150 power amplifier. This manual has been prepared to help you understand the operation of your amplifier, and to provide information about its design and the variety of ways it may be used. -
Page 4: Unpacking
• Ensure a minimum of 400mm clearance on all sides of your Plinius unit to other equipment and the shelf above. Ensure the space between the chassis and shelf below the unit is unobstructed at all times. -
Page 5: Care & Maintenance
From time to time you may wish to clean the surface of your Plinius equipment to remove dust, or any material build up from the atmosphere or on commonly used controls. Your Plinius product is made up of parts that have a hard anodised or a powder coat finish and will clean easily without being damaged. -
Page 6: Precautions
PLEASE TAKE SPECIAL NOTE OF THE FOLLOWING PRECAUTIONS BEFORE OPERATING YOUR NEW AMPLIFIER. • The Plinius Reference A-150 power amplifier can deliver up to 300 watts into 8 ohms. This amplifier is also capable of a very large peak current delivery. •... -
Page 7: Front Panel Functions
Front Panel Functions The front of the Plinius Reference A-150 power amplifier incorporates all the facilities you will require on a daily basis. 1. DISPLAY LED An LED in the centre of the front panel indicates the power is on. When first switched on, the display will vary in brightness until the initialisation sequence is completed, after which the LED remains lit. - Page 8 This feature allows you to leave the Reference A-150 switched ON at all times, rendering the amplifier ready for use and requiring only a few minutes of warm-up in Class A before the very best of the amplifier’s sonic qualities may be experienced.
-
Page 9: Rear Panel Functions
1. INPUT TERMINALS Input terminals for your Plinius Reference A-150 power amplifier are easily accessible and fitted near the top centre area of the rear panel. RCA INPUTS: These standard RCA terminals are for use with unbalanced signals from most signal sources such as audio preamplifiers. - Page 10 Unbalanced leads such as single ended, RCA or coaxial are common and are used in the majority of audio signal systems. The terminal plug and socket are most commonly called RCA and can be found on your Plinius Reference A-150 for use as the standard input terminals for both left and right inputs.
- Page 11 In order to integrate more effectively into a home theatre or multimedia system, the Plinius Reference A-150 has a remote trigger socket on the rear panel. By connecting a preamplifier or processor with a remote trigger output signal to these terminals, the Reference A-150 can be put in and out of Class AB/Mute by the component to which it is connected.
-
Page 12: Installation & Operation
PLACEMENT & OPERATION OF THIS PRODUCT. CONNECTIONS Connections to your Plinius Reference A-150 should be made in the same order as they are listed in this section. DO NOT attempt to connect your Plinius Reference A-150 until you have read and fully understood these instructions. Although these instructions refer to the connection of a preamplifier, the Reference A-150 can also be safely installed into multimedia systems by following the same installation guidelines. - Page 13 Bi-wiring uses two pairs of loudspeaker cables for each channel loudspeaker. You will notice that the rear panel of your Plinius Reference A-150 has two pairs of output terminals for this purpose. Be sure to follow correct practises for stereo and mono configurations when using bi-wiring.
- Page 14 Check the wall outlet is switched OFF, then connect the local mains plug end of the lead to the wall outlet. Check the Reference A-150 is switched OFF, and connect the IEC end of the cable to the IEC socket at the back of the Reference A-150. With the cord fully connected, switch the wall outlet ON.
- Page 15 Use the MUTE switch on the front panel to take the unit out of MUTE and you can now enjoy your new Plinius Reference A-150 power amplifier. NOTE: This unit must be connected to a mains socket outlet with a protective earthing connection.
-
Page 16: Product Features
ECOLOGIC CONTROL The Plinius Reference A-150 is also fitted with a microprocessor which monitors and performs the Bias and Mute functions. It is programmed to switch the amplifier back into Class AB if no signal has been present at the input for a predetermined time. This time can be adjusted to Off, 15, 30 or 60 minutes. - Page 17 IMPORTANT: DO NOT FIT A FUSE WITH A HIGHER RATING. NOTE: Fuse failure may indicate a severe problem. Should the amplifier continue to exhibit mains fuse failure contact your Plinius dealer. PLINIUS REFERENCE A-150...
-
Page 18: Loudspeaker Selection
Loudspeaker Selection Your Plinius Reference A-150 power amplifier is designed for use with high fidelity loudspeakers. It should not be used to operate any other type of appliance or equipment. To avoid speaker damage due to any amplifier clipping, your amplifier should have a higher power rating than your speakers. -
Page 19: Troubleshooting
If the fuse has failed, see Fuse Protection in the Product Features section of this manual. NOTE: If the unit immediately or repeatedly suffers rail fuse failure, there may be a major problem and you should contact your Plinius dealer. POWER FAILURE The unit may have suffered mains fuse failure. -
Page 20: Specifications
-3dB at 70kHz 92W Class AB Idle / Standby DISTORTION DIMENSIONS <0.03% THD at rated output power Height: 220mm (8.75”) Width: 510mm (20”) OUTPUT CURRENT 50A short duration peak per channel Depth: 455mm (18”) Fuse protected Weight: 38kg (83lbs) PLINIUS REFERENCE A-150... -
Page 21: Index
RCA Stereo Input ..............9, 11 Rear Panel Layout ...............8 Remote Trigger ..............10 Safety Precautions ..............5 Serial Number ..............2 Terminations ................12 Troubleshooting ..............18 Unbalanced Signal ..............9 Ventilation ................3 XLR Balanced Mono Input ..........9, 13 XLR Stereo Input ..............9, 11 Warm-Up Period ..............14 PLINIUS REFERENCE A-150... - Page 22 PURE POWERFUL SOPHISTICATED Plinius makes audio equipment for customers that expect high levels of refinement in every aspect of their lives. Our products deliver honest reproduction of the music the artists have recorded, fine designs that are acknowledged as world leading and build quality that will stand the test of time.
