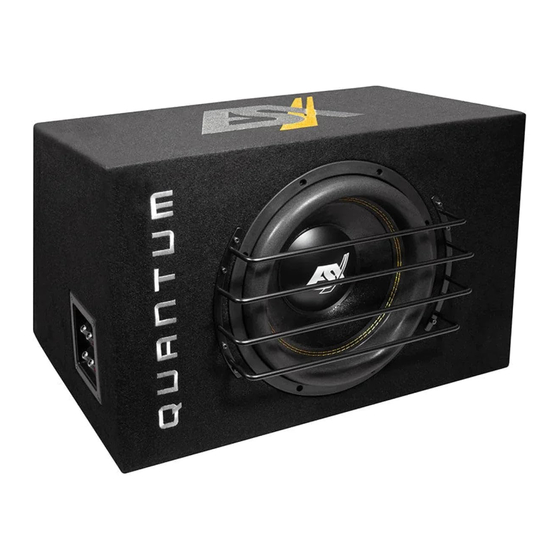

QXB12

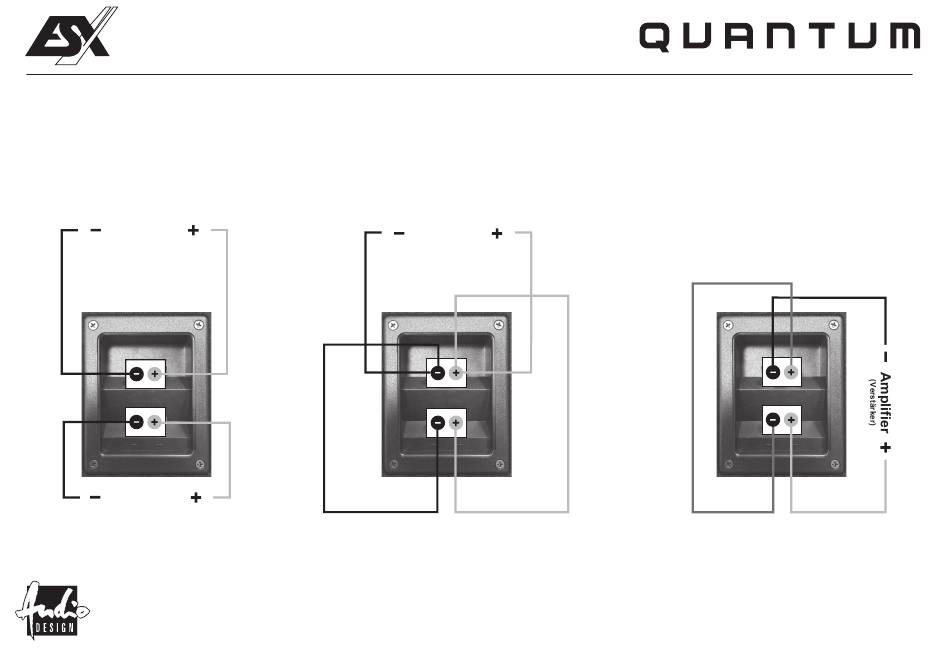

WIRING DIAGRAM
Standard
QXB12 = 2 + 2 Ohm
Amplifier
(Verstärker)
Voice Coil 1
(Schwingspule 1)
Amplifier
(Verstärker)
Voice Coil 2
(Schwingspule 2)
DISTRIBUTION:
Audio Design GmbH · Am Breilingsweg 3 · D-76709 Kronau / Germany
Fon +49 7253 - 9465-0 · Fax +497253 - 946510 · www.audiodesign.de
(Anschlussdiagramm)
QXB12 = 1 Ohm
Parallel
Amplifier
(Verstärker)
Voice Coil 1
(Schwingspule 1)
Voice Coil 2
(Schwingspule 2)
Serial
(Reihe)
QXB12 = 4 Ohm
Voice Coil 1
(Schwingspule 1)
Voice Coil 2
(Schwingspule 2)
Advertisement
Related Manuals for ESX Quantum QXB12
Summary of Contents for ESX Quantum QXB12
- Page 1 QXB12 WIRING DIAGRAM (Anschlussdiagramm) Standard Parallel Serial (Reihe) QXB12 = 2 + 2 Ohm QXB12 = 1 Ohm QXB12 = 4 Ohm Amplifier Amplifier (Verstärker) Voice Coil 1 (Verstärker) Voice Coil 1 (Schwingspule 1) Voice Coil 1 (Schwingspule 1) (Schwingspule 1) Amplifier (Verstärker) Voice Coil 2...
- Page 2 Achten Sie bei der Installation und der Befestigung des Geräts unbedingt darauf, dass keine serienmäßige The ESX QUANTUM subwoofer enclosures are designed for high bass levels. Anyhow it is possible, that Komponenten des Fahrzeugs (Airbags, Sicherheitsgurte, Kabelstränge, Benzintank etc.) durch Bohrlöcher oder unsatisfying sound characteristics could be caused by too low or too high amplifier power.
