- Page 1 HP-TR1 | HP-TR2 Operating Instruction Manual R500-IM-OAJ...
- Page 2 Iwata Revolution Series and NEO For Iwata Series airbrushes deliver soft, effortless coverage at low air pressures. Fine atomization is achieved with the smallest of air compressors, making these airbrushes a simple choice for medium spray applications and for anyone wanting to start airbrushing for the first time.
-
Page 3: Need Assistance

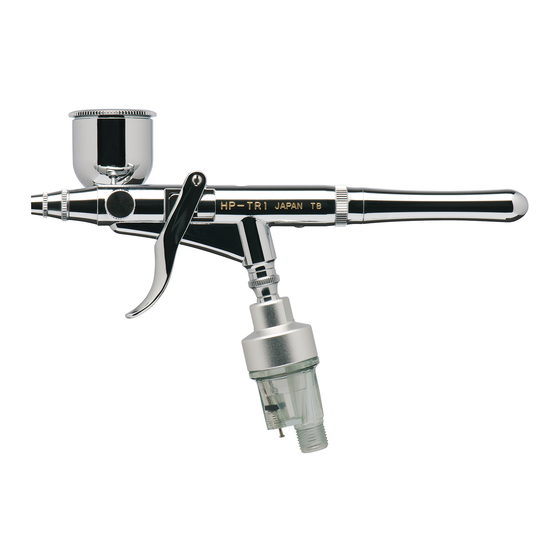

NEED ASSISTANCE If you have any issues or warranty service questions, contact your local ANEST IWATA a liate before returning to your place of purchase. ANEST IWATA-MEDEA, INC. ANEST IWATA CORPORATION ANEST IWATA AUSTRALIA PTY LTD. Portland, Oregon U.S.A. Yokohama, Japan Mt. - Page 4 • Replaceable, internal PTFE needle packing for use with solvent-based paints. • R3 head system • FA450 Iwata Pistol Grip Filter defends against moisture. • Side-feed airbrush design allows the use of side-feed bottles and cups. • .25 oz side-mounted color cup.
- Page 5 • Replaceable, internal PTFE needle packing for use with solvent-based paints. • R5 head system • FA450 Iwata Pistol Grip Filter defends against moisture. • Side-feed airbrush design allows the use of side-feed bottles and cups. • .5 oz side-mounted color cup.
- Page 6 1. Pull the trigger (#9) back slightly and only the air will Stippling come out. 2. Pull the trigger back more until paint starts to spray Iwata airbrushes are designed to produce a wide range of stippling in small amounts. textures. 3. Pulling the trigger back further releases even more paint 1.
-
Page 7: Air Pressure
Line thickness can be controlled by adjusting the distance done and what textures are desired. A good working pres- between the airbrush and the surface and also by varying the sure may average around 25 psi. The viscosity of the paint and paint flow by manipulating the trigger’s position. -
Page 8: Maintenance
MAINTENANCE Choose an Cleaning the Airbrush Between Colors Before Each Session 1. Dump out the color cup’s excess paint. Spray water, or the appropriate paint solvent, through the 2. Rinse the cup with the appropriate cleaning solution. airbrush to make sure the airbrush is working properly. 3. - Page 9 Periodically DO NOT over-lube the needle or the main lever mechanism, To ensure smooth main lever action lubricate the needle since it is possible to transfer excess lube into the nozzle (#17) and the main lever mechanism (#10 or #11) regularly. causing severe paint flow problems.
-
Page 10: Troubleshooting Procedures
TROUBLESHOOTING PROCEDURES Symptom Problem Solution •Bubbles in color cup or bottle •Loose nozzle cap •Tighten (#2) finger tight •Improper nozzle to body connection •See nozzle (#3) to reseat the nozzle •Cracked or damaged nozzle •See nozzle (#3) to replace the nozzle •Double line •Dried paint on needle tip (Tip-Dry) •See cleaning the needle... - Page 11 TROUBLESHOOTING PROCEDURES Symptom Problem Solution •Skipping •Dried paint on needle tip (Tip-Dry) •Clean with cotton swab dipped in cleaner •Pigment too thick •See paint preparation •Air pressure too high •See specific compressor instructions to lower the air pressure •Improper nozzle to body connection •See nozzle (#3) to reseat the nozzle •Dirty airbrush •See cleaning the airbrush between colors...
-
Page 12: Replacement Parts And Accessories
Pistol-Grip Moisture Filter stainless steel that will withstand prolonged usage. They are, The Iwata Pistol-Grip Moisture Filter delivers clean, dry air to however, subject to easy physical damage because of the your airbrush. Miniature in size, the super-fine, 5-micron filter long tapered, extremely fine tip. - Page 14 — I W A T A R E V O L U T I O N H P - T R 1 | H P - T R 2 — PRICE ITEM ALSO PRICE ITEM ALSO # ITEM DESCRIPTION CODE HP-TR1 HP-TR2 FITS...
- Page 15 All Iwata airbrushes are warranted against all manufacturing defects of material and manufacture or workmanship for a period of FIVE years from date of purchase. This warranty does not cover needles, nozzles, o-rings and internal packings since these parts need to be replaced occasionally due to normal wear. Any other parts or materials that are or become defective so as not to be usable within this period will be repaired or replaced.
