Summary of Contents for Iwata Kustom Hi-Line TH

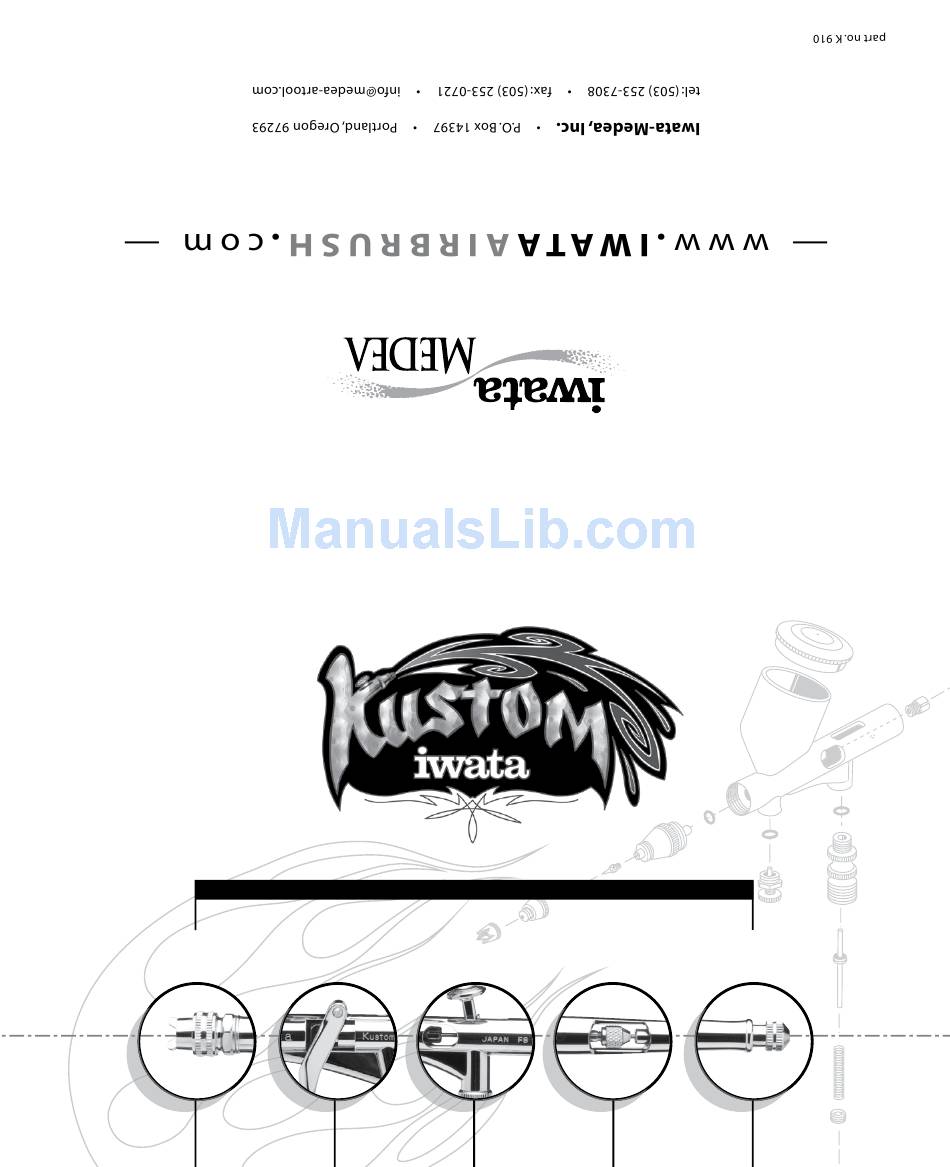

- Page 1 K U S T O M S E R I E S M A N U A L & P A R T S G U I D E Hi-Line TH Revolution TR Micron CM Hi-Line CH Eclipse CS...
- Page 2 Each Iwata airbrush is spray-tested before shipment to assure maximum performance and adherence to Iwata’s strict quality standards. To maintain your Iwata Kustom airbrush at its peak performance, proper care and attention must be observed.
- Page 3 Iwata Kustom Hi-Line TH Airbrush The first airbrush to create both round-pattern and fan-pattern sprays, the Kustom Hi-Line TH stands alone among its peers. Triggering the imagination of auto-body touch-up and Kustom painters, the Kustom TH delivers unprecedented fan pattern control with a minimum of overspray —...
- Page 4 Triggering the passion of spray-gun users, the Kustom performance. Iwata Micron airbrushes are world-renown Revolution TR airbrush proves easy to use. The long trigger as the professional’s choice for the utmost of fine line detail.
- Page 5 — G E T T I N G S T A R T E D — Compressor Turn the compressor on, and if using an Iwata Power Jet Pro, Power Choose an appropriate compressor for your Kustom airbrush. Jet or Power Jet Lite compressor, adjust the pressure to 25 psi. Check The Iwata Sprint Jet or Smart Jet compressors are a good beginner’s...
- Page 6 — M A I N T E N A N C E — Before Each Session of time. Remove and clean needle (refer to “To Clean the Needle” section). At the beginning of each session, spray water or appropriate paint solvent through the airbrush to make sure the airbrush is Periodically working properly.
- Page 7 Needle #36 In time, components of the Kustom Micron CM Head System may Iwata needles are made of precision ground and hardened wear or become damaged and may need to be replaced. The Head stainless-steel and will withstand prolonged usage. They are, however, System is replaceable as a complete set and includes;...
- Page 8 , and all products denoted with ® or ™ are registered trademarks or trademarks of Iwata-Medea Inc. • Iwata® and the Iwata logo are registered trademarks of Anest Iwata Japan • Teflon® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
- Page 9 I 165 1 Spanner Wrench I 083 1 Packing Head Base I 150 7 Packing Center Cup I 070 8 Center Cup Iwata Kustom Hi-Line TH I 718 2 Cup Lid I 714 2 Trigger Screw I 714 1 Trigger K9200...
- Page 10 I 165 1 Spanner Wrench I 070 7 Center Cup I 095 9 Cup Lid I 714 2 Trigger Screw Iwata Kustom Revolution TR I 714 1 Trigger I 731 2 Main Body Ring Screw I 725 3 Teflon Needle Packing K9400...
- Page 11 I 580 2 Packing Fluid Head I 535 2 Fluid Head System 0.23mm I 718 1 Cup Lid Iwata Kustom Micron CM I 545 3 Main Lever I 190 2 Packing MAC Valve I 190 1 Micro Air Control Valve...
- Page 12 Spanner Wrench I 718 1 Cup Lid I 545 3 Main Lever I 190 2 Packing MAC Valve Iwata Kustom Hi-Line CH I 190 1 Micro Air Control Valve I 725 1 Needle Packing Set I 715 1 Needle Chucking Guide...
- Page 13 I 630 1 Spanner Head Cap Wrench I 725 1 Needle Packing Set I 715 1 Needle Chucking Guide with Auxiliary Lever Iwata Kustom Eclipse CS I 135 1 Spring I 770 1 Spring Guide I 617 2 Fluid Needle 0.35mm...
- Page 14 — I W A T A K U S T O M S E R I E S A I R B R U S H E S • M A S T E R P A R T S L I S T — Code # Part Name TH TR CM CH CS...
