Summary of Contents for Iwata Revolution HP-AR
-
Page 2: Need Assistance
If you have any issues with this product, call ANEST IWATA-MEDEA (U.S.A.) 503-253-7308 (M-F 8AM - 4:30PM Paci c Time) or your local ANEST IWATA a liate before returning to your place of purchase. ANEST IWATA-MEDEA, INC. ANEST IWATA CORPORATION ANEST IWATA AUSTRALIA PTY LTD. - Page 3 Revolution Congratulations on your purchase of an Iwata ™ airbrush, a versatile, reliable and dependable airbrush. The Revolution was designed for the new airbrush user or hobbyist seeking Iwata’s famous superior spray quality combined with multi-purpose versatility. VALUE, QUALITY & PERFORMANCE...

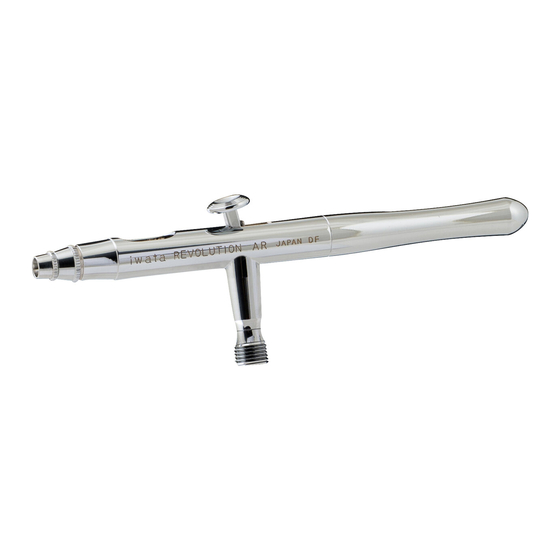

- Page 4 IWATA REVOLUTION AR, BR, SAR, BCR AND CR Start off airbrushing with the industry leader – Iwata. Made for users at all levels, this top-of-the-line Revolution Series brush is a great value. With breakthrough technology and performance, this airbrush outperforms all others in its price range.
- Page 5 Iwata Revolution HP-BR Iwata Revolution HP-SAR • Internal mix airbrush • A breakthrough in bottle-feed, single-action • Ergonomic handle airbrush design • Spray pattern from .75” down to hairlines • Built with the same quality and durability • Smaller nozzle and needle combination (.3mm)
- Page 6 Iwata Revolution HP-BCR Iwata Revolution HP-CR • Internal mix airbrush • Internal mix airbrush • Ergonomic handle • Ergonomic handle • Spray pattern from 1.5” down to fine lines • Spray pattern from 1.5” down to fine lines • Larger nozzle and needle combination (.5mm) allows •...
-
Page 7: Getting Started
Choose an appropriate compressor for your Revolution 10. SAR only: Unscrew the fluid adjustment knob (#15) to airbrush. The Iwata Sprint Jet and Smart Jet compressors open the airbrush nozzle and press down on trigger. are good beginner’s choices and will provide approximately 11. -
Page 8: General Operation
GENERAL OPERATION Fine-Line Spray (AR, BR, BCR, CR) Fine-Line Spray (SAR) 1. Depress the main lever (#6) to start airflow. 1. Depress the main lever (#7) to start airflow. 2. Position the airbrush close to the surface, between 1/16 2. Position the airbrush close to the surface, between 1/16 and 1/2 inch is common. - Page 9 Stippling shade. This will also improve the quality of your work and decrease the cleaning time of your airbrush. Iwata airbrushes are designed to produce a wide range of stippling textures. Safety Tips 1. Unscrew the needle cap (#1).
-
Page 10: Maintenance
MAINTENANCE 1. Remove the paint bottle. 7. Tighten the needle chucking nut finger tight. 2. Attach a bottle containing the appropriate cleaning solution. • Pull the main lever back and forth to visually confirm the 3. Spray until the solution sprays clear. needle’s ability to move. - Page 11 MAINTENANCE Before Each Session 5. Wipe the needle with a soft, clean cloth, leaving a light Spray water or the appropriate paint solvent through the coat of lube behind. airbrush to make sure the airbrush is working properly. 6. Re-insert the needle gently into the airbrush. 7.
-
Page 12: Troubleshooting Procedures
TROUBLESHOOTING PROCEDURES Solution Symptom Problem •Tighten (#2) finger tight •Bubbles in color cup or bottle •Loose nozzle cap •See nozzle (#3) to reseat the nozzle •Improper nozzle to body connection •See nozzle (#3) to replace the nozzle •Cracked or damaged nozzle •See cleaning the needle •Double Line •Dried paint on needle tip (Tip-Dry) - Page 13 TROUBLESHOOTING PROCEDURES Symptom Problem Solution •Skipping •Dried paint on needle tip (Tip-Dry) •Clean with cotton swab dipped in cleaner •Pigment too thick •See paint preparation •Air pressure too high •See specific compressor instructions to lower the air pressure •Improper nozzle to body connection •See nozzle (#3) to reseat the nozzle •Dirty airbrush •See cleaning the airbrush between colors...
-
Page 14: Replacement Parts And Accessories
REPLACEMENT PARTS AND ACCESSORIES Nozzle (#3) Needle (#11) Iwata needles are made of precision ground and hardened In time, the nozzle may wear or be damaged and may need stainless steel that will withstand prolonged usage. They are, to be replaced. - Page 17 Air Valve Guide Screw I 711 1 w/Aux Lever I 115 1 Spanner (The Iwata Wrench) I 765 1 CALIFORNIA PROP 65 WARNING: Certain products identified with this symbol and offered for sale in this catalog contain lead, = yes...
- Page 18 Copyright © 2009 Iwata-Medea Inc. All rights reserved. The Iwata-Medea logo, Iwata-Medea®, Iwata Eclipse™, Iwata Revolution™, Iwata Kustom™, Iwata Micron™, Sprint Jet™, Smart Jet™, Power Jet Pro™, Power Jet Lite™, Medea Super Lube ™, Pistol Grip Filter™, and all products denoted with ® or ™ are registered trademarks or trademarks of Iwata-Medea Inc. • Iwata® and the...
- Page 19 w w w . I W A T A - A I R B R U S H . c o m part no. IR 102 rev5 4/16...
