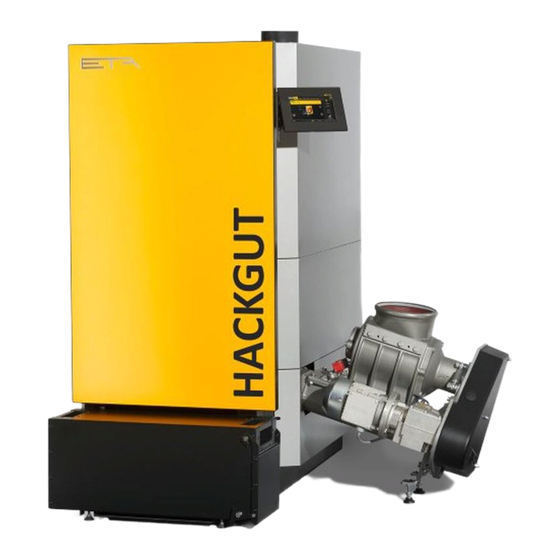

- Page 1 2020-04-21 0000000470 V.006 3.48.0 5402 93150-002 Wood chip boiler eHACK 180 - 240 kW Installation...
- Page 2 ETA Heiztechnik Gewerbepark 1 A-4716 Hofkirchen an der Trattnach Tel: +43 (0) 7734 / 22 88 -0 Fax: +43 (0) 7734 / 22 88 -22 info@eta.co.at www.eta.co.at...
-
Page 3: Table Of Contents
Contents General ................5 Preface. - Page 4 Dismantling, disposal ..............81 www.eta.co.at...
-
Page 5: General
ETAtouch control system of your ETA boiler. A LAN cable is required for the connection Types of safety instruction from the ETAtouch control system to the internet modem. -
Page 6: Warranty, Guarantee And Liability
Only components provided by us may be used for 1. BImSchV. Use fuel classes 5/6/7/8 only after expanding the control system, unless these are consultation with company ETA. generally available standard devices, such as thermo- Operation with unsuitable fuels, in particular high- stats. - Page 7 Repair of defects For repairs of defects carried out by the customer or by a third party, ETA shall only bear the costs or remain obligated by warranty if this work was approved in writing in advance by the customer service of ETA Heiztechnik GmbH.
-
Page 8: Technical Data
Technical data Technical data Wood chip boiler eHACK 180-240 kW The boiler can optionally be supplied with the stoker on either the right or the left side. The illustration shows a boiler with the stoker on the left side. Connection for safety valve, pressure gauge and bleed valve, R5/4“... - Page 9 Technical data The flue gas connection on the boiler does not yet give any indication of the required chimney diameter. Information on the required chimney diameter can be found in the installation instructions for the boiler in the Chimney chapter. Wood chip boiler Unit 53.9 -...
-
Page 10: Energy Labelling
The required buffer volume for the boiler can be found in the assembly instructions. All boilers already have the temperature controller integrated, so every product is a "package-system" (boiler with temperature controller). Wood chip boiler eHACK 180-240 kW Model identification... - Page 11 Technical data Energy Labelling Wood chip boiler eHACK 180-240 kW Model identification Unit Electrical power consumption at maximum 0.473 0.743 0.473 0.743 0.473 0.743 0.473 0.743 load Electrical power consumption at partial 0.126 0.39 0.126 0.39 0.126 0.39 0.126 0.39...
-
Page 12: Regulations, Standards And Guidelines
• EN 12831 "Heating systems in buildings - method for calculating standard heating load" • EN 13384 "Flue systems - thermal and fluid- dynamic calculation methods" • In Germany, DIN 18160 "Flue systems – planning and design" www.eta.co.at... -
Page 13: Ce-Conformity
Heating boilers, Part 1 and 4 We hereby declare that the product in its standard design as stated here corresponds to the above provisions. The technical documentation for this product is administered by ETA Heiztechnik GmbH. Hofkirchen, 21/05/2019 Ing. Johann Eibelhuber... -
Page 14: Boiler Room
[kW] tion from land Requirements for the boiler room ETA) Boiler rooms must be built with fire-resistant F90 (EI90) walls and ceilings; in Switzerland El30 up to 70 kW and EI60 over 70 kW. An escape door to a corridor or to the outside is required. -
Page 15: Safety
Safety General information Safety General information Storage of ash The ash must be kept in non-flammable containers with covers for cooling. Never put hot ash into the Operation only by trained personnel waste bin! The product may be operated by trained adults only. Training may be provided by the heating technician or our customer service. - Page 16 Every heat producer in a heating system must be protected by at least one safety valve against pressure exceeding the maximum permissible operating pressure (see EN 12828). These valves must be designed such as to ensure the maximum www.eta.co.at...
-
Page 17: Emergency Stop Switch
Safety Emergency stop switch permissible operating pressure that can arise in the The safety valve may be installed in any position, but heating system or parts thereof. The safety valve must the upper part of the valve must not face downward. be situated in the boiler room and be easily accessible. -
Page 18: Safety Devices In The Fuel Path
With EN 303-5 "Heating boilers for solid fuels... up to In Austria, a capillary thermostat is supplied 500 kW" safety requirements have now been with all ETA wood chip boilers for this harmonised across Europe. purpose. • Spread of fire in the fuel supply pipe. - Page 19 Safety Safety devices in the fuel path as well as the requirements of TRVB 118 H. That be connected to a pressurised water supply and provides reliable protection against back burning for equipped with a shut-off valve (a ball valve, for wood chips and pellets.
- Page 20 If a fuel conveyor screw goes through the wall separating two fire compartments, then special measures are needed. The fire protection insulation recommended by the relevant standards for the conveyor screw in this situation is exposed to a high risk of damage due to the required maintenance www.eta.co.at...
-
Page 21: Information For Installation
Information for installation Chimney Information for installation Chimney 7.1.1 Planning and layout Required chimney diameter Please note that in partial-load operation the exhaust temperature is lower and the large chimney diameters, normally used for solid fuel, are no longer ideal. If the cross section is too large, the flue gas no longer safely rises from the chimney opening and may flow along the roof and sink to the windows of the living quarters. - Page 22 Provide a short, ascending flue pipe to the chimney The flue pipe from the boiler to the chimney must be short, leakproof and ascending. "Attractive" right-angle flue offsets with two or more bends are bad in a flue www.eta.co.at...
- Page 23 Information for installation Chimney pipe. The optimum to strive for is the shortest pipe from chimney immediately, thus rendering the flue gas recir- the boiler to the chimney with a minimum of direction culation ineffective. This leads to slag formation and changes.
- Page 24 Fig. 7-5: Example: deflagration damper with draught limiter From 60 kW boiler output, we recommend using an deflagration damper. From 100 kW boiler output, an deflagration damper is required. While the most that www.eta.co.at...
-
Page 25: Renovation
Information for installation General information can happen when there is a deflagration in a smaller penetration of the chimney by moisture cannot be boiler is that the connecting pipe to the chimney can be ruled out so that it may be necessary to replace the pulled apart, for larger boilers the gas volume is so inner pipe (Criteria for Determination of Suitability and large that a boiler door can be blown off. -
Page 26: Water Hardness
It is cheap and complete desalination with ion exchange cartridges or chemically stable against contamination. In addition, it osmosis is not required. produces a natural alkalinity that generally results in a sufficiently non-corroding pH value of around 8. www.eta.co.at... -
Page 27: Corrosion
Information for installation Corrosion dimensioned the same as the boiler connection. Also Lime stabilisation can be dangerous place a bleed valve at the highest point in the flow of The addition of lime stabilising agents prevents the overall system. limescale. However, we advise against doing this. These agents increase the salt content and result in an undefined pH value. -
Page 28: Pressure Equalisation
A system separation nitrogen so that it is 0.3 bar higher than the static module with these specifications is available from ETA. pressure at the installation location, but make sure the pressure does not fall below 0.9 bar. -
Page 29: Noise Emission
In normal operation, the airborne noise emissions from ETA sound-insulation set. Design the rigidly a pellet or wood chip boiler is between 40 and 50 dB(a) connected installation (flow and return, thermal... -
Page 30: Buffer Storage Tank
Whereby "first", the morning (=150x12). A SH60 (223 l filling chamber, peaks themselves should be minimised with staggered 223x12=2676 l) requires at least 3300 litres starting times for the heating circuits as well as (=60x55) buffer volume. reasonable set-back temperatures. www.eta.co.at... -
Page 31: Hydraulic Integration
Buffer storage tank Hydraulic integration Hydraulic integration • An automatic heating boiler up to 500 kW rated capacity requires a minimum buffer volume of 25 litres per kW rated capacity. Hydraulic integration of a buffer Hence, a wood chip boiler with 100 kW needs a For the largest possible buffer storage capacity and for minimum buffer volume of 2500 l (=100x25). - Page 32 Boiler, low-temperature circuit return The temperature sensor [Sensor 3] must always be positioned just above the lowest return connection. This is also important for buffers from third parties so that they are not positioned beneath the lowest return connection. www.eta.co.at...
- Page 33 Buffer storage tank Hydraulic integration With solar exchanger and fresh water module With stratified charging module and fresh water module Fresh water module flow Fresh water module flow Temperature sensor [Sensor 1 (upper)] Temperature sensor [Sensor 1 (upper)] Boiler, heating circuits, oil/gas boiler flow Boiler, heating circuits, oil/gas boiler flow Temperature sensor [Sensor 2] Solar flow, top...
-
Page 34: Connection Between Multiple Buffer Storage Tanks
If passage to a door must be kept free or if there is a long distances between buffers, only a serial connection will be possible Flow Solar heating system flow Return Solar heating system return Return www.eta.co.at... - Page 35 Buffer storage tank Connection between multiple buffer storage tanks Tichelmann connection for higher outputs For parallel connection with one-sided connection, the volume of the second buffer is integrated using the thermosiphon principle. The exchange between the two tanks is driven only by gravity and limited by the hydraulic resistance of the junctions.
-
Page 36: Parallel Buffer Connection
The basic principle of the internal Tichelmann is diagonal flow; Two buffers are connected together at the top and bottom (= parallel connection). For output up to 90 kW, a connection with DN 32 (ETA buffer connection set) is sufficient, for 30 kW use at least R1" or 28 mm copper. On one tank, the boiler outlet is connected at the top; on the other the boiler return is connected at the bottom. - Page 37 Buffer storage tank Parallel buffer connection With fresh water module and stratified charging module Boiler, heating circuits, oil/gas boiler flow Oil/gas boiler return Boiler, high-temperature circuit return Low-temperature circuits return Fresh water module flow Temperature sensor [Sensor 1 (upper)] Temperature sensor [Sensor 2] Solar flow, top Temperature sensor [Sensor 3] 10 Solar flow, lower...
-
Page 38: External Tichelmann
11 Hot water 12 Cold water Connecting ball valves on buf- maximum total output Collector line at least 30 kW DN 20 DN 25 R 1" 28 x 1.5 60 kW DN 25 DN32 R 1¼" 35 x 1.5 www.eta.co.at... - Page 39 Buffer storage tank External Tichelmann Connecting ball valves on buf- maximum total output Collector line at least 90 kW DN 32 DN 40 R 1½" 42 x 1.5 160 kW DN 32 DN 50 R 2" 54 x 1.5 300 kW DN 40 DN 65 R 2½"...
-
Page 40: Serial Buffer Connection
Number of buffers Connecting line, minimum 30 kW DN 25 R 1" 28 x 1.5 50 kW DN32 R 1¼" 35 x 1.5 65 kW DN32 R1¼" 35 x 1.5 80 kW DN 40 R1½" 42 x 1.5 www.eta.co.at... - Page 41 Buffer storage tank Serial buffer connection maximum total output Number of buffers Connecting line, minimum 100 kW DN 40 R1½" 42 x 1.5 140 kW DN 50 R2" 54 x 1.5 170 kW DN 50 R2" 54 x 1.5 With fresh water module and stratified charging module Fresh water module flow Temperature sensor [Sensor 1 (upper)] Boiler, heating circuits, oil/gas boiler flow...
-
Page 42: Installation
Fig. 9-2: Flue gas connection An optional sound-insulation set is available An optional sound-insulation set is available for the boiler. If you use this, insert the sound- insulation strips longitudinally under the boiler's base frame and also under the stoker's levelling screws. www.eta.co.at... -
Page 43: Mounting The Air Valve For Flue Gas Recirculation (Optional)
Installation Mounting the air valve for flue gas recirculation (optional) Mounting the air valve for flue gas Mount the flue gas temperature sensor and secure it with the screw. Only hand-tighten the screws so as not recirculation (optional) to damage the temperature sensor. Installing the actuator Insert the adapter into the actuator. -
Page 44: Removing Panels
Fig. 9-9: Side panels Stoker Installing the stoker on the boiler Inspect the affixed seal to ensure it is in good order; replace it if necessary. Fig. 9-8: Electrically connecting the actuator Fig. 9-10: Seal www.eta.co.at... - Page 45 Installation Stoker Mount the levelling screws on the underside of the Fasten the rotary valve on the stoker. Tighten the stoker. Fasten the stoker to the boiler. Tighten the screws alternately and evenly. screws alternately and evenly. Fig. 9-12: Rotary valve Attaching the stoker drive First insert the lowest screw on the stoker and only hand-tighten the nut.
-
Page 46: Assembling The Conveyor
Check whether the conveyor screw is correctly repair, for example. inserted in the open trough. Attach the open trough to the gearbox. Fig. 9-15: Conveyor screw for the open trough Fig. 9-18: Gearbox www.eta.co.at... - Page 47 Installation Assembling the conveyor Carefully insert the conveyor screw into the gearbox. Mount the support stand on the trough. Fig. 9-19: Conveyor screw Thread the open trough through the wall opening from Fig. 9-21: Support stand the storeroom into the boiler room. Place a square Adjust the height of the support stand.
- Page 48 Stauffer grease and connect them. Make sure that the winding is continuous. Make sure that the winding is continuous. Fig. 9-24: Start screw Mount the closed trough on the open trough. Install the drop chute on the trough. Fig. 9-22: Closed trough Fig. 9-25: Drop chute www.eta.co.at...
- Page 49 Installation Assembling the conveyor Attach a seal to the flange. Installing the discharge drive Align the screw conveyor with the drive using the feather key. Fig. 9-26: Seal Lift the discharge and carefully insert the ball joint connection into the opening of the rotary valve. Fig.
- Page 50 Install the bleed screw in place of the plug screw. rotary plate. The rotary plate always rotates anti- clockwise. Note the correct alignment of the claws on the spring arms, see figure below. Fig. 9-30: Bleed screw Fig. 9-32: Spring arms www.eta.co.at...
- Page 51 Installation Assembling the conveyor Adjusting the spring arms Check the alignment of all spring arms. They must be aligned parallel to the trough and may not touch either the trough nor the rotary plate. Turn the rotary plate manually and check all spring arms. Fig.
- Page 52 10 mm. Fig. 9-39: Support stands Tightening the screws Tighten all the screws alternately and evenly. Fig. 9-37: Floor distance If you install a slanted floor, also take the thickness of the boards into account. www.eta.co.at...
-
Page 53: Installing The Drive Chain
Installation Installing the drive chain Installing the drive chain Adjust the chain tension with the turnbuckle. Fixing the ball joint connection Secure the ball joint connection with the two threaded rods and nuts. Tighten the nuts alternately and evenly. Fig. 9-42: Turnbuckle Then tighten the three M16 x 45 screws. -
Page 54: Align Boiler Horizontally
Even if the boiler is not equipped with a precipi- tator, it must still be horizontally aligned because the precipitator may be retrofitted at a later time. www.eta.co.at... - Page 55 Installation Ash box 3. Mount the flap on the ash duct. Do not tighten the Attaching the ash box nut, so that the flap is still movable. Open the flap on the ash box. Fig. 9-49: Flap Fig. 9-46: Flap Fold the locking lever on the boiler forwards.
-
Page 56: Cables
The boiler must be connected to the potential equaliza- tion of the boiler room or the building. Country-specific regulations must be observed. The runners of the boiler features holes to connect the potential equalisation (minimum cross-section 6 mm²). Fig. 9-51: Cable ducts Fig. 9-53: Connect potential equalisation www.eta.co.at... -
Page 57: Bottom Insulation
Installation Bottom insulation 9.12 Bottom insulation Carefully push the floor pan under the boiler until it lines up with the rear end. Pushing in floor insulation Connect both troughs with M5 x 6 screws. The screws are located in the ash box. Then lay the insulation in the floor pan. -
Page 58: Connecting Piping
(siphon funnel), This will ensure that malfunctions, especially a failure of the safety valve to close, can be detected. If no connection is available to the sewage system, the outlet must be directed to the ground in a pipe. Fig. 9-58: Immersion sleeve www.eta.co.at... -
Page 59: Filling The Heating System
Installation Filling the heating system 9.14 Filling the heating system 9.15 Checks Filling the heating system Checking the position of the firebed level sensor Fill the heating system with softened water, refer to Remove the cover from the front of the boiler. chapter 7.3 "Water hardness". -
Page 60: Network Connection
Fig. 9-64: Network cable If the network cable is long enough, connect the plug directly into the router or the ETA PowerLine. If it is not long enough, use a network extension (1x plug / 1x socket) to connect to the router or ETA PowerLine. - Page 61 Installation Network connection...
-
Page 62: 10 Electrical Connections
To do so, a connection must be established the warranty for the electronics would become null and between the boiler and the structural void. potential equalisation in the boiler room (minimum cross-section 6 mm²). Only flexible stranded conductors may be used for the wiring. www.eta.co.at... - Page 63 Electrical connections Requirements Maximum line length for temperature sensor The maximum line length for the electrical connection of the temperature sensor is 20 m. Strain relief required for the supply line A strain relief is required for the supply line to the boiler.
-
Page 64: Overview Of Circuit Boards
Overview of circuit boards Electrical connections 10.2 Overview of circuit boards Overview of boiler circuit boards The [HE-C] circuit board is an extension board and is required for special conveyors, intermediate conveyor screws, etc . www.eta.co.at... - Page 65 Electrical connections Overview of circuit boards...
-
Page 66: Circuit Board Ha-C5
Conveying system (intermediate conveyor 400 V output screw) 400 V output Stoker screw 400 V supply Mains power input 230 V input 3 x 1 mm² Water shortage switch 230 V input 3 x 1 mm² Emergency stop switch www.eta.co.at... - Page 67 Electrical connections Circuit board HA-C5 These terminals can be used (depending on the configuration): Minimum Terminal Function cross-sec- Default assignment tion Safety switch for rotary valve maintenance 230 V input cover Safety switch at drop chute of intermediate 230 V input conveyor screw 230 V input Safety switch drop chute conveying system...
- Page 68 Lambda probe RS-485 bus terminal resistor for analogue input to terminal [S555] Jumper (without jumper: 0-10 V; with jumper: 0-20 mA) for analogue input to terminal [S556] Jumper (without jumper: 0-10 V; with jumper: 0-20 mA) CAN-Bus terminal resistor www.eta.co.at...
- Page 69 Electrical connections Circuit board HA-C5...
-
Page 70: Circuit Board Gm-C3
2 x 0.5 mm² S500 T4 Temperature input 2 x 0.5 mm² S500 T5 Temperature input 2 x 0.5 mm² Outside temperature sensor S500 T6 Temperature input 2 x 0.5 mm² Collector S501 T7 Temperature input 2 x 0.5 mm² Hot water www.eta.co.at... - Page 71 Electrical connections Circuit board GM-C3 These terminals can be used (depending on the configuration): Minimum Terminal Function cross-sec- Default assignment tion Buffer temperature sensor 1 (top) This temperature sensor is always mounted at the top of the buffer. If, for S501 T8 Temperature input 2 x 0.5 mm²...
- Page 72 Circuit board GM-C3 Electrical connections These terminals have already been pre-wired at the factory: Terminal Function Default assignment RS-485 terminal resistor Terminal for plug-in circuit board Terminal for plug-in circuit board CAN-Bus supply +24 V (for stand-alone operation) www.eta.co.at...
-
Page 73: 11 Concluding Activities
Concluding activities 11 Concluding activities Check the direction of rotation of the drive with the aid Reinstall boiler casing of the marking. The correct rotation direction is shown Reinstall the parts of the boiler casing that were in the following diagram. removed during the assembly. -
Page 74: 12 Fuel Store
Once the filling method has been clarified, determine the storeroom dimensions. In principle, this should be dimensioned as large as possible, so that less frequent filling is required. www.eta.co.at... - Page 75 Therefore, the floor agitator is to be offset from the centre. Plans for this are available from ETA. Determining the number of refills With an agitator with a diameter of 4 m and a...
-
Page 76: Tilted Floor
For the fuel discharge, either an agitator or a pellet discharge screw can be used. Special requirements apply to pellet storage rooms. For more information, please contact ETA. Floor agitator for pellets For pellet operation with a floor agitator, the following points must be observed: Fig. - Page 77 Fuel store Pellet operation • To ensure that the pellets are not damaged, only floor agitators up to a maximum of 4 metres in diameter may be used, and the angle of inclination may not exceed 12°. • A special cover plate for pellets is needed on the open trough screw in the store to prevent overfilling of the discharge screw.
-
Page 78: Heating Value
A cubic metre (rm) corresponds to 1 m³ layered logs (1 m length) with air gaps. b. A loose cubic metre (srm) corresponds to 1 m³ of loosely dumped wood chips. c. A solid cubic metre (fm) corresponds to 1 m³ wood without air gaps. www.eta.co.at... -
Page 79: Technical Data
Maximum lengths and inclines Below you will find the information on the maximum lengths and inclinations for conveying systems of different sizes. If deviations from the stated values are necessary, please consult ETA Heiztechnik GmbH. Fig. 12-5: Side view Fig. 12-6: Top view... - Page 80 Total length L < 6 Inclination α < 15° Fill height H < 5 Number of spring arms Deviations from these specifications are only possible in consultation with ETA Heiztechnik GmbH. Agitator for pellets Discharge Unit BG 1 BG 2 BG 2.5...
-
Page 81: 13 Dismantling, Disposal
Dismantling, disposal 13 Dismantling, disposal Dismantling Before dismantling: • Stop heating. Switch off the boiler with the mains switch and ensure that it cannot be switched back • Disconnect the boiler (and possibly also the fuel conveying system) from all power sources. Dismantling is done in the reverse order of assembly. - Page 82 www.eta.co.at...
