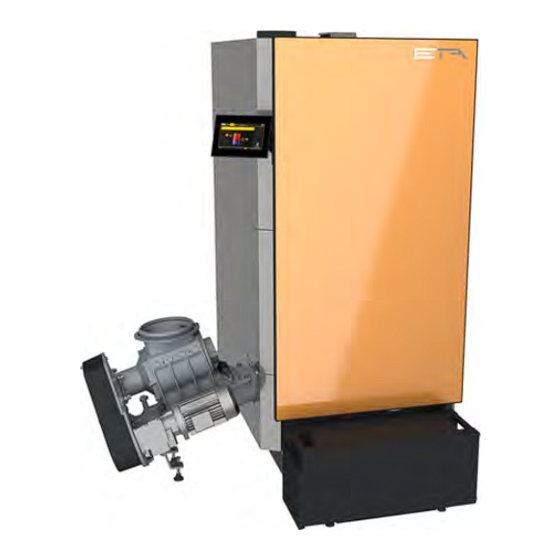

Wood chip boiler
eHACK 60-80 kW
Installation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eHACK 60 and is the answer not in the manual?

Questions and answers

Related Manuals for eta eHACK 60

Summary of Contents for eta eHACK 60

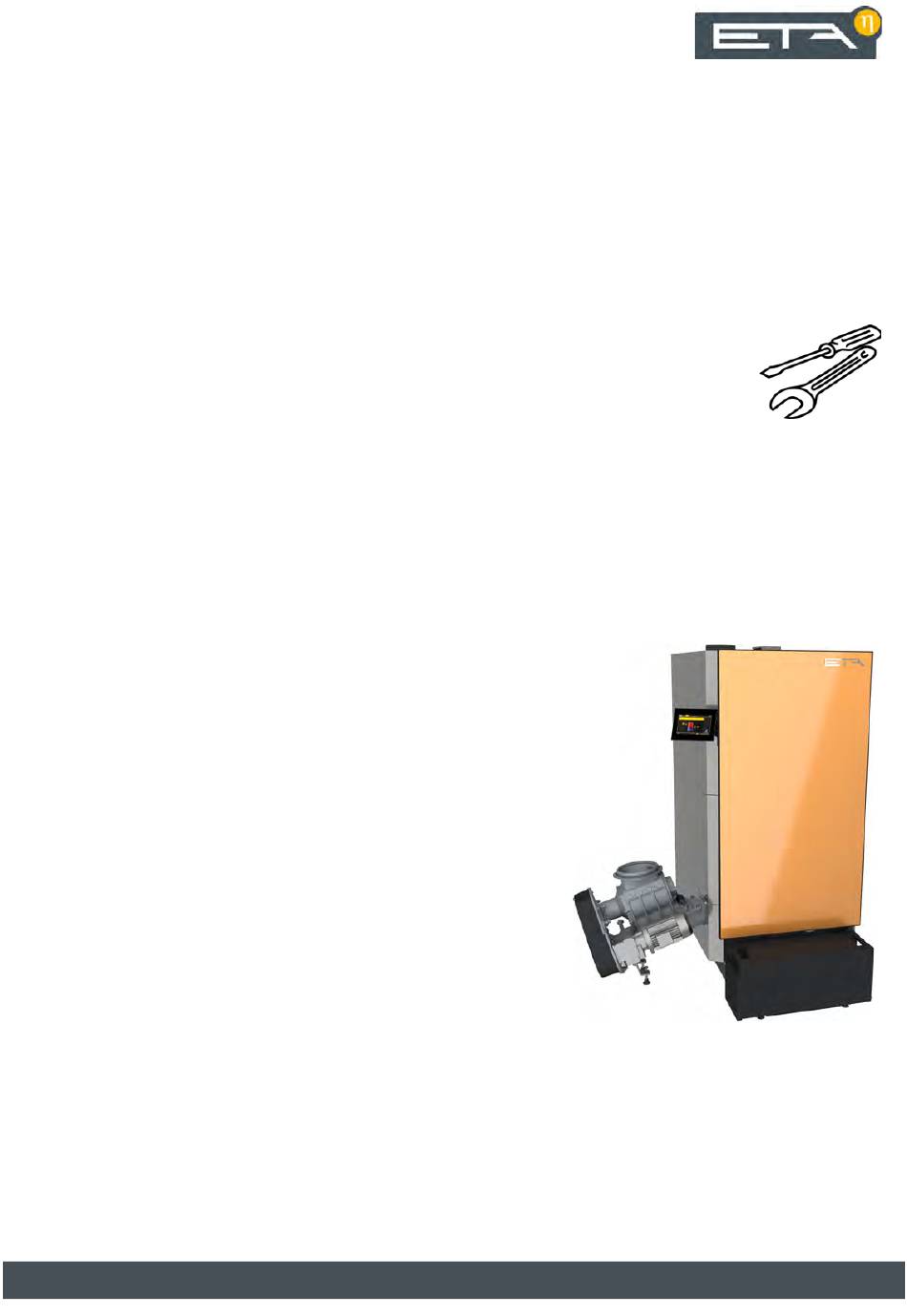

  • Page 1 2022-01-25 0000000351 V.014 3.54.0 5111 93084-005 Wood chip boiler eHACK 60-80 kW Installation...
