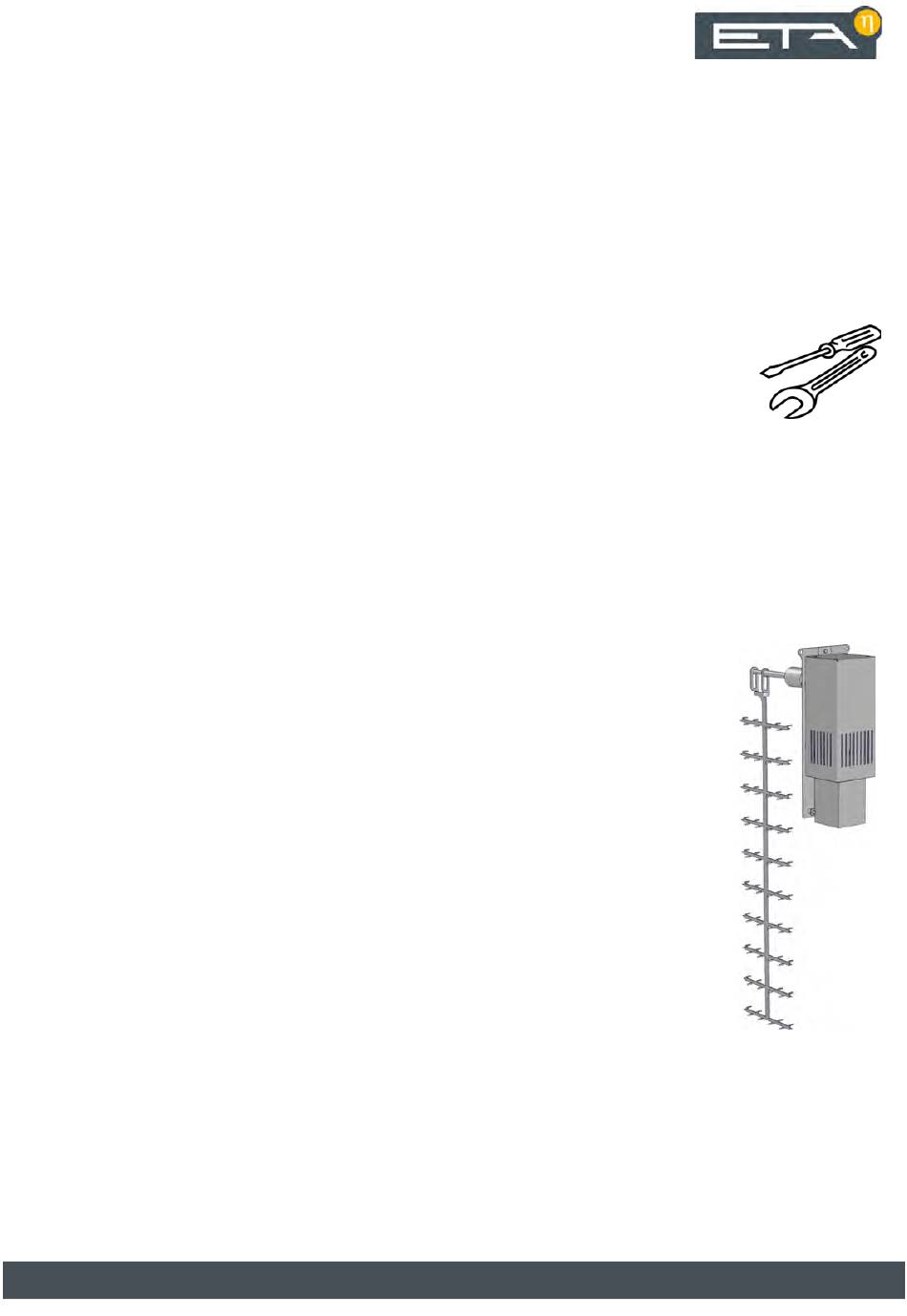

  • Page 1 2017-05-29 0000000382 V.001 3.39.0 93323-001 Precipitator eHACK Operating Instructions...
  • Page 2 ETA Heiztechnik Gewerbepark 1 A-4716 Hofkirchen an der Trattnach Tel: +43 (0) 7734 / 22 88 -0 Fax: +43 (0) 7734 / 22 88 -22 info@eta.co.at www.eta.co.at...

  • Page 3: General Information

    General information General information Copyright DANGER! All contents of this document are property of ETA On non-compliance with this safety instruction, there is Heiztechnik GmbH and are protected by copyright. a risk of major physical injury. Any reproduction, transfer to third parties or use for other purposes is prohibited without written permission from the owner.

  • Page 4: Installation

    Remove the panel from the rear of the boiler. The following description illustrates the retrofitting of a precipitator on a size 1 eHACK boiler (20-45 kW) with the fuel discharge on the left side. The illustrations are equally representative for eHACK boilers of size 2 and if the fuel discharge is located on the right side.
  • Page 5 Installation Reattach the panel. Dismantle all side panels Remove the side panels from each side of the boiler on which the stoker is mounted. Fig. 2-4: Panel Remove the panel on the top Remove the panel on the top of the boiler. Fig.
  • Page 6 Connect the sliding rake with the de-ashing Attach the connecting rods of the sliding rake to the de- ashing levers. For this purpose, use the two special screws (see illustration). Fig. 2-10: Sliding rake dismantled Fig. 2-13: Securing the connecting rod www.eta.co.at...
  • Page 7 Installation Installing the isolator Mounting the high voltage unit Remove the blind cover from the top of the ash box. Mount the support with the high voltage unit on the boiler. Fig. 2-14: Blind cover Insert the isolator from the inside and fasten with the Fig.
  • Page 8 Once the alignment is correct, tighten the screws. Fig. 2-18: Discharge electrode Secure the discharge electrode with a washer and screw. Fig. 2-21: Adjusting the orientation with the long nuts Fig. 2-19: Washer and screw www.eta.co.at...
  • Page 9 Installation Installing the safety switch for the maintenance Then slide the switch a further 2 - 3 mm towards the cover on top pin, so that the switch is actuated and a "click" is clearly audible. Install the maintenance cover on top of the flue duct. Tighten the screws alternately and evenly.
  • Page 10 "click" is clearly audible. Now tighten the adjusting The boiler must be connected to the potential equaliza- nuts on the switch. tion of the boiler room or the building. Country-specific regulations must be observed. Fig. 2-29: Switch set correctly www.eta.co.at...
  • Page 11 Installation The runners of the boiler features holes to connect the potential equalisation (minimum cross-section 6 mm²). Fig. 2-32: Connect potential equalisation...

  • Page 12: Electrical Connections

    Do not carry out work on high voltage units The housing of the high voltage unit may not be opened or damaged as there are parts inside it that are under high voltage. Non-compliance with the above may result in serious or fatal injuries. www.eta.co.at...
  • Page 13 Electrical connections Connecting the high voltage unit Mount the circuit board [EM-C] next to the other boards on the electronics carrier. Then clamp the high-voltage unit to the circuit board [EM-C], see the following diagram. Connect the earthing cable (PE) for the high voltage unit to the fastening screw of the electronics carrier using the enclosed toothed disc.
  • Page 14 Clamp the two safety switches and the sensor for position monitoring pursuant to the diagram below. Secure the wire that is connected to the [EM-C] circuit board on [S103] with a cable strip, so that it does not chafe. Fig. 3-2: Clamp the safety switch and the sensor www.eta.co.at...

  • Page 15: Concluding Activities

    Concluding activities Concluding activities Mount all side panels Mount the boiler side panels. Fig. 4-1: Side panels Mount panel on the top Remount the panel on the top of the boiler again. Fig. 4-2: Panel Maintenance of precipitator The precipitator must be cleaned and checked at regular intervals.
  • Page 16 "Configu- ration" manual supplied with the boiler. Type of precipitator eHack 20-45 kW or eHack 50-80 kW Starting the configuration assistant Serial no. before . In the system settings, increase the authorization Serial no.

  • Page 17: Etatouch Controller

    ETAtouch controller Function block [precipitator] ETAtouch controller Function block [precipitator] Overview of the precipitator Operating condition and information. A description of the operating conditions can be found in the integrated Help menu by pressing the button. Actual voltage value Actual current value...
  • Page 18 www.eta.co.at...
