  • Page 1 User manual Therapy chair Ursberg Seating aids edition 24/21...

  • Page 3: Foreword

    We would like to thank you for your trust extended to us and for purchasing our product. The therapy chair Ursberg distinguishes itself by its quality, security, easy operation and modern design. For optimal use of this aid, we ask you and possible other users to carefully read this operating manual.

  • Page 4: Table Of Contents

    Table of contents Table of contents Topic Page Foreword ……………………………………… Table of contents ……………………………… Safety instructions …………………………… Warranty and product liability ……………… CE Sign and position ………………………… Indications and prophylaxis ………………… 10 Purpose of use ………………………………… 10 Product overview ……………………………… 11 ………………………………...

  • Page 5: Safety Instructions

    Safety instructions Safety instructions The therapy chair Ursberg is CE-marked which they gained from (for example) and fulfils the requirements of the latest training courses. directives. It was developed in line with In the event of specific or difficult most recent findings. Production is subject applications, the user manual represents a to an on-going quality control.
  • Page 6 • The Ursberg may only be used by persons • The operating manual is intended for of a suitable stature and physical aptitude. retailers and users of the therapy chair Ursberg, (or their carers), it contains the •...
  • Page 7 This is indicated by a mark on • Clean the therapy chair Ursberg in the armrests. accordance with the instructions given in • When used as intended, stability in all the chapter „cleaning”.
  • Page 8 Safety instructions We constantly develop new aids and improve existing products. We are happy to receive your suggestions of every description. Page 8/28 (24/21)

  • Page 9: Warranty And Product Liability

    ATO FORM reserves the right to inspect the The warranty can only be sustained if the product being claimed for and the relevant ATO FORM product is in use in the same documentation before agreeing to the country where it was purchased and if...

  • Page 10: Indications And Prophylaxis

    Other contraindications are not known. Purpose of use The Ursberg therapy seat is suitable for chil- The device must be prescribed by a medical dren who cannot sit or stand freely however specialist, who has tested beforehand and...

  • Page 11: Product Overview

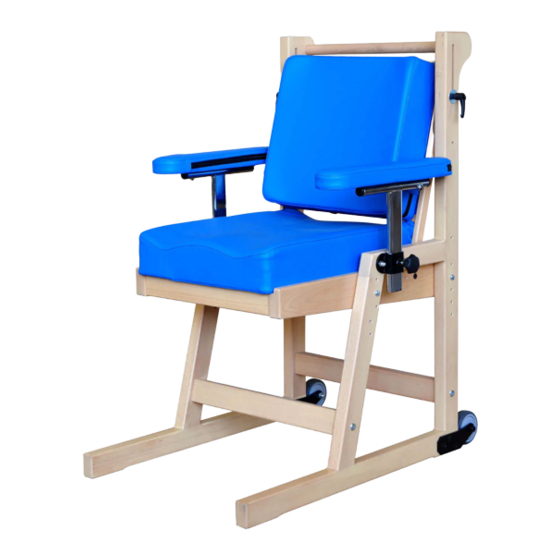

    Product overview Product overview 8.1 Basic model 1. Backrest unit 5. Armrests 2. Adjusting the backrest 6. Height adjustment the armrests 3. Seating unit 7. Footrest 4. Transport rollers 8. Height adjustment the footrest 9. Abductor wedge 10. Chest- and pelvic belt Page 11/28 (24/21)

  • Page 12: Accessories / Options

    Product overview Initial operation 8.2 Accessories / options For a complete overview of our extensive range of accessories for the Name see item 11.2 Types and accessories on page 17. Initial operation The reseller is to unpack the unit and give the assistant have fully understood the basic the buyer the initial instructions on use of functions of the equipment.

  • Page 13: Assembly And Adjustment

    • Two transport wheels at the rear foot end make the therapy seat easy to move. • The Ursberg is made of solid beech and is available in two sizes and two colours. Page 13/28 (24/21)
  • Page 14 Assembly and adjustment Seat height/depth adjustment Seat/back tilt The height adjustment of the seating (1) is carried out by moving the four screws (1A) into the correspondingly pre-drilled holes. In this adjustment range, the seat tilt can also be set up to 15°. The adjustment of the back tilt (2) is carried out by loosening the star screws (2A).

  • Page 15: Accessories / Options

    Assembly and adjustment 10.2 Accessories / options Footrest tilt adjustment The tilt adjustment of the footrest (3) is carried out by loosening the quick-release lever (3 A). Armrests tilt adjustment The height adjustment of the armrests (4) is carried out by loosening the star screws (4 A).
  • Page 16 The groin strap is fastened in accordance with the drawing using the screws supplied. You will find the most current overview of our extensive offer of Ursberg accessories and much more useful information on our homepage www.ato-form-com. Page 16/28 (24/21)

  • Page 17: Types And Accessories

    11 Types and accessories 11.1 Basic model Item No. Size Description UR 5000 Therapy chair Ursberg (without seat and back plate) UR 5100 Therapy chair Ursberg (without seat and back plate) 11.2 Accessories / options Article number for size Description...

  • Page 18: Technical Details

    Technical details 12 Technical details Ursberg Size 1 Size 2 Article number UR 5000 UR 5100 Seat width Seat depth 25 – 33 28 – 40 Backrest height: Seat height: 33 – 43 39 – 49 Calf length: 22 – 35 22 –...

  • Page 19: Cleaning And Disinfection

    Cleaning and disinfection 13 Cleaning and disinfection Leftovers, dirt and dust are always to be Disinfection: removed. Moving parts work easier, if you For disinfecting, use household disinfectants apply one drop of oil after cleaning. and consider the following indications: Cleaning the metal parts: The assistant must wear suitable protective The painted and chromed parts of the...

  • Page 20: Maintenance And Overhaul

    • Please contact your specialist dealer to carry Fasteners, bolts, nuts and springs are out corrective maintenance works for your secure Ursberg. • Replacement of parts if there is any sign The device should be checked by the of wear •...
  • Page 21 Maintenance and overhaul Date Service performed Name Sign Page 21/28 (24/21)

  • Page 22: Operating Life And Re-Use

    Operating life and Re-use 15 Operating life and Re-use The Ursberg is made from high quality The product Ursberg was designed so it materials and is subject to a continuous could be reused after the application of quality control in our house. Because of various measures.

  • Page 23: Faults, Repairs, Spare Parts

    Only original accessories and original spare parts may be used. Non-compliance with these instructions and repairs carried out or modifications made to the Ursberg or its parts by unauthorized persons, voids any warranties. In these cases, any product liability granted...

  • Page 24: Storage

    17 Storage Keep this operating manual in a safe place, The current version of these where you or care and maintenance staff instructions for use can be have access to it. found on our homepage in the download area. You can find more informati- on about the product on our homepage at www.ato-form.
  • Page 25 Page 25/28 (24/21)
  • Page 26 Page 26/28 (24/21)
  • Page 27 In environmental protection matters: All packaging parts are re-useable. The cardboard packaging is to be recycled as waste paper. We therefore use paper as filler material. Possible used plastic film of the packaging are made out of PE and are therefore low in pollutant and can either be recycled or burnt.
  • Page 28 Hoists ■ Customized solutions ■ Thank you for your interest in our products. For questions please contact ATO FORM GmbH or your specialist dealer. Your ATO FORM Team ATO FORM GmbH Zur Lauterhecke 34, 63877 Sailauf, Germany Tel. +49 6093 944-0, Fax +49 6093 944-444 E-Mail: info@ato-form.com...
