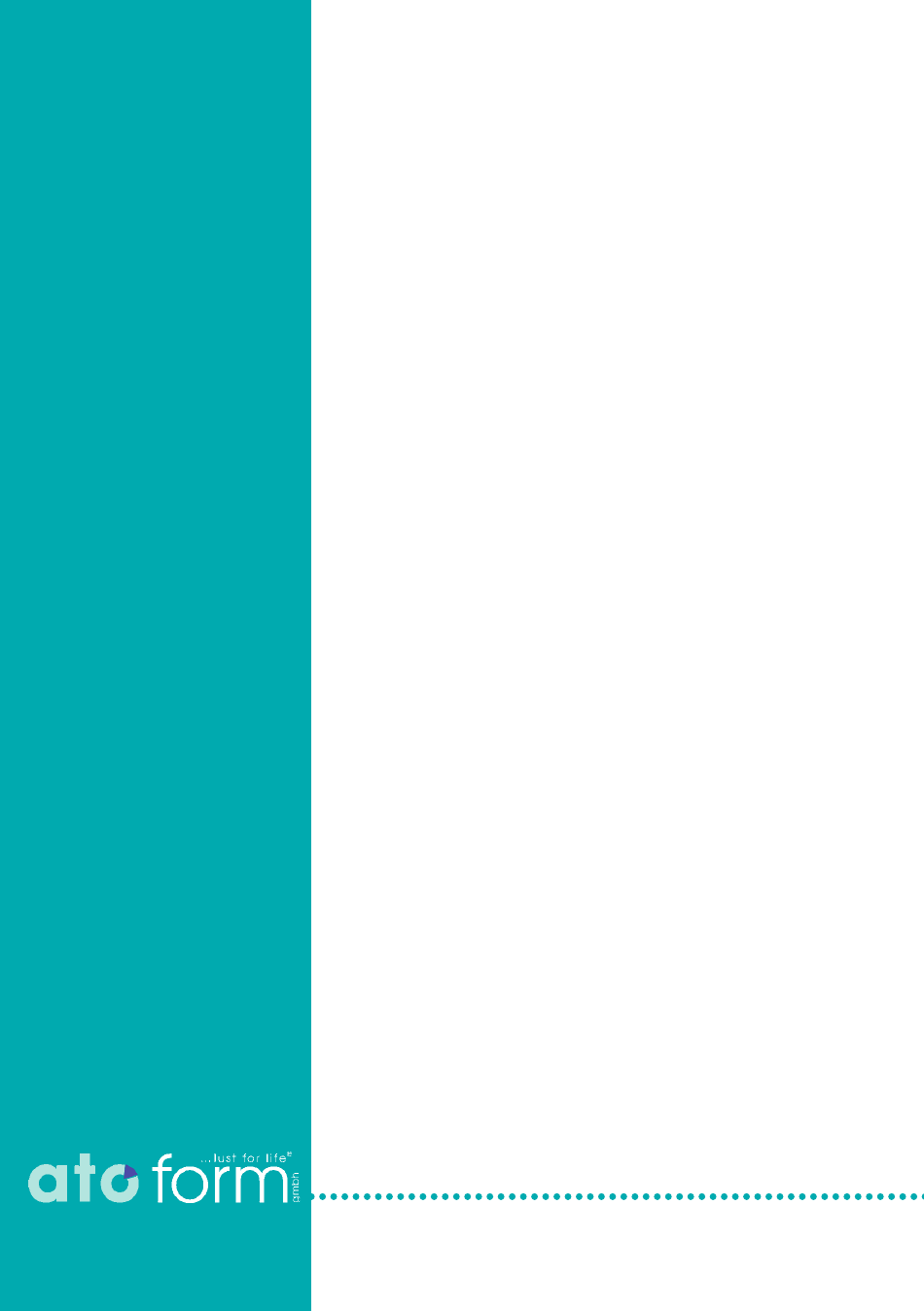

  • Page 1 User manual Therapy chair Elefant Seating aids edition 26/21...

  • Page 3: Foreword

    We would like to thank you for your trust extended to us and for purchasing our product. The therapy chair Elefant distinguishes itself by its quality, security, easy operation and modern design. For optimal use of this aid, we ask you and possible other users to carefully read this operating manual.

  • Page 4: Table Of Contents

    Table of contents Table of contents Topic Page Foreword ……………………………………… Table of contents ……………………………… Safety instructions …………………………… Warranty and product liability ……………… CE sign and position ………………………… Indications and prophylaxis ………………… 10 Purpose of use ………………………………… 10 Product overview ……………………………… 11 ………………………………...

  • Page 5: Safety Instructions

    Safety instructions Safety instructions The therapy chair Elefant is CE-marked experience and knowledge of operators, and fulfils the requirements of the latest which they gained from (for example) directives. It was developed in line with training courses. most recent findings. Production is subject In the event of specific or difficult to an on-going quality control.
  • Page 6 • The operating manual is intended for • The Elefant may only be used by persons retailers and users of the therapy chair of a suitable stature and physical aptitude. Elefant, (or their carers). It contains the •...
  • Page 7 „cleaning”. carer or user. • Please ensure before use the product • Do not use the therapy chair Elefant is cleaned according to the cleaning before checking the wheels of the aid. instructions and if indicated also •...
  • Page 8 Safety instructions Please keep the supplied connection board. When the footplate is fully re- moved, the elements in the four bottom holes must be tightened to ensure the stability of the seat. We constantly develop new aids and improve existing products. We are happy to receive your suggestions of every description.

  • Page 9: Warranty And Product Liability

    ATO FORM reserves the right to inspect the The warranty can only be sustained if the product being claimed for and the relevant ATO FORM product is in use in the same documentation before agreeing to the country where it was purchased and if...

  • Page 10: Indications And Prophylaxis

    The Therapy Chair Elefant is suitable specialist, who has tested beforehand and for physically disabled children aged up determined if the therapy chair Elefant is to approximately 6 years old. suitable for the individual therapeutic goal Thanks to its great variability, the chair of the patient.

  • Page 11: Product Overview

    Product overview Product overview 8.1 Basic model Pushbar Backrest padding Hip pelots Armrest Abduction wedge (Option) Foot straps Footboard Rolls Page 11/24 (26/21)

  • Page 12: Accessories / Options

    8.2 Accessories / options Backrest, long, incl. thoracic pads, for For a complete overview of our extensive additional support of the upper body range of accessories for the Elefant see item 11.2 Types and accessories on page 17. Therapy table Abduction wedge...

  • Page 13: Initial Operation

    Initial operation Initial operation The reseller is to unpack the unit, ensure the assistant have fully understood the basic that the components and accessories listed functions of the equipment. This is the only in the scope of delivery are all present and way to prevent the user from dangerous undamaged, and give the buyer the initial situations.

  • Page 14: Assembly And Adjustment

    Assembly and adjustment 10 Assembly and adjustment 10.1 Basic model Preparation: Unpack the product and remove the pack- ing materials. The device is completely assembled. Ensure that the product is complete and undamaged. Adjusting the seat depth Slightly loosen the number 6 and 7 knobs (on the right and left sides of the chair).
  • Page 15 Assembly and adjustment Adjusting the angle of the footplate Slightly loosen the number 1 and 2 knobs (on the right and left sides of the chair). Set the desired angle and tighten the knobs. Adjusting the length of the footrests Slightly loosen the tilt-clamping levers behind the heel cups.

  • Page 16: Accessories / Options

    Slightly loosen the number 11 knob. Set the headrest to the desired height and tighten the knob. For a complete overview of our extensive range of accessories for the Elefant see item 11.2 Types and accessories on page 17. Page 16/24 (26/21)

  • Page 17: Types And Accessories

    Types and accessories 11 Types and accessories 11.1 Basic model EF-1000 Therapy chair Elefant 11.2 Accessories / options The therapy chair Elefant has the following system accessories: EF-1100 Long back incl. thoracic pelotte EF-1200 Therapy table EF-1300 Abduction wedge EF-1400...

  • Page 18: Technical Details

    Age group ca. 3 – 6 Technical changes reserved! Construction The Therapy Chair Elefant consists of: Coloured laminated plywood and powder- coated steel pipe for the push bar or handle. The upholstery and support elements are made of foam and covered with artificial leather, which is easy to maintain.

  • Page 19: Cleaning And Disinfection

    Cleaning and disinfection 13 Cleaning and disinfection Leftovers, dirt and dust are always to be Disinfection: removed. Moving parts work easier, if you For disinfecting, use household disinfectants apply one drop of oil after cleaning. and consider the following indications: Cleaning the wooden surfaces: The assistant must wear suitable protective The wooden surfaces should be cleaned...

  • Page 20: Maintenance And Overhaul

    Please contact your specialist dealer to carry • No signs of damage or wear out corrective maintenance works for your therapy chair Elefant. Frame The device should be checked by the • Metal parts; no signs of damage or wear, manufacturer at the latest after 3 years.
  • Page 21 Maintenance and overhaul Date Service performed Name Sign Page 21/24 (26/21)

  • Page 22: Operating Life And Re-Use

    Only original accessories and original spare parts may be used. Non-compliance with these instructions and repairs carried out or modifications made to the Elefant or its parts by unauthorized persons, voids any warranties. In these cases, any product liability granted...

  • Page 23: Storage

    Storage 17 Storage Keep this operating manual in a safe place, The current version of these where you or care and maintenance staff instructions for use can be have access to it. found on our homepage in the download area. You can find more informati- on about the product on our homepage at www.ato-form.
  • Page 24 Hoists ■ Customized solutions ■ Thank you for your interest in our products. For questions please contact ATO FORM GmbH or your specialist dealer. Your ATO FORM Team ATO FORM GmbH Zur Lauterhecke 34, 63877 Sailauf, Germany Tel. +49 6093 944-0, Fax +49 6093 944-444 E-Mail: info@ato-form.com...
