- Page 1 User manual Toilet seat lift Liftolet-Tilty Liftolet-Tilty Duo Bath and WC edition 23/21...
-
Page 3: Foreword
Dear Customer! We would like to thank you for your trust extended to us and for purchasing our product. The Toilet seat lift Liftolet-Tilty (models Liftolet-Tilty, Liftolet-Tilty Duo) distinguishes itself by its quality, security, easy operation and modern design. For optimal use of this aid, we ask you and possible other users to carefully read this operating manual. -
Page 4: Table Of Contents
Table of contents Table of contents Topic Page Foreword ……………………………………… Table of contents ……………………………… Safety instructions …………………………… Warranty and product liability ……………… CE sign and position ………………………… Indications and prophylaxis ………………… 10 Purpose of use ………………………………… 11 Product overview ……………………………… 12 ………………………………... -
Page 5: Safety Instructions
Safety instructions Safety instructions The Toilet seat lift Liftolet-Tilty is CE-marked In the event of specific or difficult and fulfills the requirements of the lastest applications, the user manual represents a directives. It was developed in line with guide to the most important handling. - Page 6 Safety instructions Safety instructions • Before mounting or using the Toilet • The Liftolet-Tilty may only be operated by persons who have familiarized themselves seat lift Liftolet-Tilty carefully read all with the standards and rules of the instructions of this user manual, as these present operating manual.
- Page 7 • Clean the Toilet seat lift Liftolet-Tilty in • The Liftolet-Tilty is connected via a power accordance with the instructions given in plug to a standard household wall socket.
- Page 8 Safety instructions We constantly develop new aids and improve existing products. We are happy to receive your suggestions of every description. Page 8/32 (23/21)
-
Page 9: Warranty And Product Liability
ATO FORM reserves the right to inspect the The warranty can only be sustained if the product being claimed for and the relevant ATO FORM product is in use in the same documentation before agreeing to the country where it was purchased and if... -
Page 10: Indications And Prophylaxis
Purpose of use The device must be prescribed by a medical specialist, who has tested beforehand and determined if the Liftolet-Tilty is suitable for the individual therapeutic goal of the patient. Furthermore, the medical special- ist has determined the aid to be suitable according to measurements, weight and willingness of the patient to use the aid. -
Page 11: Product Overview

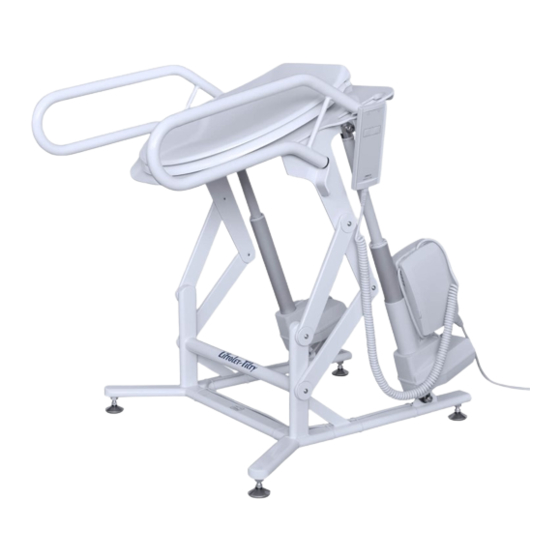

8.1 Basic model 1. Lifting columns 2. Carrier plate for the WC seat 3. WC-seat with lid 4. Upward folding support handles 5. Remote control 6. Rechargeable battery unit Image model Liftolet-Tilty Duo with maximum capacity 155 kg. Page 11/32 (23/21) -
Page 12: Accessories / Options
Product overview Initial operation 8.2 Accessories / options For a complete overview of our extensive range of accessories for the Liftolet-Tilty see item 11.2 Types and accessories on page 19. Initial operation The reseller is to unpack the unit, ensure... -
Page 13: Assembly And Adjustment
Assembly and adjustment 10 Assembly and adjustment 10.1 Basic model Preparation: Unpack the product and remove the pack- ing materials. The device is completely assembled. Ensure that the product is complete and undamaged. One-man assembly: • Liftolet can be mounted by one person. Space requirement: •... - Page 14 Assembly and adjustment Mounting: • After the conditions are given for Attention: mounting, place the Liftolet-Tilty over the When positioning the Liftolet-Tilty, do WC and position correctly. not grasp it by the support handles but only by the lifting columns.
- Page 15 Assembly and adjustment Liftolet Tilty can be equipped with a Attention rechargeable battery unit, which can be Make sure that the charging cable is permanently supplied with charging current outside the area of use. via the control unit. LED power indicator Battery Steady yellow Charging (battery not ready) Attention...
- Page 16 Assembly and adjustment Commissioning Attention, The following steps are required for restar- To avoid an unintended function, it is ting the system when the system is started pointed out that several keys must not up for the first time and in the event of a be pressed simultaneously.
- Page 17 Assembly and adjustment How it works: Attention: To prevent unintended There are two buttons on the hand control operation for example that move the toilet seat up and down to- by children, the support gether with the support folding handles. arms should be folded Sit down: upwardly when not in...
-
Page 18: Accessories / Options
Assembly and adjustment 10.2 Accessories / options For a complete overview of our extensive range of accessories for the Liftolet-Tilty see item 11.2 Types and accessories on page Page 18/32 (23/21) -
Page 19: Types And Accessories
11.1 Basic model Article number description LT-1000-T toilet seat lift Liftolet-Tilty LT-1000-TD toilet seat lift Liftolet-Tilty Duo 11.2 Accessories / options Liftolet-Tilty can optionally be equipped with a battery. The most up-to-date overview of our extensive range of accessories for... -
Page 20: Technical Details
Technical details 12 Technical details Liftolet-Tilty / Liftolet-Tilty Duo LT-1000-T LT-1000-TD Overall width 54.6 Overall depth 64.2 Seat height front 45.6 Seat height back 48.7 Seat inclination (support plate) Degrees 4° Inclination of the support plate extended Degrees 25° Lifting height support plate front 53.4... - Page 21 40.5 cm 64.2 cm Page 21/32 (23/21)
-
Page 22: Cleaning And Disinfection
Cleaning and disinfection 13 Cleaning and disinfection In order to ensure lasting trouble-free Disinfection: operation of the Liftolet in almost all For disinfecting, use household disinfectants operating conditions influenced by the and consider the following indications: existing conditions on site, please note the following: The assistant must wear suitable protective clothing (for example gloves) in order to... - Page 23 Page 23/32 (23/21)
-
Page 24: Maintenance And Overhaul
Please contact your specialist dealer to carry of wear • out corrective maintenance works for your No signs of wear of damage of the safety Liftolet-Tilty. components The device should be checked by the manufacturer at the latest after 3 years. Page 24/32 (23/21) - Page 25 Maintenance and overhaul Date Service performed Liftolet-Tilty Sign Page 25/32 (23/21)
-
Page 26: Operating Life And Re-Use
Operating life and Re-use 15 Operating life and Re-use The Liftolet-Tilty is made from high quality The product Liftolet-Tilty was designed so materials and is subject to a continuous it could be reused after the application of quality control in our house. Because of this various measures. -
Page 27: Faults, Repairs, Spare Parts
Faults, repairs, spare parts 16 Faults, repairs, spare parts If your Toilet seat lift Liftolet-Tilty cannot be Only original accessories and original spare operated? parts may be used. Non-compliance with these instructions and repairs carried out or Please ensure….. modifications made to the Liftolet-Tilty or •... - Page 28 Page 28/32 (23/21)
- Page 29 Page 29/32 (23/21)
-
Page 30: Storage
Storage 17 Storage Keep this operating manual in a safe place, The current version of these where you or care and maintenance staff instructions for use can be have access to it. found on our homepage in the download area. You can find more informati- on about the product on our homepage at www.ato-form. - Page 31 Disposal of battery operated devices The battery pack must not be disposed of together with normal household waste at the end of its service life. Please observe the legal requirements in your area. Your municipal government and locally based waste disposal companies will be happy to provide you with information in this regard.
- Page 32 Hoists ■ Customized solutions ■ Thank you for your interest in our products. For questions please contact ATO FORM GmbH or your specialist dealer. Your ATO FORM Team ATO FORM GmbH Zur Lauterhecke 34, 63877 Sailauf, Germany Tel. +49 6093 944-0, Fax +49 6093 944-444 E-Mail: info@ato-form.com...
