Syris SYSR86N-HBX1 Manual

Standard tcp/ ip reader
Hide thumbs Also See for SYSR86N-HBX1:

Advertisement

Quick Links

Download this manual
SYSR86N-HBX1
Standard TCP/ I P Reader
Manual
Version 01.04
2016/ 04/ 25

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYSR86N-HBX1 and is the answer not in the manual?

Questions and answers

Related Manuals for Syris SYSR86N-HBX1

Summary of Contents for Syris SYSR86N-HBX1

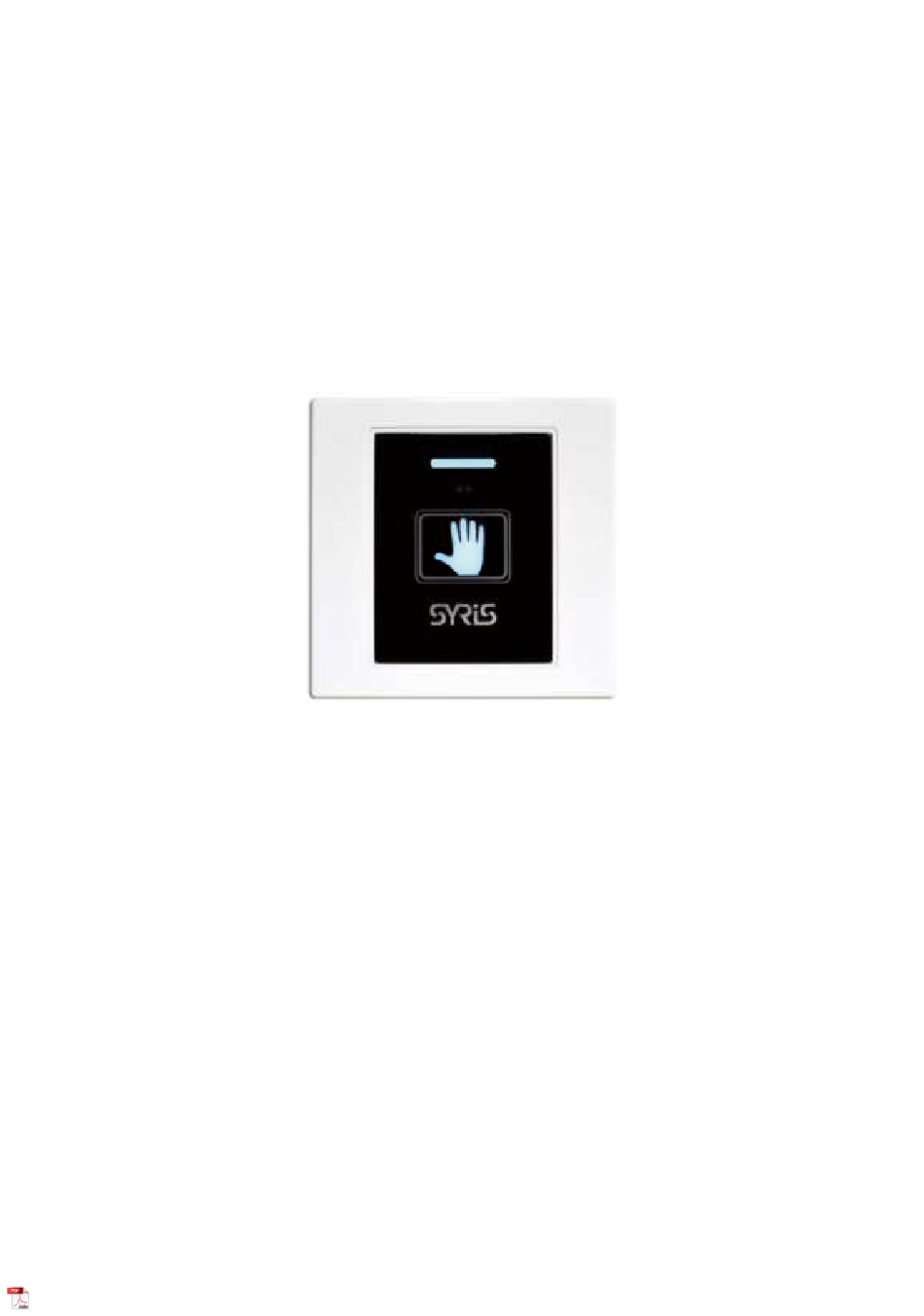

  • Page 1 SYSR86N-HBX1 Standard TCP/ I P Reader Manual Version 01.04 2016/ 04/ 25...

  • Page 2: Features And Specification

    SYSR86N Standard TCP/IP Reader Operation Manual I . Features & Specification Feature:  Standard 86.0(W)x86.0(H) mm  Waving Hand / Touch Panel to Access Door  Support to read standard 13.56MHz RFI D card 、  Relay for door bell light or EM lock ...
  • Page 3 SYSR86N Standard TCP/IP Reader Operation Manual I I . Wiring Diagram...
  • Page 4 SYSR86N Standard TCP/IP Reader Operation Manual I I I . Netw ork Parameter Setting Execute “NET_Discover_V0110.exe” and press to search SY86N series product. Factory default I P is “192.168.1.101”. User can check the MAC address from product sticker with I P to conf irm the device.
  • Page 5 SYSR86N Standard TCP/IP Reader Operation Manual Double click I P (192.168.1.101) to open the web configure page(http:/ / 192.168.1.101) Default login I D / Passw ord : admin / admin...
  • Page 6 SYSR86N Standard TCP/IP Reader Operation Manual Default Net Mode is the same as the following. User can modify Net Mode and other parameters. I f device cannot communicate properly after setting, user can reset NET module via Micro USB. Communication Parameter Factory Default Serial Configure 230400,8,n,1...
  • Page 7 SYSR86N Standard TCP/IP Reader Operation Manual I V. Netw ork Mode Sw itch 、 、 、 86N series device support 4 network modes: Dual mode ETH(Ethernet) Wi-Fi AP Wi-Fi client. Default Ethernet (DHCP) + Wi-Fi AP mode ETH-SERI AL Ethernet only ( Factory Default WI FI (CLI ENT)-SERI AL Wi-Fi client mode...
  • Page 8 SYSR86N Standard TCP/IP Reader Operation Manual ： Wi-Fi client mode 86N can be set to communicate via Wireless AP without Ethernet. SSI D : Enter the SSI D from AP you will connect to network. Scan : User can scan AP in range of 86N and select one to connect. But user cannot scan the AP after changing default network mode (Ethernet only) to Wi-Fi (Client).
  • Page 9 SYSR86N Standard TCP/IP Reader Operation Manual ： 3. Wi-Fi AP mode Setup 86N as AP(Wireless Access Point) for client device to communicate. This mode is usually for setting device. SSI D : Setup 86N device’s SSI D. Encrypt Type : Select Encrypt Type for the AP. Passw ord : Setting 86N device’s Wi-Fi password.
  • Page 10 SYSR86N Standard TCP/IP Reader Operation Manual ： 4. Default mode Ethernet (DHCP) + Wi-Fi AP mode. ， I t’s Dual-Mode ( Ethernet and Wi-Fi AP but Ethernet only support DHCP.) SSI D : Setup 86N device’s SSI D. Passw ord : Setting 86N device’s Wi-Fi password.

  • Page 11: Usb Connection

    SYSR86N Standard TCP/IP Reader Operation Manual V. USB Connection Setup 86N parameter via Micro USB. Micro USB 1. I nstall USB driver ”CDC_USB_Driver_VCP_V1.4.0_Setup.exe” 2. System will generate a virtual COM port. For example. Check port in device manager.(below picture is COM 3)
  • Page 12 SYSR86N Standard TCP/IP Reader Operation Manual User also can update driver manually. The driver is saved in the folder that is same as following. 3. Get device Model information and serial number by using V7 Tools with correct COM port. 4.
  • Page 13 SYSR86N Standard TCP/IP Reader Operation Manual VI . V7 Tools Tool Parameter Setting Basic: 、 Basic: Get device serial number device I D and f irmware version Warm Start: Reboot 86N I nitial: Restore 86N to factory default (I t is NOT including network setting). NET I nitial (6 sec): Restore network parameter of 86N to Default mode.
  • Page 14 SYSR86N Standard TCP/IP Reader Operation Manual Reader Set I nterface : Setup reader’s communication interface. Default is “Wiegand & RS485”. Set Message Mode : Click on the option active to enable message mode setting. User can setup 86N message display on panel. Card LED: Time for read card LED ON, default is 30 x 10ms Card Beep: Time for read card beep on, default is 30 x 10ms I SO14443A/ B/ I SO15693...
  • Page 15 SYSR86N Standard TCP/IP Reader Operation Manual 86 Series-Touch I R Sensor: HF/ LF Read : Setup read card mode ： Auto Read card automatically. Users do not have to touch 86N panel or trigger I R sensor. ： Touch Key Only read card when device panel is touched.
  • Page 16 　 Turn off the function to read Active RFI D tag This parameter should use with SYRIS exciter, default values are “0” means disable. If this Exciter I D function enable, reader will only receive tag’s signal which include set exciter ID.
  • Page 17 SYSR86N Standard TCP/IP Reader Operation Manual DI 3/ DO4 : Setup the contact mode ( DI 3 or DO4 ) ： DI 3 Setup the contact does work as DI 3 (Default) ： DO4 RS485 Setup the contact does work as DO4. I t is triggered via RS485. ：...
