Syris SYSR86N-HBX1 Manual

Standard tcp/ip reader
Hide thumbs Also See for SYSR86N-HBX1:

Advertisement

Quick Links

Download this manual

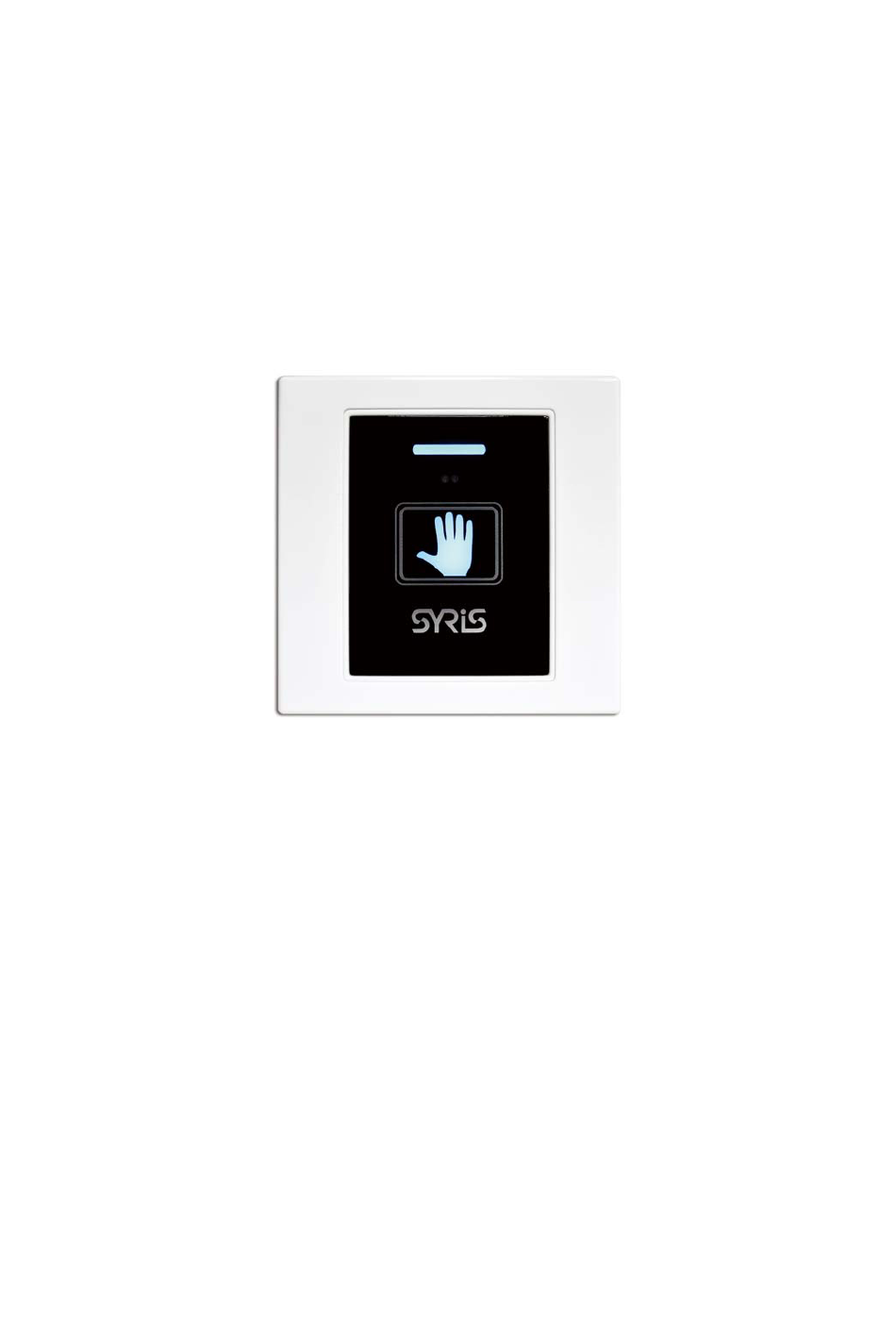

SYSR86N-HBX1
Standard TCP/IP Reader
Manual
Version 01.04
2016/04/25

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYSR86N-HBX1 and is the answer not in the manual?

Questions and answers

Related Manuals for Syris SYSR86N-HBX1

Summary of Contents for Syris SYSR86N-HBX1

  • Page 1 SYSR86N-HBX1 Standard TCP/IP Reader Manual Version 01.04 2016/04/25...

  • Page 2: Features And Specification

    SYSR86N Standard TCP/IP Reader Operation Manual I. Features & Specification Feature: Standard 86.0(W)x86.0(H) mm  Waving Hand / Touch Panel to Access Door  Support to read standard 13.56MHz RFID card  Relay for door bell、light or EM lock  Quick Setup via Micro USB ...

  • Page 3: Wiring Diagram

    SYSR86N Standard TCP/IP Reader Operation Manual II. Wiring Diagram...

  • Page 4: Network Parameter Setting

    SYSR86N Standard TCP/IP Reader Operation Manual III. Network Parameter Setting Execute “NET_Discover_V0110.exe” and press to search SY86N series product. Factory default IP is “192.168.1.101”. User can check the MAC address from product sticker with IP to confirm the device.
  • Page 5 SYSR86N Standard TCP/IP Reader Operation Manual Double click IP (192.168.1.101) to open the web configure page(http://192.168.1.101) Default login ID / Password : admin / admin...
  • Page 6 SYSR86N Standard TCP/IP Reader Operation Manual Default Net Mode is the same as the following. User can modify Net Mode and other parameters. If device cannot communicate properly after setting, user can reset NET module via Micro USB. Communication Parameter Factory Default Serial Configure 230400,8,n,1...
  • Page 7 SYSR86N Standard TCP/IP Reader Operation Manual IV. Network Mode Switch 86N series device support 4 network modes: Dual mode、ETH(Ethernet)、Wi-Fi AP、Wi-Fi client. Default Ethernet (DHCP) +Wi-Fi AP mode ETH-SERIAL Ethernet only (Factory Default) WIFI(CLIENT)-SERIAL Wi-Fi client mode WIFI(AP)-SERIAL Wi-Fi AP mode 1.
  • Page 8 SYSR86N Standard TCP/IP Reader Operation Manual Wi-Fi client mode：86N can be set to communicate via Wireless AP without Ethernet. SSID: Enter the SSID from AP you will connect to network. Scan : User can scan AP in range of 86N and select one to connect. But user cannot scan the AP after changing default network mode (Ethernet only) to Wi-Fi (Client).
  • Page 9 SYSR86N Standard TCP/IP Reader Operation Manual 3. Wi-Fi AP mode：Setup 86N as AP(Wireless Access Point) for client device to communicate. This mode is usually for setting device. SSID: Setup 86N device’s SSID. Encrypt Type : Select Encrypt Type for the AP. Password: Setting 86N device’s Wi-Fi password.
  • Page 10 SYSR86N Standard TCP/IP Reader Operation Manual 4. Default mode：Ethernet (DHCP) +Wi-Fi AP mode. It’s Dual-Mode ( Ethernet and Wi-Fi AP，but Ethernet only support DHCP.) SSID: Setup 86N device’s SSID. Password: Setting 86N device’s Wi-Fi password.

  • Page 11: Usb Connection

    SYSR86N Standard TCP/IP Reader Operation Manual V. USB Connection Setup 86N parameter via Micro USB. Micro USB 1. Install USB driver ”CDC_USB_Driver_VCP_V1.4.0_Setup.exe” 2. System will generate a virtual COM port. For example. Check port in device manager.(below picture is COM 3)
  • Page 12 SYSR86N Standard TCP/IP Reader Operation Manual User also can update driver manually. The driver is saved in the folder that is same as following. 3. Get device Model information and serial number by using V7 Tools with correct COM port. 4.
  • Page 13 SYSR86N Standard TCP/IP Reader Operation Manual VI. V7 Tools Tool Parameter Setting Basic: Basic: Get device serial number、device ID and firmware version Warm Start: Reboot 86N Initial: Restore 86N to factory default (It is NOT including network setting). NET Initial (6 sec): Restore network parameter of 86N to Default mode. User has to setup by referring the following information after restore device to factory default.
  • Page 14 SYSR86N Standard TCP/IP Reader Operation Manual Reader Set Interface: Setup reader’s communication interface. Default is “Wiegand & RS485”. Set Message Mode: Click on the option active to enable message mode setting. User can setup 86N message display on panel. Card LED: Time for read card LED ON, default is 30 x 10ms Card Beep: Time for read card beep on, default is 30 x 10ms ISO14443A/B/ISO15693 : Same Card Delay: Setup time gap for reading the same card, default is 10 x100ms (1 second)
  • Page 15 SYSR86N Standard TCP/IP Reader Operation Manual 86 Series-Touch IR Sensor: HF/LF Read : Setup read card mode Auto：Read card automatically. Users do not have to touch 86N panel or trigger IR sensor. Touch Key：Only read card when device panel is touched. Flash card time is within 10 seconds. The LED indicator will turns red in the period.
  • Page 16 　Off：Turn off the function to read Active RFID tag Exciter ID: This parameter should use with SYRIS exciter, default values are “0” means disable. If this function enable, reader will only receive tag’s signal which include set exciter ID.
  • Page 17 SYSR86N Standard TCP/IP Reader Operation Manual DI3/DO4 : Setup the contact mode ( DI3 or DO4 ) DI3：Setup the contact does work as DI3 (Default) DO4 RS485：Setup the contact does work as DO4. It is triggered via RS485. DO4 Touch Key：The contact does work as DO4. It is triggered by touch key. DO4 IR Sensor：The contact does work as DO4.
