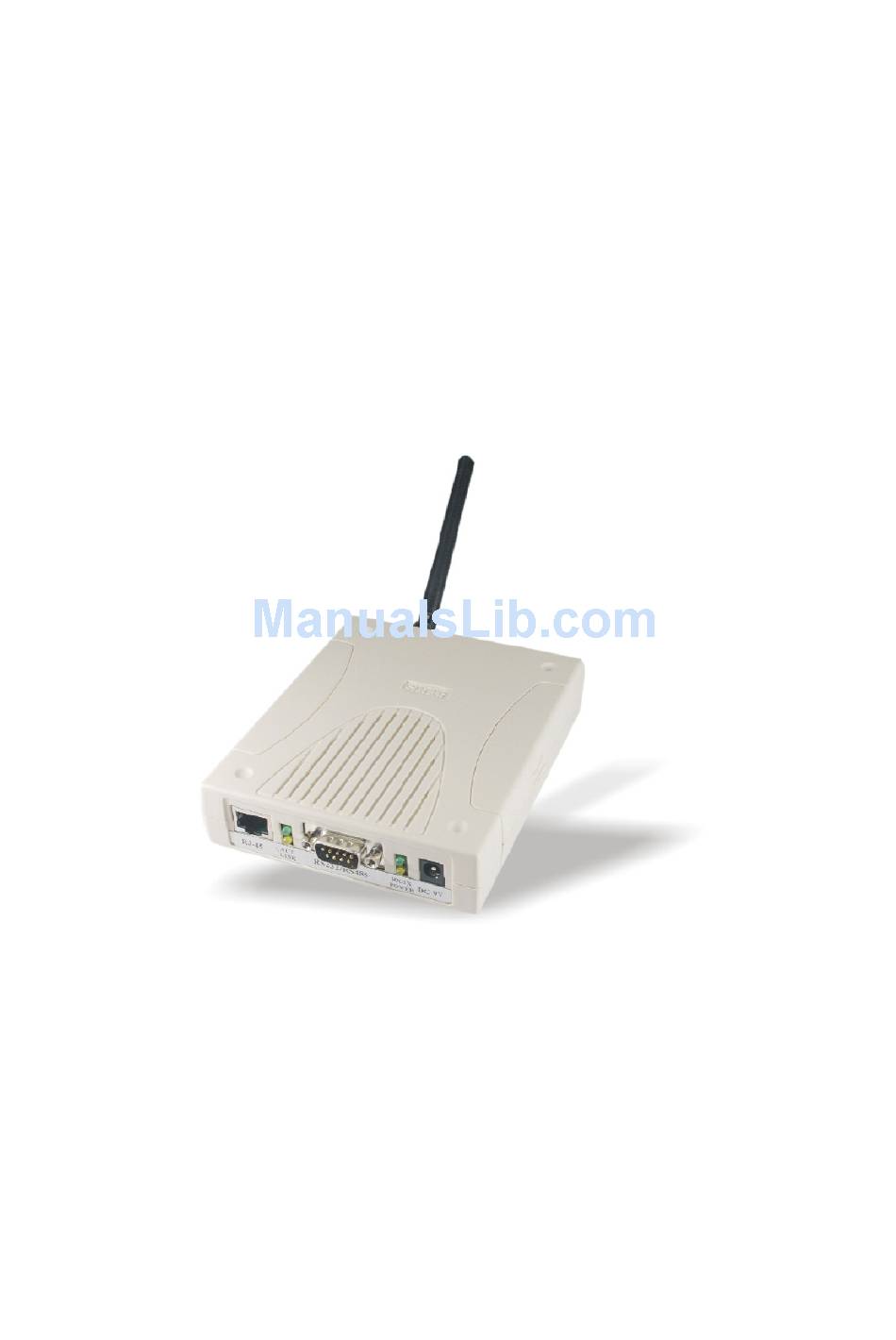

- Page 1 SYRD245-1W 2.45 GHz RFID Reader User Manual Version 1.40 2011/10/19...
- Page 2 SYRD245-1W active RFID Reader User Manual Ⅰ. Product Specification Communication 2.45 GHz Support read and write Frequency 2.40~2.48 GHz Channel RSSI 0-255 0-255 Programmable Set Parameter Multi-LED visual indication RS232 RX, TX RS485 +, - Wiegand formats 26 bits, 34 bits, 42 bits...
- Page 3 SYRD245-1W active RFID Reader User Manual Ⅱ. The Diagram of the System Connection SYRD245-1W Reader can connect with 3 different interfaces：RS-485 or Wiegand or RS-232.
- Page 4 SYRD245-1W active RFID Reader User Manual Ⅲ. Use SYRD245-1W Reader Config software Execute SYRD245_1W_Tools_V0196.exe in “SYRIS Xtive DVD-ROM\SYRD245-1\Utility\”...
- Page 5 SYRD245-1W active RFID Reader User Manual Scan Reader to get reader’s serial number and firmware version. Adjust the ID number and then click “Set Reader ID” to change Reader’s ID. Select communication Baud rate and then click “Set Baud rate” to change Reader’s Baud rate.
- Page 6 10. Set Exciter ID (This function was available in version 2.03 or above.) : This parameter should use with SYRIS exciter, default values are “0000” means disable. If this function enable, reader will only receive tag’s signal which include set exciter ID.
- Page 7 Changes or modifications not expressly approved by SYRIS Technology Corp. Could void the user's authority to operate this equipment.
