Syris SYUR03N-U1 Manual

Uhf tcp/ip fixed reader

Advertisement

Quick Links

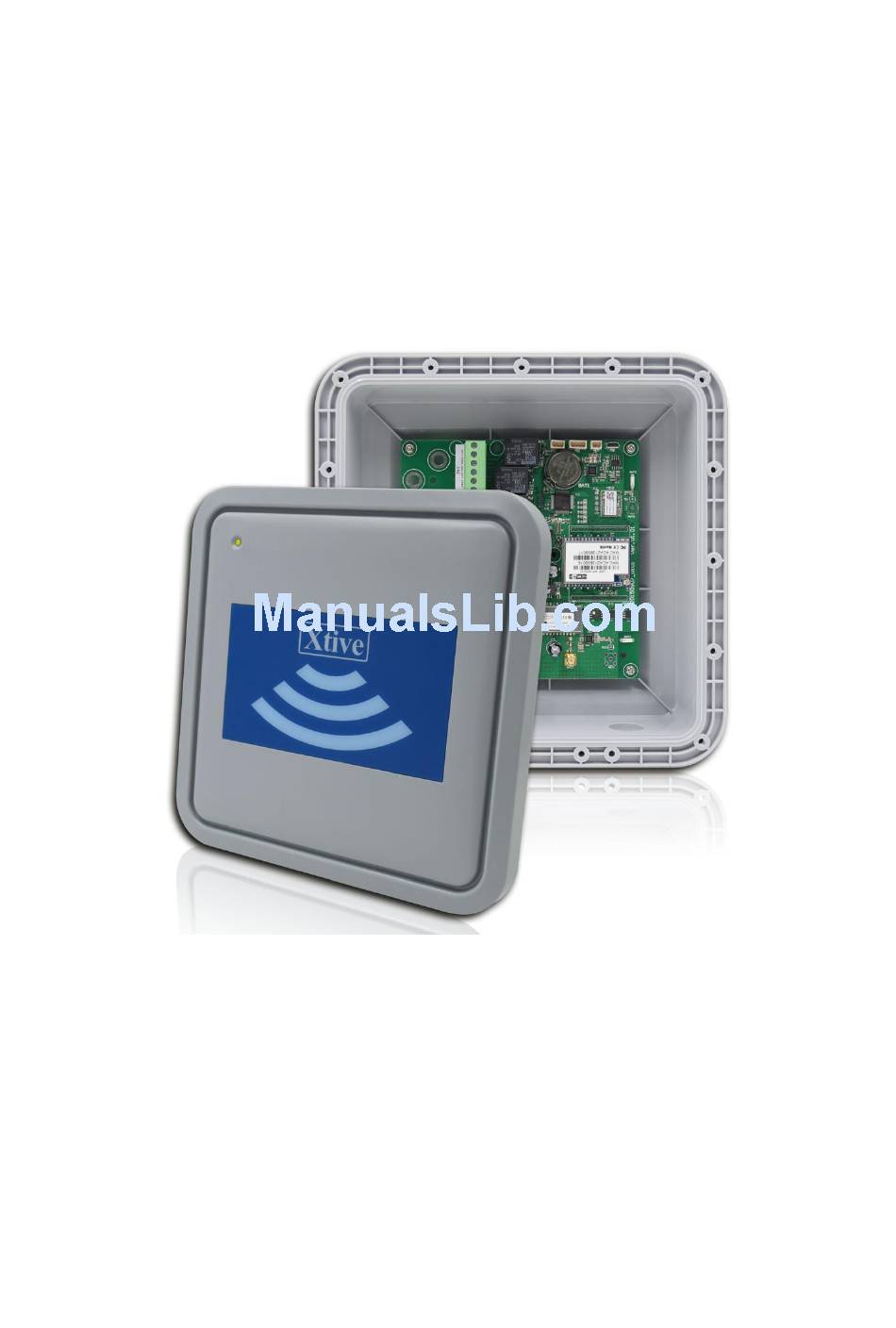

SYUR03N-U1
UHF TCP/IP fixed Reader
Manual
Version 01.02
2016/05/24

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYUR03N-U1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Syris SYUR03N-U1

  • Page 1 SYUR03N-U1 UHF TCP/IP fixed Reader Manual Version 01.02 2016/05/24...
  • Page 2: Features And Specification

    SYUR03N UHF TCP/IP fixed Reader Operation Manual I. Features & Specification Features:  Support for full 860 to 960 MHz UHF RFID carrier frequency range to accommodate worldwide regulations  Compatible with EPC Class 1 Gen 2;ISO-18000-6C  Multi communication interface ...
  • Page 3: Wiring Diagram

    SYUR03N UHF TCP/IP fixed Reader Operation Manual Wiring Diagram...
  • Page 4: Network Parameter Setting

    SYUR03N UHF TCP/IP fixed Reader Operation Manual III. Network Parameter Setting Execute “NET_Discover_V0110.exe” and press to search SYUR03N product. Factory default IP is “192.168.1.101”. User can check the MAC address from product sticker with IP to confirm the device.
  • Page 5 SYUR03N UHF TCP/IP fixed Reader Operation Manual Double click IP (192.168.1.101) to open the web configure page(http://192.168.1.101) Default login ID / Password : admin / admin...
  • Page 6 SYUR03N UHF TCP/IP fixed Reader Operation Manual Default Net Mode is the same as the following. User can modify Net Mode and other parameters. If device cannot communicate properly after setting, user can reset NET module via Micro USB. Communication Parameter Factory Default Serial Configure 230400,8,n,1...
  • Page 7 SYUR03N UHF TCP/IP fixed Reader Operation Manual IV. Network Mode Switch SYUR03N device support 4 network modes: Dual mode、ETH(Ethernet)、Wi-Fi AP、Wi-Fi client. Default Ethernet (DHCP) +Wi-Fi AP mode ETH-SERIAL Ethernet only (Factory Default) WIFI(CLIENT)-SERIAL Wi-Fi client mode WIFI(AP)-SERIAL Wi-Fi AP mode 1.
  • Page 8 SYUR03N UHF TCP/IP fixed Reader Operation Manual Wi-Fi client mode:SYUR03N can be set to communicate via Wireless AP without Ethernet. SSID: Enter the SSID from AP you will connect to network. Scan : User can scan AP in range of SYUR03N and select one to connect. But user cannot scan the AP after changing default network mode (Ethernet only) to Wi-Fi (Client).
  • Page 9 SYUR03N UHF TCP/IP fixed Reader Operation Manual 3. Wi-Fi AP mode:Setup SYUR03N as AP (Wireless Access Point) for client device to communicate. This mode is usually for setting device. SSID: Setup device’s SSID. Encrypt Type : Select Encrypt Type for the AP. Password: Setting device’s Wi-Fi password.
  • Page 10 SYUR03N UHF TCP/IP fixed Reader Operation Manual 4. Default mode:Ethernet (DHCP) +Wi-Fi AP mode. It’s Dual-Mode ( Ethernet and Wi-Fi AP,but Ethernet only support DHCP.) SSID: Setup device’s SSID. Password: Setting device’s Wi-Fi password.
  • Page 11: Usb Connection

    SYUR03N UHF TCP/IP fixed Reader Operation Manual V. USB Connection Setup SYUR03N parameter via micro USB. Micro USB 1. Install USB driver ”CDC_USB_Driver_VCP_V1.4.0_Setup.exe” 2. System will generate a virtual COM port. For example. Check port in device manager.(below picture is COM 3)
  • Page 12 SYUR03N UHF TCP/IP fixed Reader Operation Manual User also can update driver manually. The driver is saved in the folder that is same as following. 3. Get device Model information and serial number by using V7 Tools with correct COM port or TCP connection. 4.
  • Page 13 SYUR03N UHF TCP/IP fixed Reader Operation Manual VI. V7 Tools configuration Common: Get device serial number、device ID and firmware version. Warm Start: Reboot device. Initial: Restore device to factory default (It is NOT including network setting). NET Initial (6 sec): Restore network parameter of device to default mode. User has to setup by referring the following information after restore device to factory default.
  • Page 14 SYUR03N UHF TCP/IP fixed Reader Operation Manual Reader Set Interface: Setup reader’s communication interface. Default is “Wiegand & RS485”. DI/DO SYUR03 support 4 digital inputs and 4 relay outputs. Click “auto test” to test DI/DO command.
  • Page 15 SYUR03N UHF TCP/IP fixed Reader Operation Manual Set ID block/byte: Select correct bank (EPC, TID or USER), address and length to setup SYUR03N auto read data. Auto read: Support read EPC, TID and USER block. (Only EPC is availible now.) Length: Setup auto read data’s length.
  • Page 16 SYUR03N UHF TCP/IP fixed Reader Operation Manual VII. SYUR03N Controller extend slave reader. Extend slave reader via RS-485 1. Connect RS485 wire (4R+ to 4R+, 4R- to 4R-)
  • Page 17 SYUR03N UHF TCP/IP fixed Reader Operation Manual 2. Select “READER” tab to setup interface to RS485. 3. Check controller and reader’s RS485 communication rate are the same (Default is 64 bits). 4. Select “86 Serial” tab to setup “Controller mode” and “RS485 Master Mode”.
