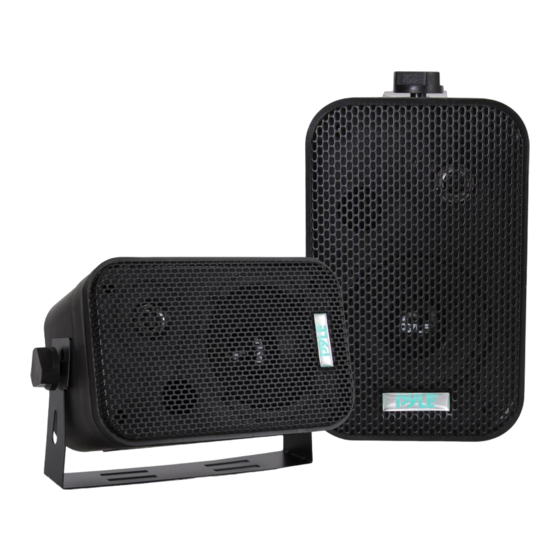

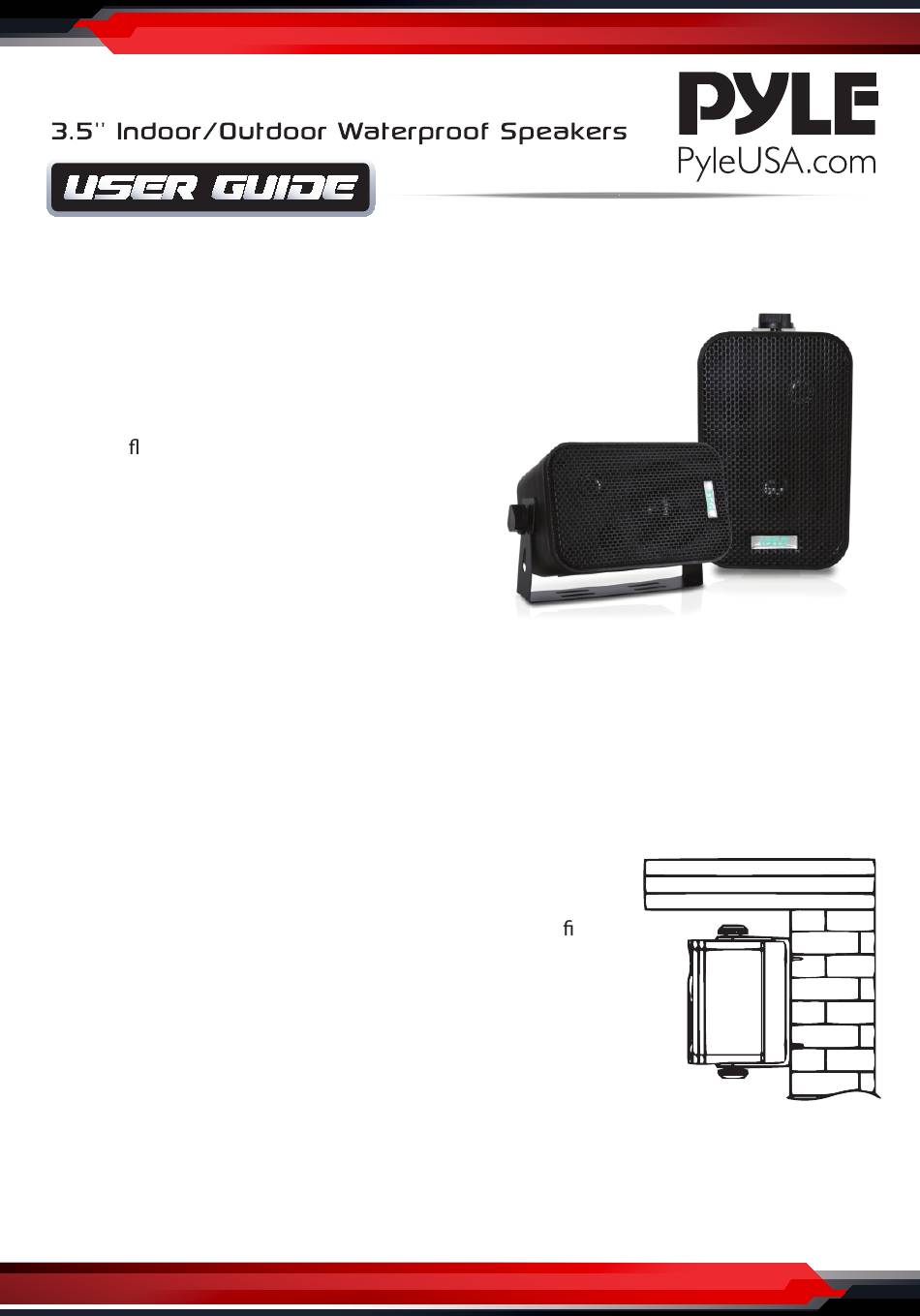

PDWR30B
•
Excellent for Use On Boats/ Marine/ Decks/ Patios/ Poolside/ Outdoors
•
Completely Water Proof
•
3.5'' Aluminum Injection Cone Woofer
•
40 Oz. Magnet Structure
•
1'' High Compliance Myiar Tweeter
•
Capacitor Crossover Network
•
Bass Re ex Vent for Added Bass Response
•
Heavy Duty ASB Construction
•
Quick Connect/ Disconnect Speaker Terminals
•
Unique Spring Loaded Mounting System
•
Removable Rustproof Mesh Grills
•
Power: 150Watts RMS/ 300Watts Peak
•
Frequency Response: 60-20K Hz
•
Impedance: 4 Ohms
•
Dimensions: 4.75''(W)x 7.25''(H) x 4.75''(D)
HOW TO INSTALL
MOUNTING THE BRACKET
1. Remove the bracket knobs and the bracket from the speaker.
2. Hold the bracket up to the mounting surface. "PDWR30B
Waterproof Speakers" can be mounted either horizontally
or verticalIy, hold the bracket so that the speaker wire ts
through the large, circular wire hole in the bracket, align the
bracket to be square with the surrounding (Use A level for
accuracy)
3. Mark the locations of the three shaped screw holes, use all of
the holes.
4. DrIII pllot holes Into the mounting surface.
5. Gently pull the speaker wire though the wire hole in the center of the mounting bracket,
so that the holes all line up.
6. Use your hardware to attach the bracket to the mounting surface.
www.PyleUSA.com
MOUNTING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pyle PDWR30B
Summary of Contents for Pyle PDWR30B
- Page 1 MOUNTING 1. Remove the bracket knobs and the bracket from the speaker. 2. Hold the bracket up to the mounting surface. "PDWR30B Waterproof Speakers" can be mounted either horizontally or verticalIy, hold the bracket so that the speaker wire ts...
- Page 2 FINAL ADJUSTMENTS 1. After checking that the speaker is in-phase and works correctly, angle the speaker for the best sound. 2. Hand tighten rhe bracket knobs only, power tools may over-tighten rhe knob, and strip the threads of the insert. 3.
