PDWR30B-PDWR30W
Visit Our Website
WEATHERPROOF SPEAKER SYSTEMS
SCAN ME
PyleUSA.com
Features:
• Excellent for use on Boats Marinas, Decks,
Patios, Poolside, Outdoors, Etc.
• Completely Water Proof
• 3 1/2" Aluminum Injection Cone Woofer
• 40 OZ. Magnet Structure
• 1"High Compliance Myiar Tweeter
• Capacitor Crossover Network
• Bass Re ex Vent for added Bass Response

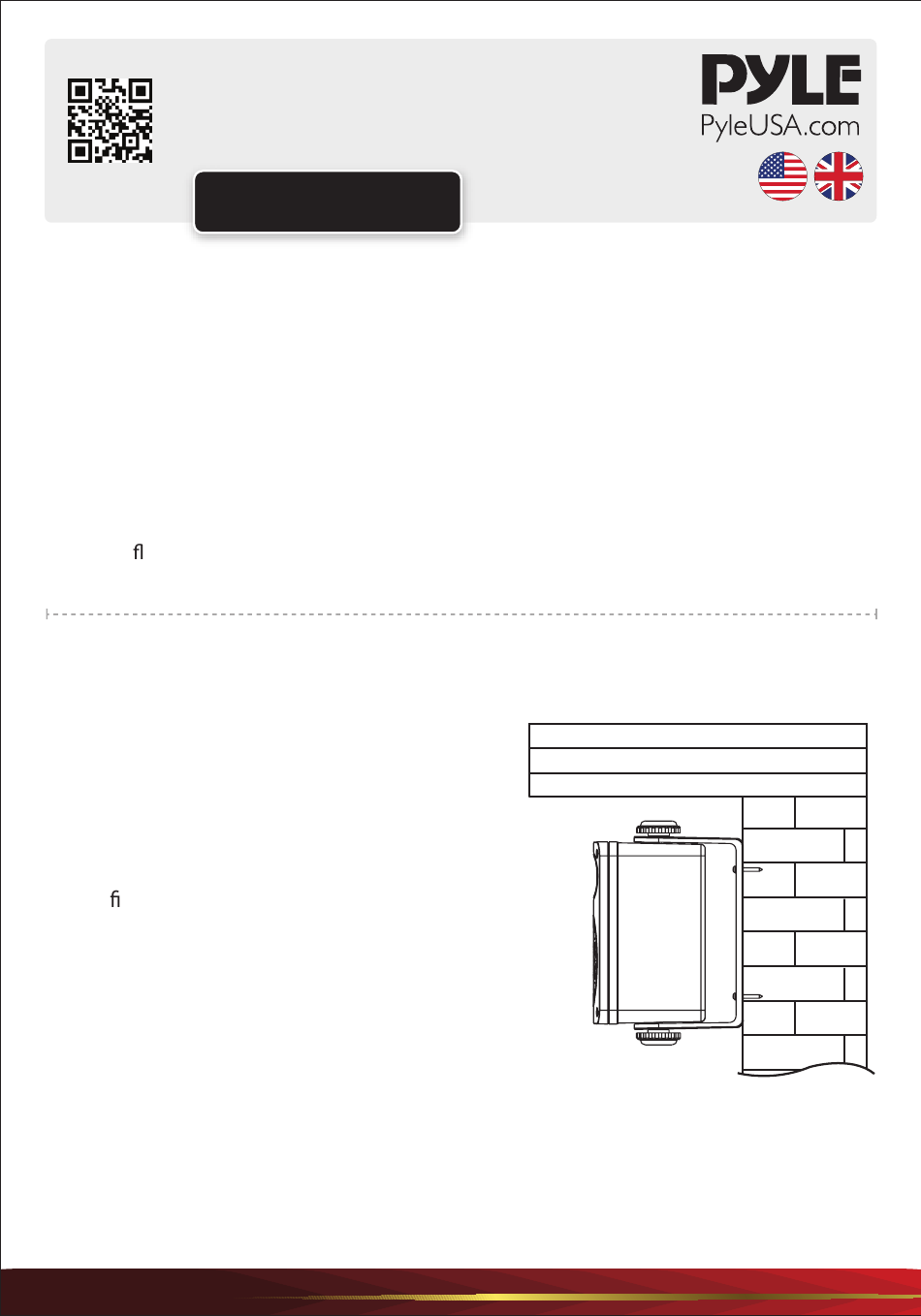

Installation
MOUNTING THE BRACKET
1. Remove the bracket knobs and the bracket
from the speaker.
2. Hold the bracket up to the mounting surface.
"PYLE" can be mounted either horizontally
or vertically. Hold the bracket so that the speaker
wire ts through the large, circular wire hole in
the bracket. Align the bracket to be square with
the surrounding. (Use a level for accuracy)
3. Mark the locations of the three shaped screw holes.
Use all of the holes.
4. Drill pilot holes into the mounting surface.
5. Gently pull the speaker wire through the wire hole
in the center of the mounting bracket.
Align the bracket so that the holes all line up.
6. Use your hardware to attach the bracket to the mounting surface.
www.PyleUSA.com
INDOOR/OUTDOOR
USER GUIDE
• Heavy Duty ABS Constrution
• Quick Connect/Disconnect Speaker
Terminals
• Unique Spring Loaded Mounting System
• Removable Rustproof Mesh Grills
• Power: 150 Watts RMS/300 Watts Peak
• Frequency Response: 60-20K HZ
• Impedance: 4 Ohms
• Dimensions:12.07 cm x 18.42 cm x 12.07
cm/4.75 x 7.25 x 4.75 inches
MOUNTING
ENG
